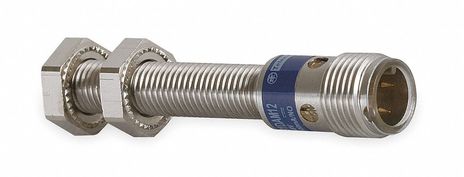

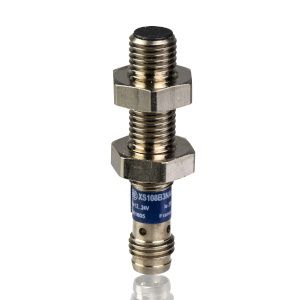

Square D XS508B1NAM8

Name: Square D XS508B1NAM8
Brand: Square D
SKU: CS4814112
Availability: OutOfStock

SKU: CS4814112MPN: XS508B1NAM8

Inductive proximity sensors XS, inductive sensor XS5 M8, L42mm, stainless, Sn1.5 mm, 12...24 VDC, M8

Product Details

Inductive proximity sensor

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	-
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Discrete Output Type	NPN
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	10 ms
Maximum Delay Recovery	0.1 ms
Maximum Delay Response	0.1 ms
Operating Zone	0-1.2 mm
Output Circuit Type	DC
Product Certifications	UL# #CSA
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Design	cylindrical M8
Sensor Name	XS5
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	42 mm
Thread Type	M8 x 1
Type Of Output Signal	discrete
Wiring Technique	3-wire
