Square D XS518B1DAM12

Name: Square D XS518B1DAM12
Brand: Square D
SKU: CS1674076
Availability: OutOfStock

SKU: CS1674076MPN: XS518B1DAM12

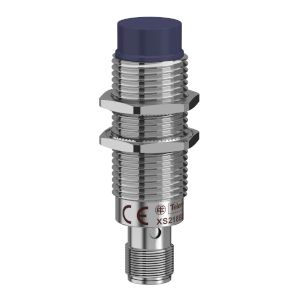

Inductive proximity sensors XS, inductive sensor XS5 M18, L64mm, brass, Sn5mm, 12..48VDC, M12

Product Details

Inductive Sensor XS5 M12 - L62mm - Brass - Sn2mm - 12..48VDC - M12

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	-
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	10 ms
Maximum Delay Recovery	0.2 ms
Maximum Delay Response	0.15 ms
Operating Zone	0-4 mm
Output Circuit Type	DC
Product Certifications	UL# #CSA# #CCC
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Design	cylindrical M18
Sensor Name	XS5
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	64 mm
Thread Type	M18 x 1
Type Of Output Signal	discrete
Wiring Technique	2-wire
