Square D XS1L04PA310S

Name: Square D XS1L04PA310S
Brand: Square D
SKU: CS4814098
Availability: OutOfStock

SKU: CS4814098MPN: XS1L04PA310S

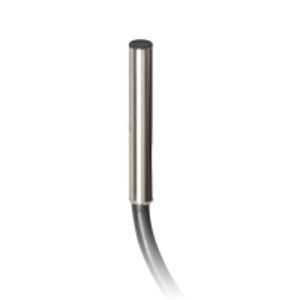

Inductive proximity sensors XS, inductive sensor XS1 Ø4, L42mm, brass, Sn1mm, 5..24VDC, M8

Product Details

Inductive sensor XS1 Ø4, L41mm, brass, Sn1mm, 5..24VDC, M8

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	-
Discrete Output Function	1 NO
Discrete Output Type	PNP
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	5 ms
Maximum Delay Recovery	1 ms
Maximum Delay Response	1 ms
Operating Zone	0-0.8 mm
Output Circuit Type	DC
Product Certifications	CSA# #UL
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Design	cylindrical Ø 4 mm plain
Sensor Name	XS1
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	42 mm
Type Of Output Signal	discrete
Wiring Technique	3-wire
