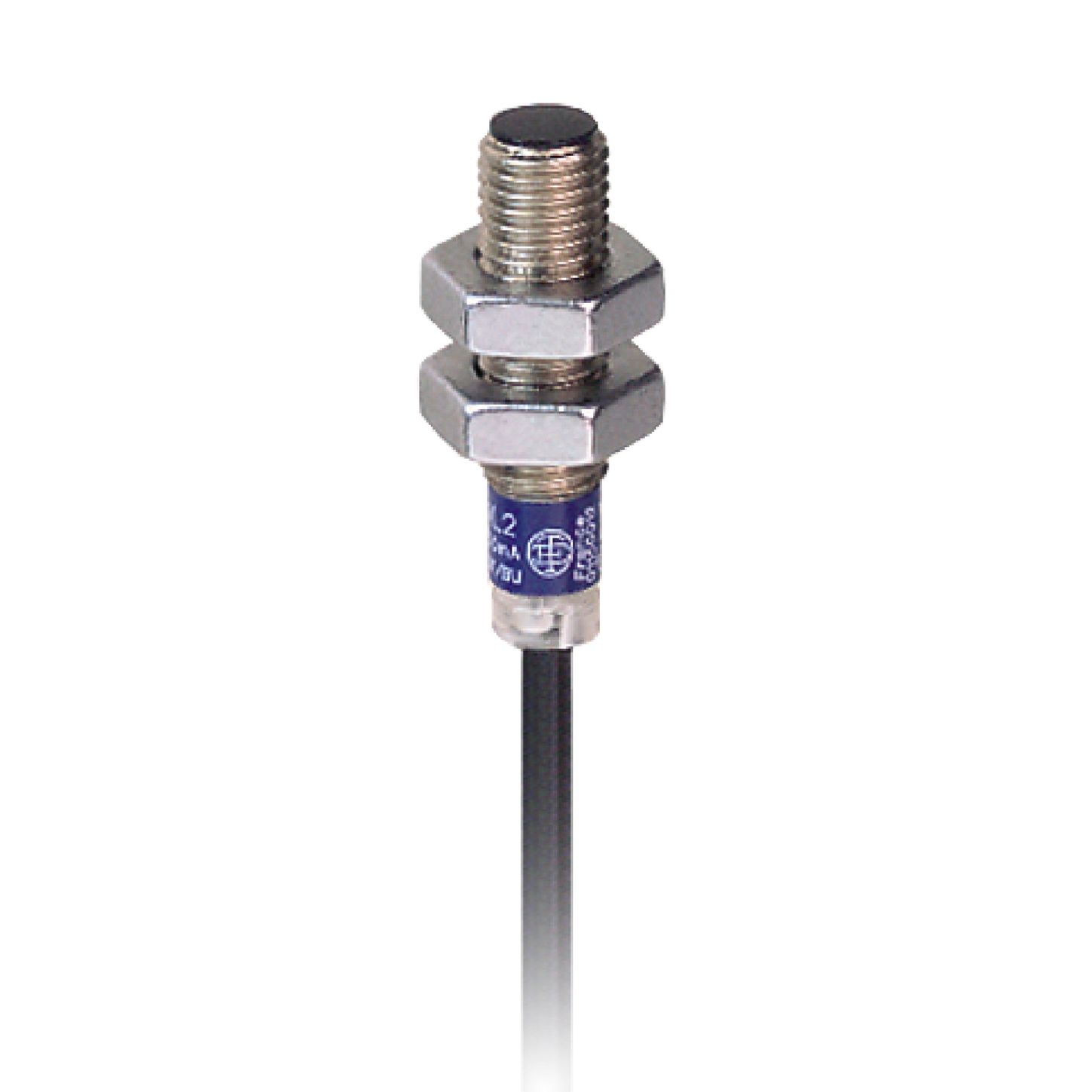

Square D XS608B1PAL2

Name: Square D XS608B1PAL2
Brand: Square D
SKU: CS638830
Availability: OutOfStock

SKU: CS638830MPN: XS608B1PAL2

Inductive proximity sensors XS, inductive sensor XS6 M8, L51mm, stainless, Sn2.5 mm, 12...48 VDC, cable 2 m

Product Details

inductive sensor XS6 M8 - L51mm - stainless - Sn2.5mm - 12..48VDC - cable 2m

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	3 x 0.11 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Discrete Output Type	PNP
Enclosure Material	stainless steel 303
Front Material	PPS
Marking	CE
Marking 1	CE
Material	stainless steel
Maximum Delay First Up	10 ms
Maximum Delay Recovery	0.2 ms
Maximum Delay Response	0.2 ms
Operating Zone	0-2 mm
Output Circuit Type	DC
Product Certifications	UL# #CSA
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensing Range	> 0…2.5 mm
Sensor Design	cylindrical M8
Sensor Name	XS6
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	51 mm
Thread Type	M8 x 1
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	3-wire
