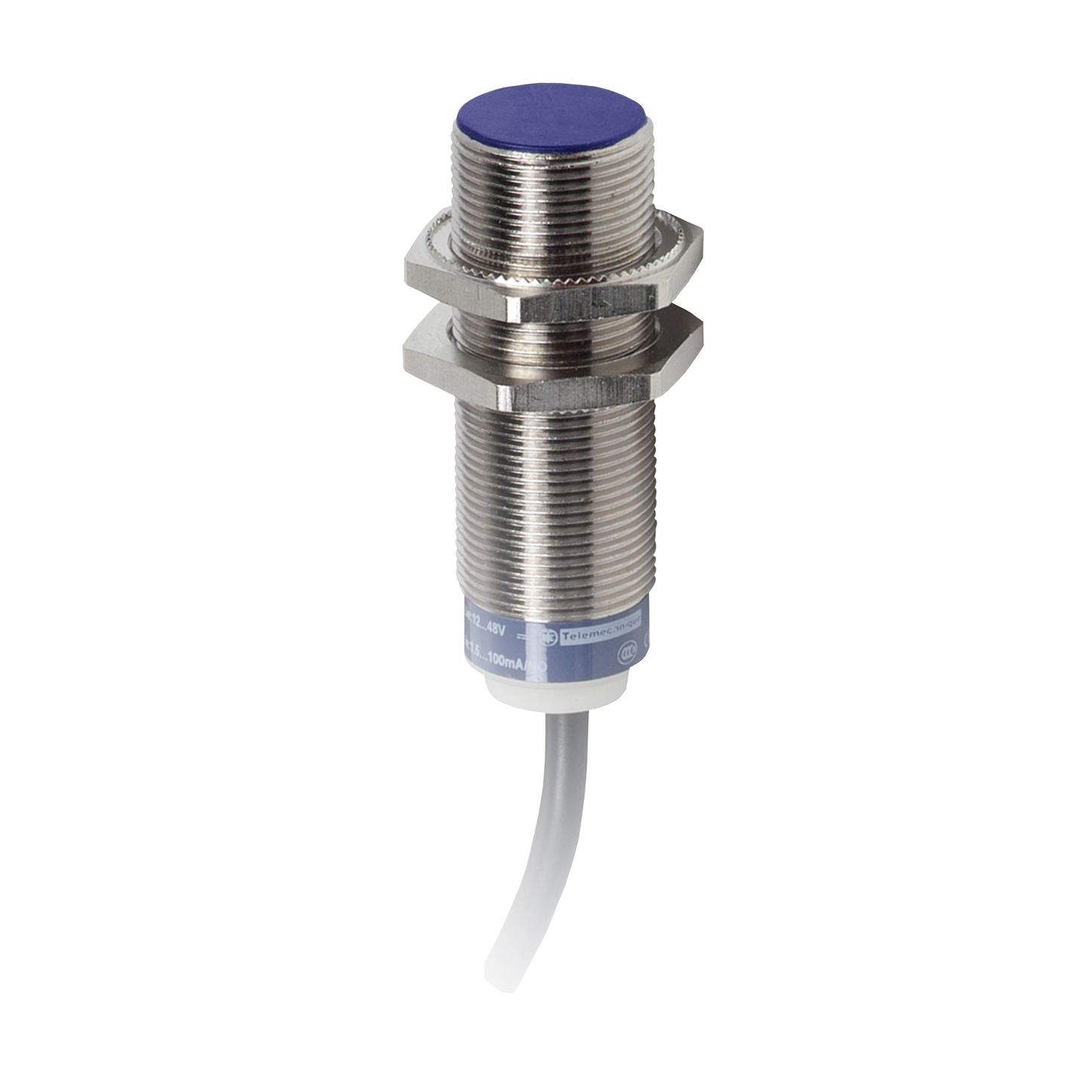

Square D XS518B1DAL2

Name: Square D XS518B1DAL2
Brand: Square D
SKU: CS1674075
Availability: OutOfStock

SKU: CS1674075MPN: XS518B1DAL2

Inductive proximity sensors XS, inductive sensor XS5 M18, L56mm, brass, Sn5mm, 12..48VDC, cable 2m

Product Details

Inductive sensor XS5 M18 - L62mm - brass - Sn5mm - 12..48VDC - cable 2m

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	2 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	-
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	10 ms
Maximum Delay Recovery	0.2 ms
Maximum Delay Response	0.15 ms
Operating Zone	0-4 mm
Output Circuit Type	DC
Product Certifications	UL# #CCC# #CSA
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Design	cylindrical M18
Sensor Name	XS5
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	56 mm
Thread Type	M18 x 1
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	2-wire
