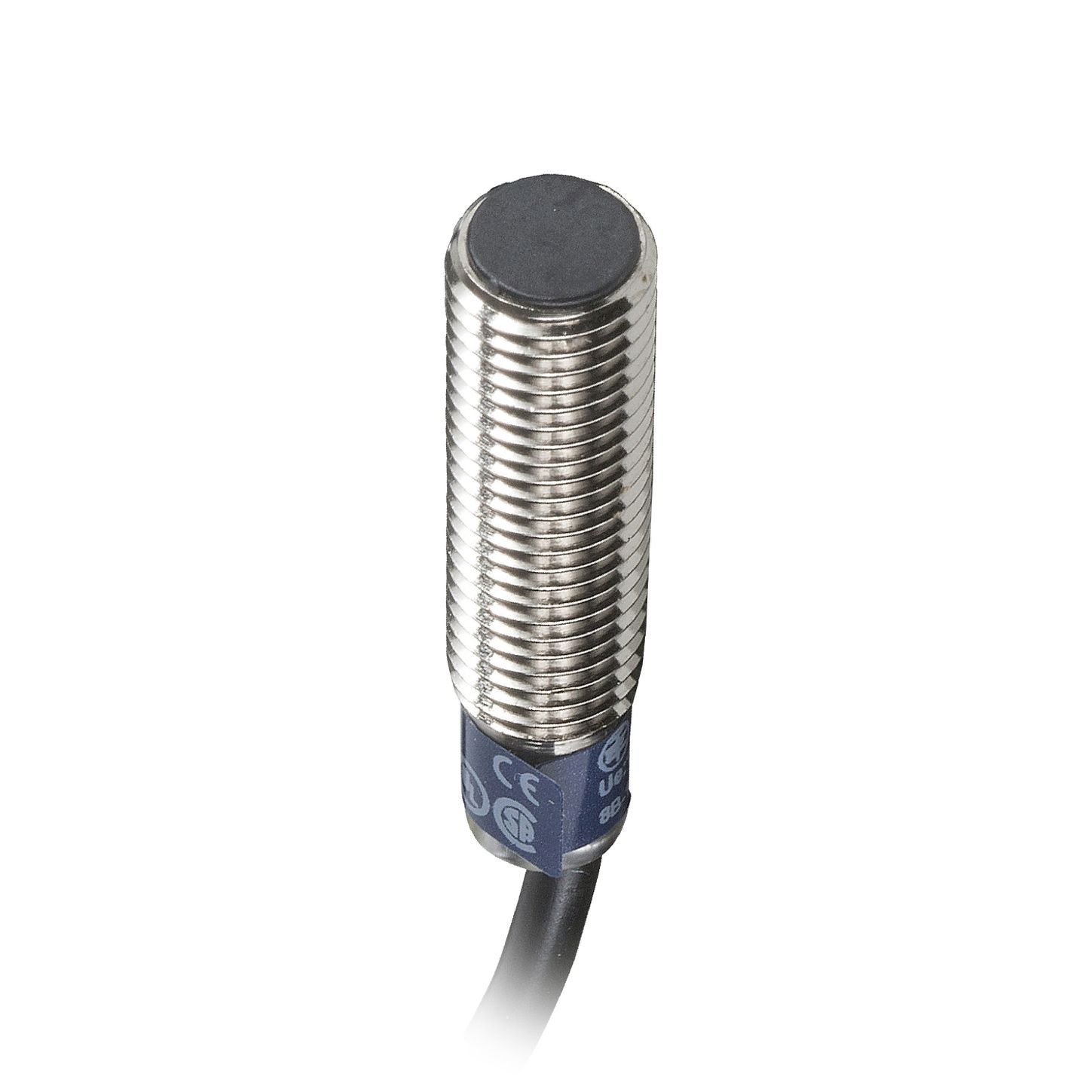

Square D XS508B1PAL2

Name: Square D XS508B1PAL2
Brand: Square D
SKU: CS865388
Availability: OutOfStock

SKU: CS865388MPN: XS508B1PAL2Alternate Part #: SQD-XS508B1PAL2

Inductive proximity sensors XS, inductive sensor XS5 M8, L33mm, stainless, Sn1.5 mm, 12...24 VDC, cable 2 m

Product Details

Inductive proximity sensors XS, inductive sensor XS5 M8, L33mm, stainless, Sn1.5 mm, 12...24 VDC, cable 2 m

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	3 x 0.11 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	-
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Discrete Output Type	PNP
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	10 ms
Maximum Delay Recovery	0.1 ms
Maximum Delay Response	0.1 ms
Operating Zone	0-1.2 mm
Output Circuit Type	DC
Product Certifications	CSA# #UL
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Design	cylindrical M8
Sensor Name	XS5
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	33 mm
Thread Type	M8 x 1
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	3-wire
