Turck RI360P0-EQR24M0-HESG25X3-H1181

Name: Turck RI360P0-EQR24M0-HESG25X3-H1181
Brand: Turck
SKU: CS3832841
Price: 830.86 USD
Availability: OutOfStock

SKU: CS3832841MPN: RI360P0-EQR24M0-HESG25X3-H1181Alternate Part #: 1590911UPC/EAN: 4047101313925

1590911 - MULTITURN

$830.86

Unit

Available on backorder

Quantity

remove

add

Product Details

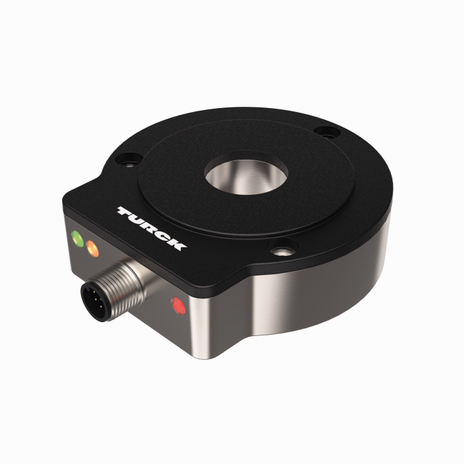

Contactless Encoder with Stainless Steel Housing

SSI

Premium Line

SSI output
25 bit, Gray-coded
SSI clock rate: 62.5 KHz … 1 MHz
Single or multiturn, length of data frame and bit coding parametrizable via PACTware
Default settings: Singleturn Bit 0 … Bit 15, Multiturn Bit 16 … Bit 21, Status Bit 22 … Bit 24
Zero point, sync./async. operating mode adjustable via Easy Teach
Compatible with all standard SSI masters
In sync. mode, jitter \< 5 µs required on the master side
Immune to electromagnetic interference

Ambient Temperature	-25…+85 °C
Communication Protocol	SSi

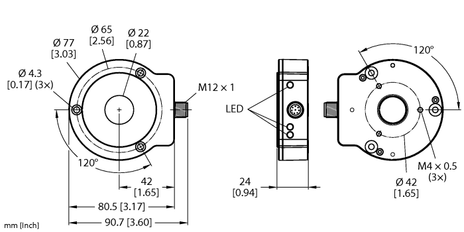

Construction Size	81 x 78 x 24 mm
Customs Tariff Number	90318080000.0000
Ecl Ss Code V5 1 4	27270501 -/- Encoder, absolute
Electrical Connection	Connector, M12 × 1
Encoder Line	Premium-Line
Flange Type	Flange without mounting element
Housing Material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/PA12-GF30
Measuring Range	0…360°
Operating Voltage	15…30 VDC
Output Type	Absolute semi-multiturn
Protection Class	IP68/IP69K
Shaft Diameter D Mm	6 mm6.35 mm9.525 mm10 mm12 mm12.7 mm14 mm15.875 mm19.05 mm20 mm
Shaft Type	Hollow shaft
Technology	Contactless
