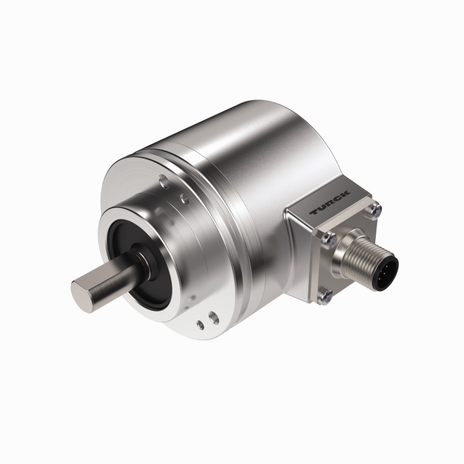

Turck RM-103T10C-5C13S12M-H1181/N16
SKU: CS3854443MPN: RM-103T10C-5C13S12M-H1181/N16Alternate Part #: 1545892
1545892 - MULTITURN
$1,667.39
UnitAvailable on backorder
Product Details
Absolute Rotary Encoder - Multiturn
Industrial Line
- Ø 58 mm clamping flange
- Solid shaft, Ø 10mm x 20mm
- Optical measuring principle
- Shaft material, stainless steel
- Protection class IP65 on shaft side
- -40…+85 °C
- Max. 6000 rpm
- 10-30 VDC
- SSI Binary
- Male connector, M12 x 1, 8-pole
- Singleturn, 13-bit resolution
- Multiturn, 12-bit resolution
Attributes
| Ambient Temperature | -40…+85 °C |
| Communication Protocol | SSi |
| Ecl Ss Code V5 1 4 | 27270501 -/- Encoder, absolute |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 58 mm |
| Flange Type | Clamping flange |
| Housing Material | Die-cast zinc |
| Operating Voltage | 10…30 VDC |
| Output Type | Absolute multiturn |
| Protection Class | IP67 |
| Protection Class Shaft | IP65 |
| Shaft Diameter D Mm | 10 mm |
| Shaft Type | Solid shaft |
| Technology | Optical |
Specifications
| SKU | CS3854443 |
|---|---|
| MPN | RM-103T10C-5C13S12M-H1181/N16 |
| Alternate Part # | 1545892 |
