Turck

Turck RI360P0-EQR24M0-IOLX2-H1141

SKU: CS3832843MPN: RI360P0-EQR24M0-IOLX2-H1141Alternate Part #: 1590978UPC/EAN: 4047101404340

1590978 - MULTITURN

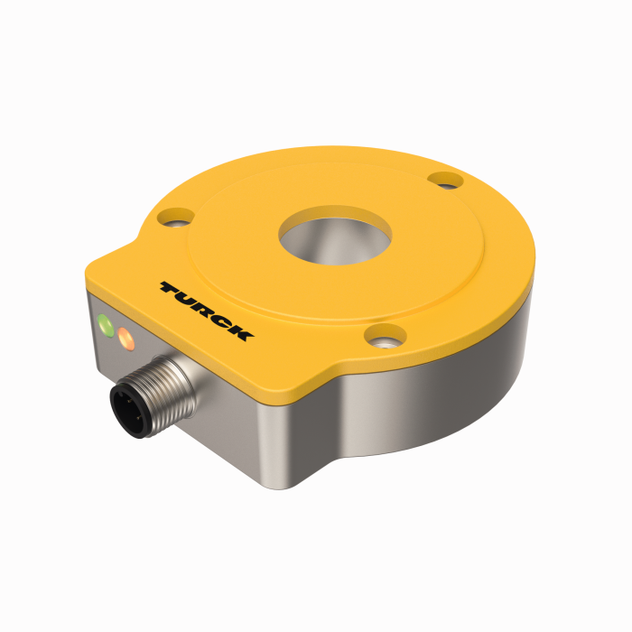

Turck RI360P0-EQR24M0-IOLX2-H1141, RI360P0-QR24M0-IOLX2-H1141, RI360P0-QR24M0-IOLX2-H1141/3GD
Turck RI360P0-EQR24M0-IOLX2-H1141

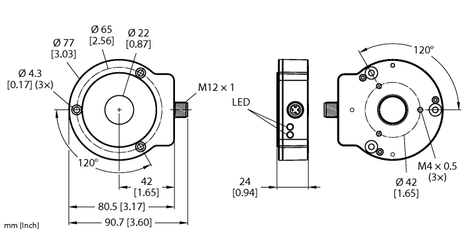

Turck RI360P0-EQR24M0-IOLX2-H1141, RI360P0-QR24M0-IOLX2-H1141, RI360P0-QR24M0-IOLX2-H1141/3GD
Turck RI360P0-EQR24M0-IOLX2-H1141
$720.29
Unit
Available on backorder
remove
add

Product Details

Contactless Encoder with Stainless Steel Housing

IO-Link

Premium Line

  • Compact, rugged housing
  • Active face, plastic PA12-GF30
  • Housing, stainless steel V4A (1.4404)
  • Status displayed via LED
  • Immune to electromagnetic interference
  • 16 bits singleturn
  • Process value in 32 bit IO-Link telegram
  • 3 error bits
  • 16 bits singleturn
  • 13 bits multiturn
  • 15…30 VDC
  • M12 × 1 male connector, 4-pin

Attributes

Ambient Temperature -25…+85 °C
Communication Protocol IO-Link
Construction Size 81 x 78 x 24 mm
Customs Tariff Number 90318080000.0000
Ecl Ss Code V5 1 4 27270501 -/- Encoder, absolute
Electrical Connection Connector
Encoder Line Premium-Line
Flange Type Flange without mounting element
Housing Material Stainless-steel/Plastic, 1.4404 (AISI 316L)/PA12-GF30
Measuring Range 0…360°
Operating Voltage 15…30 VDC
Output Type Absolute semi-multiturn
Protection Class IP68/IP69K
Shaft Diameter D Mm 6 mm6.35 mm9.525 mm10 mm12 mm12.7 mm14 mm15.875 mm19.05 mm20 mm
Shaft Type Hollow shaft
Technology Contactless

Specifications

SKUCS3832843
MPNRI360P0-EQR24M0-IOLX2-H1141
Alternate Part #1590978
UPC/EAN4047101404340
