Turck RI360P0-EQR24M0-INCRX2-H1181

Name: Turck RI360P0-EQR24M0-INCRX2-H1181
Brand: Turck
SKU: CS3832842
Price: 859.74 USD
Availability: OutOfStock

SKU: CS3832842MPN: RI360P0-EQR24M0-INCRX2-H1181Alternate Part #: 1590912UPC/EAN: 4047101313932

1590912 - INCREMENTAL

$859.74

Unit

Available on backorder

Quantity

remove

add

Product Details

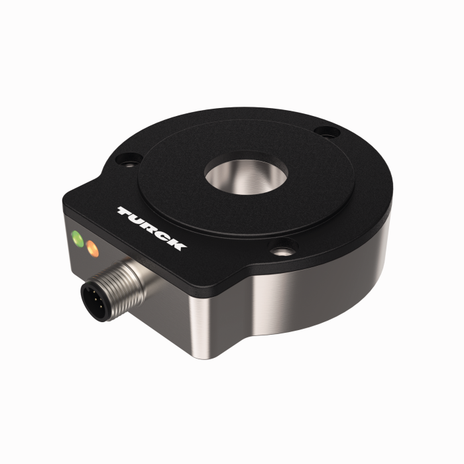

Contactless Encoder with Stainless Steel Housing

Incremental: 1 … 5000 ppr

Premium Line

Immune to electromagnetic interference
1024 pulses per revolution (default)
360, 512, 1000, 1024, 2048, 2500, 3600, 4096, parametr. via Easy-Teach
Free parametrization of the pulse number in the range from 1 to 5000 via PACTware
Position of z-track set via Easy-Teach
Burst function, absolute angular position output incrementally per Easy-Teach pulse

Ambient Temperature	-25…+85 °C
Construction Size	81 x 78 x 24 mm
Customs Tariff Number	90318080000.0000
Ecl Ss Code V5 1 4	27270502 -/- Encoder, incremental
Electrical Connection	Connector, M12 × 1
Encoder Line	Premium-Line
Flange Type	Flange without mounting element
Housing Material	Stainless-steel/Plastic, 1.4404 (AISI 316L)/PA12-GF30
Operating Voltage	10…30 VDC
Output Function	Push-Pull/HTL
Output Type	Incremental
Protection Class	IP68/IP69K
Resolution Incremental	1024 ppr
Shaft Diameter D Mm	6 mm6.35 mm9.525 mm10 mm12 mm12.7 mm14 mm15.875 mm19.05 mm20 mm
Shaft Type	Hollow shaft
Technology	Contactless
