Turck RI360P0-QR24M0-IOLX2-H1141/3GD
SKU: CS4209030MPN: RI360P0-QR24M0-IOLX2-H1141/3GDAlternate Part #: 100003122UPC/EAN: 4047101475463
100003122 - MULTITURN
$569.97
UnitAvailable on backorder
Product Details
Contactless Encoder with ATEX Certificate
IO-Link, 3GD, Zone 2 (22)
Premium Line
- Compact and robust housing
- Versatile mounting options
- Status displayed via LED
- Immune to electromagnetic interference
- 16 bits singleturn
- Process value in 32 bit IO-Link telegram
- 3 error bits
- 16 bits singleturn
- 13 bits multiturn
- 15…30 VDC
- M12 × 1 male connector, 4-pin
- ATEX category II 3 G, Ex zone 2
- ATEX category II 3 D, Ex zone 22
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 3 D, ATEX II 3 G |
| Communication Protocol | IO-Link |
| Construction Size | 81 x 78 x 24 mm |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270501 -/- Encoder, absolute |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Premium-Line |
| Flange Type | Flange without mounting element |
| Housing Material | Metal/plastic, ZnAlCu1/PBT-GF30-V0 |
| Measuring Range | 0…360° |
| Output Type | Absolute semi-multiturn |
| Protection Class | IP68/IP69K |
| Shaft Diameter D Mm | 6 mm6.35 mm9.525 mm10 mm12 mm12.7 mm14 mm15.875 mm19.05 mm20 mm |
| Shaft Type | Hollow shaft |
| Technology | Contactless |
Specifications
| SKU | CS4209030 |
|---|---|
| MPN | RI360P0-QR24M0-IOLX2-H1141/3GD |
| Alternate Part # | 100003122 |
| UPC/EAN | 4047101475463 |
You may also like
Turck RI360P0-QR24M0-IOLX2-H1141
$495.79Unit

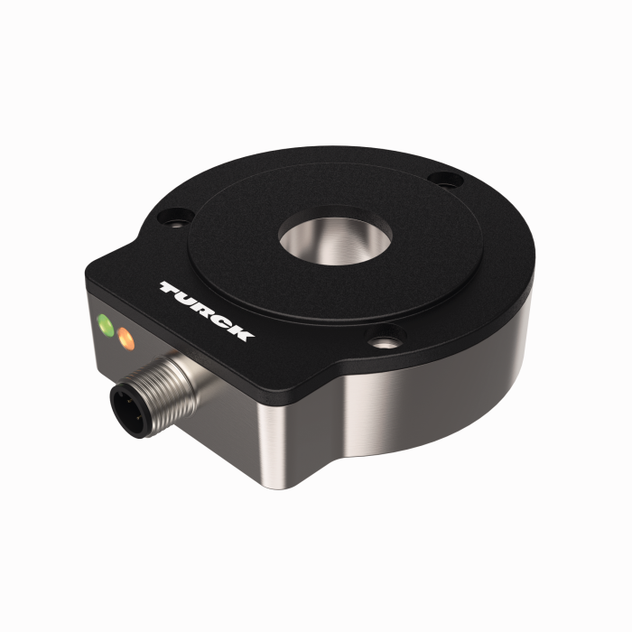

Turck RI360P0-EQR24M0-IOLX2-H1141
$720.29Unit

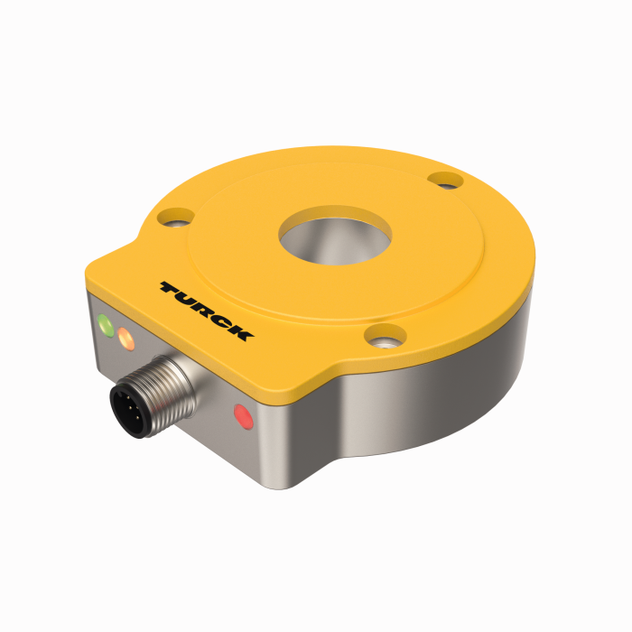

Turck RI360P0-QR24M0-HESG25X3-H1181
