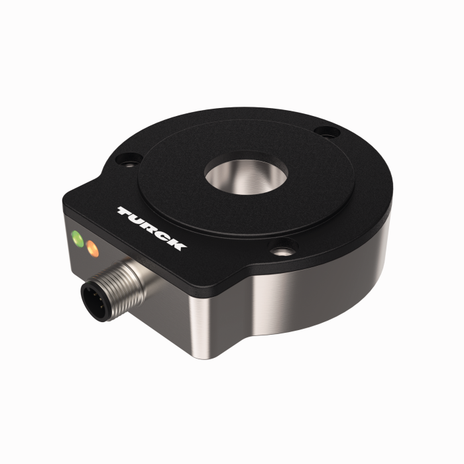

Turck RI360P0-EQR24M0-ELIU5X2-H1151

SKU: CS3832840MPN: RI360P0-EQR24M0-ELIU5X2-H1151Alternate Part #: 1590977UPC/EAN: 4047101389159

1590977 - SINGLETURN

Turck RI360P0-EQR24M0-ELIU5X2-H1151, RI360P0-QR24M0-ELIU5X2-H1151
Turck RI360P0-EQR24M0-ELIU5X2-H1151
Turck RI360P0-EQR24M0-ELIU5X2-H1151, RI360P0-QR24M0-ELIU5X2-H1151
Turck RI360P0-EQR24M0-ELIU5X2-H1151
$859.74
Unit
Available on backorder
remove
add

Product Details

Contactless Encoder with Stainless Steel Housing

Analog

Premium Line

  • Compact, rugged housing
  • Active face, plastic PA12-GF30
  • Housing, stainless steel V4A (1.4404)
  • Status displayed via LED
  • Measuring range indicated via LED
  • Immune to electromagnetic interference
  • Measuring range programmable via Easy Teach
  • Output signal programmable via Easy Teach
  • Resolution, 16-bit
  • 15…30 VDC
  • 0…10 V and 4…20 mA
  • Male M12 x 1, 5-pin

Attributes

Ambient Temperature -25…+85 °C

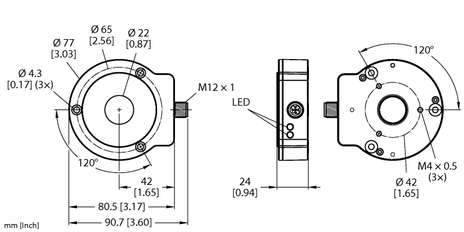

Construction Size 81 x 78 x 24 mm
Current Output 4…20 mA
Customs Tariff Number 90318080000.0000
Ecl Ss Code V5 1 4 27270501 -/- Encoder, absolute
Electrical Connection Connector, M12 × 1
Encoder Line Premium-Line
Flange Type Flange without mounting element
Housing Material Stainless-steel/Plastic, 1.4404 (AISI 316L)/PA12-GF30
Measuring Range 0…360°
Operating Voltage 15…30 VDC
Output Function Analog output
Output Type Absolute singleturn
Protection Class IP68/IP69K
Shaft Diameter D Mm 6 mm6.35 mm9.525 mm10 mm12 mm12.7 mm14 mm15.875 mm19.05 mm20 mm
Shaft Type Hollow shaft
Technology Contactless
Voltage Output 0…10 V

Specifications

SKUCS3832840
MPNRI360P0-EQR24M0-ELIU5X2-H1151
Alternate Part #1590977
UPC/EAN4047101389159
