Siemens SKD82.50U
SKU: CS871397MPN: SKD82.50UUPC/EAN: 4047625020163
Flowrite Electro-Hydraulic Actuator, float, NSR, ¾” Stroke
$607.97
Unit1 in stock
Product Details
The Flowrite SKD Valve Actuator is used with Flowrite and other standard valves with a ¾-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide floating control of the valve. Normally closed and 3-way upper port nominal force is 225 lb-in (1000N); normally open and 3-way bypass port is 258 lb-in (1150N). Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, and non-spring return functionality.
Attributes
| Ambient Temperature Operation | -15…50 °C |
| Fail Safe | No |
| Frequency | 50/60 Hz |
| Medium Temperature | -25…150 °C; 5…130 ºF |
| Medium Temperature F Max | 130 ºF |
| Medium Temperature F Min | 5 ºF |
| Operating Voltage | 19.2…28.2 V24 V#AC |
| Positioning Time | 120 s |
| Power Consumption | 9 VA |
| Spring Return Function | Non-spring return functionality |
| Stroke | 20 mm |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS871397 |
|---|---|
| MPN | SKD82.50U |
| UPC/EAN | 4047625020163 |
You may also like
Siemens SKD60U
$787.67Unit
Siemens SKC82.60U
$1,426.54Unit

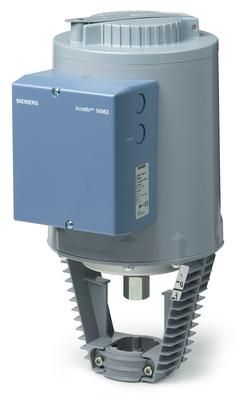

Siemens SKB82.50U
$1,277.35Unit

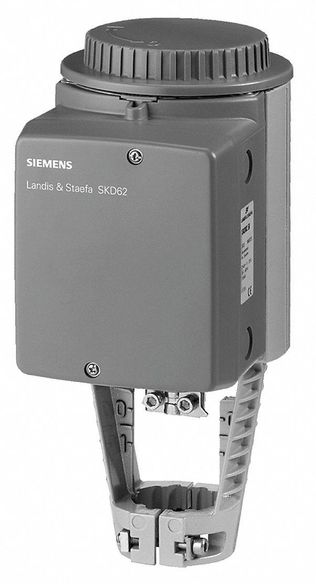

Siemens SKD62U
$846.69UnitSiemens SKD82.51U
$847.63Unit

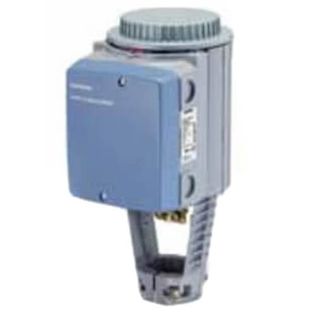

Siemens SKB82.51U
$1,527.63Unit

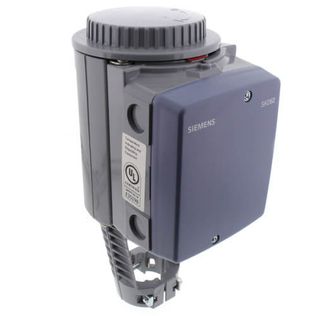

Siemens SKD62UA
$927.27UnitSiemens SKB62UA
$1,595.13UnitSiemens SKB62U
$1,460.22UnitSiemens SKC82.61U
$1,677.80UnitSiemens SKC62U
$1,738.94Unit

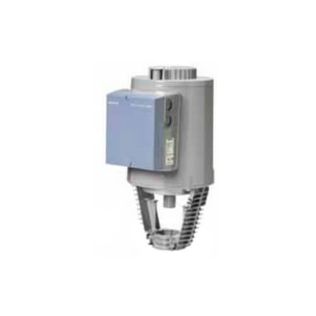

Siemens SKC62UA
