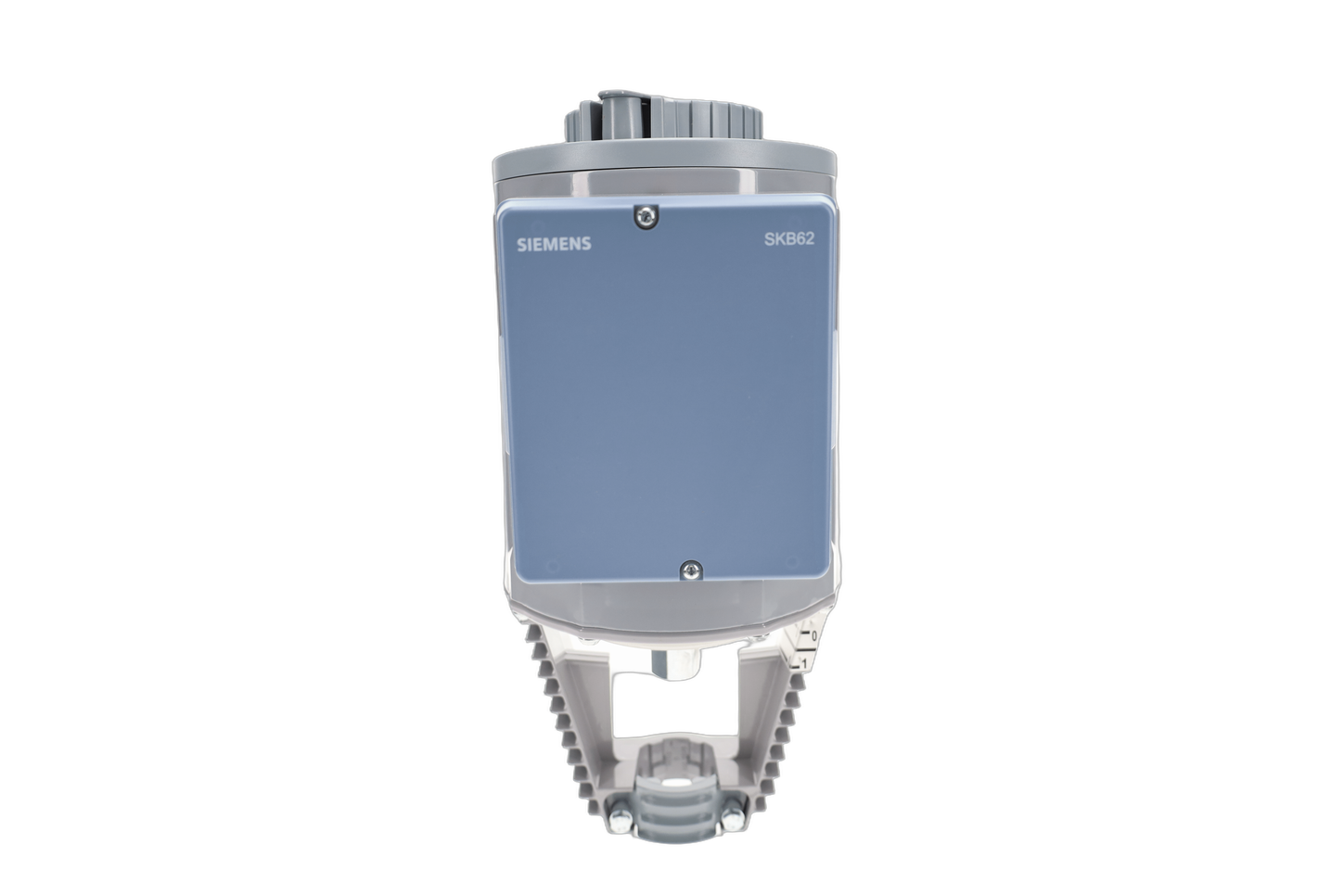

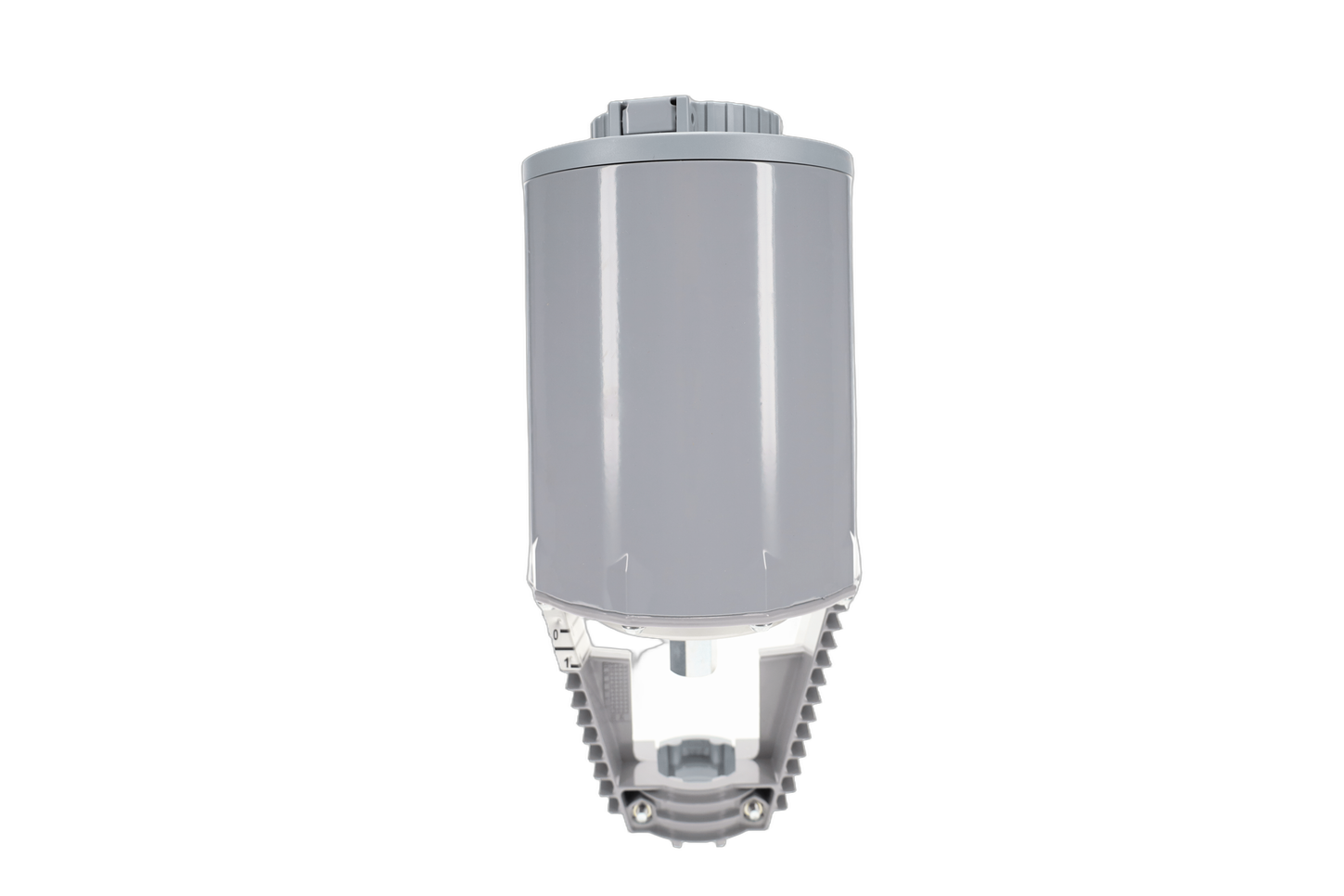

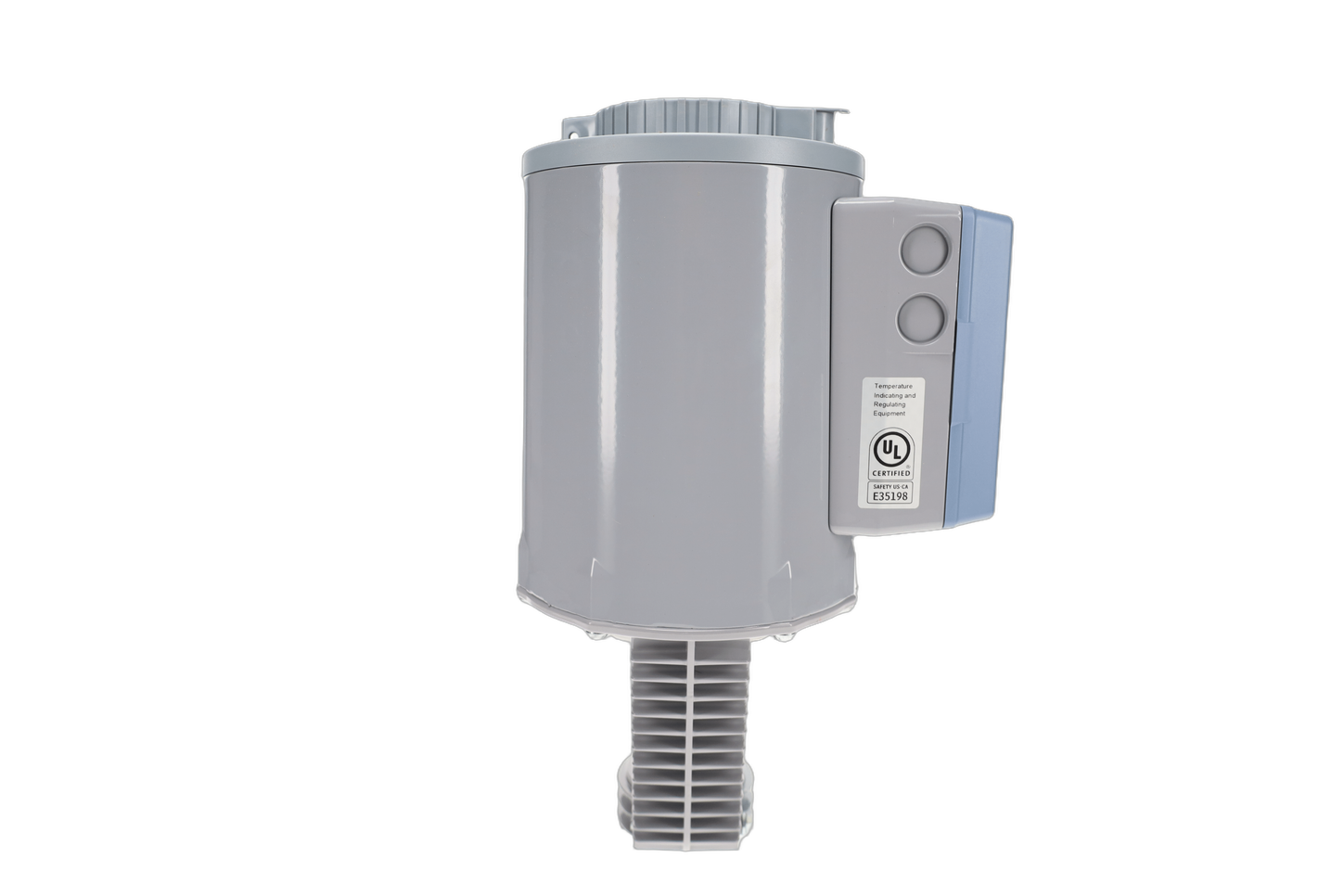

Siemens SKB62U
SKU: CS460536MPN: SKB62UUPC/EAN: 4034106331498
Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, ¾” Stroke
$1,460.22
Unit8 in stock
Product Details
The Flowrite SKB Valve Actuator is used with Flowrite and other standard valves with a ¾-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and spring return functionality.
Attributes
| Ambient Humidity Operation | 5…95 % r.h. |
| Ambient Temperature Operation | -15…55 °C |
| Auxiliary Switch | Optional |
| Digital Outputs | Non floating |
| Fail Safe | Yes |
| Frequency | 50/60 |
| Medium Temperature | -25…220 °C; 5…130 ºF |
| Medium Temperature F Max | 130 ºF |
| Medium Temperature F Min | 5 ºF |
| Operating Range | DC 0…10 V;4…20 mA |
| Operating Voltage | 19.2…28.2 V24 V#AC |
| Position Feedback | DC 0…10 V;4…20 mA |
| Positioning Time | Open:120 s;Close:10 s |
| Power Consumption | 14 VA |
| Spring Return Function | Spring return functionality |
| Stroke | 20 mm |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS460536 |
|---|---|
| MPN | SKB62U |
| UPC/EAN | 4034106331498 |
