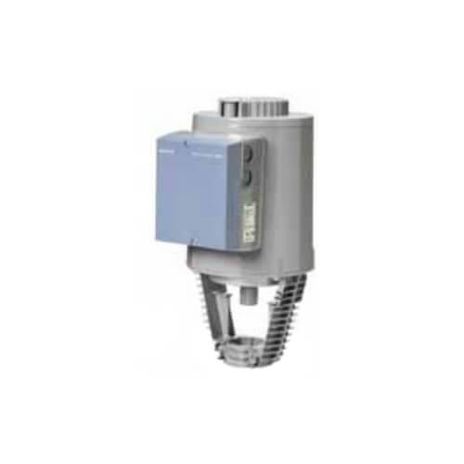

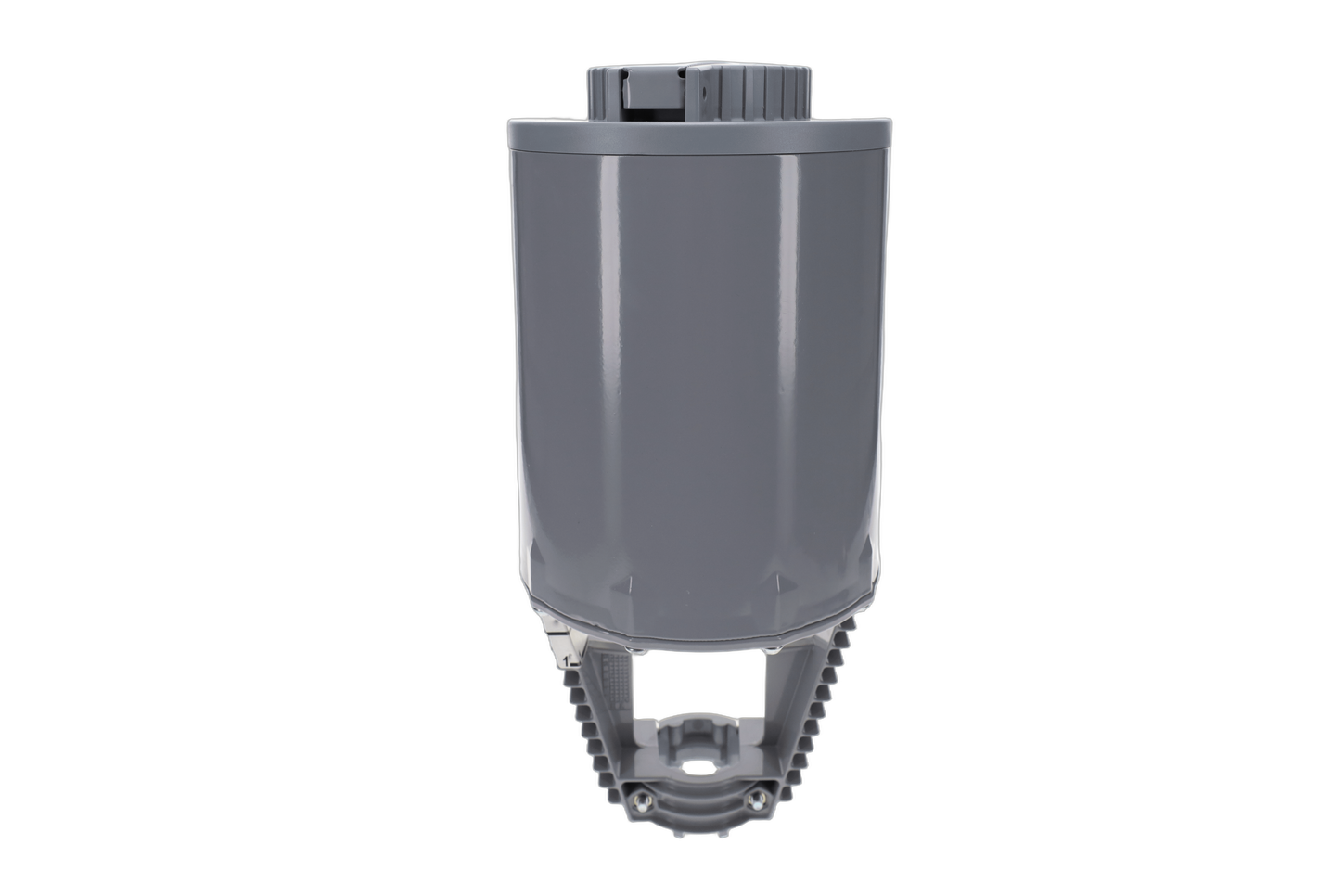

Siemens SKC62UA
SKU: CS1020362MPN: SKC62UAUPC/EAN: 7612914018137
Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 1-½” Stroke
$1,751.93
Unit8 in stock
Product Details
The Flowrite SKC Advanced Feature Valve Actuator is used with Flowrite and other standard valves with a 1-½-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and spring return functionality. Advanced features include selectable operating direction (direct or reverse acting), adjustable start and span, stroke limit control, choice of linear or equal-percentage flow characteristics.
Attributes
| Ambient Humidity Operation | 5…95 % r.h. |
| Ambient Temperature Operation | -15…55 °C |
| Auxiliary Switch | Optional |
| Digital Outputs | Non floating |
| Frequency | 50/60 |
| Medium Temperature | -25…220 °C; 5…130 ºF |
| Medium Temperature F Max | 130 ºF |
| Medium Temperature F Min | 5 ºF |
| Operating Range | DC 0…10 V;4…20 mA |
| Operating Voltage | 19.2…28.2 V24 V#AC |
| Position Feedback | DC 0…10 V;4…20 mA |
| Positioning Time | Open:120 s;Close:20 s |
| Power Consumption | 21 VA |
| Spring Return Function | Spring return functionality |
| Stroke | 40 mm |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS1020362 |
|---|---|
| MPN | SKC62UA |
| UPC/EAN | 7612914018137 |
