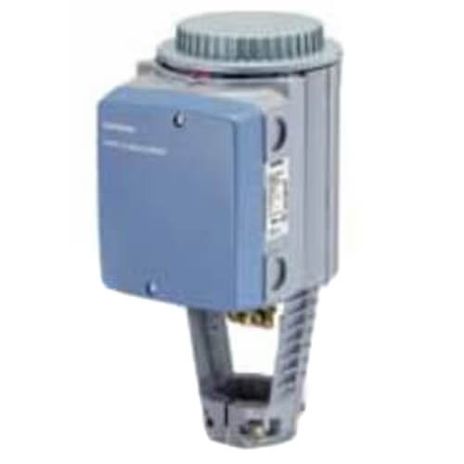

Siemens SKC82.61U
SKU: CS631937MPN: SKC82.61U
Flowrite Electro-Hydraulic Actuator, Float Control, SR, 1-½-inch Stroke
$1,677.80
UnitAvailable on backorder
Product Details
The Flowrite SKC Valve Actuator is used with Flowrite and other standard valves with a 1-½-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide floating control of the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and spring return functionality.
Attributes
| Ambient Temperature Operation | -15…55 °C |
| Fail Safe | Yes |
| Frequency | 50/60 |
| Medium Temperature | -25…220 °C; 5…130 ºF |
| Medium Temperature F Max | 130 ºF |
| Medium Temperature F Min | 5 ºF |
| Operating Voltage | 19.2…31.2 V24 V#AC |
| Positioning Time | 120 s |
| Power Consumption | 19 VA |
| Spring Return Function | Spring return functionality |
| Stroke | 40 mm |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS631937 |
|---|---|
| MPN | SKC82.61U |
