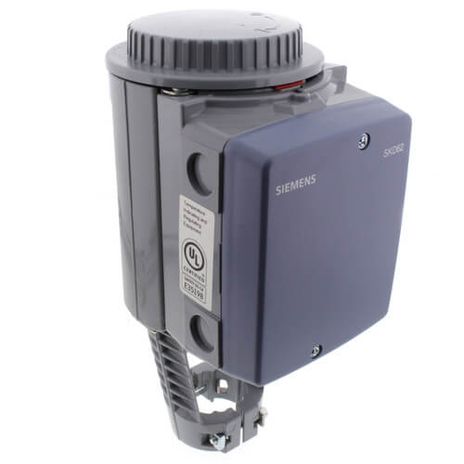

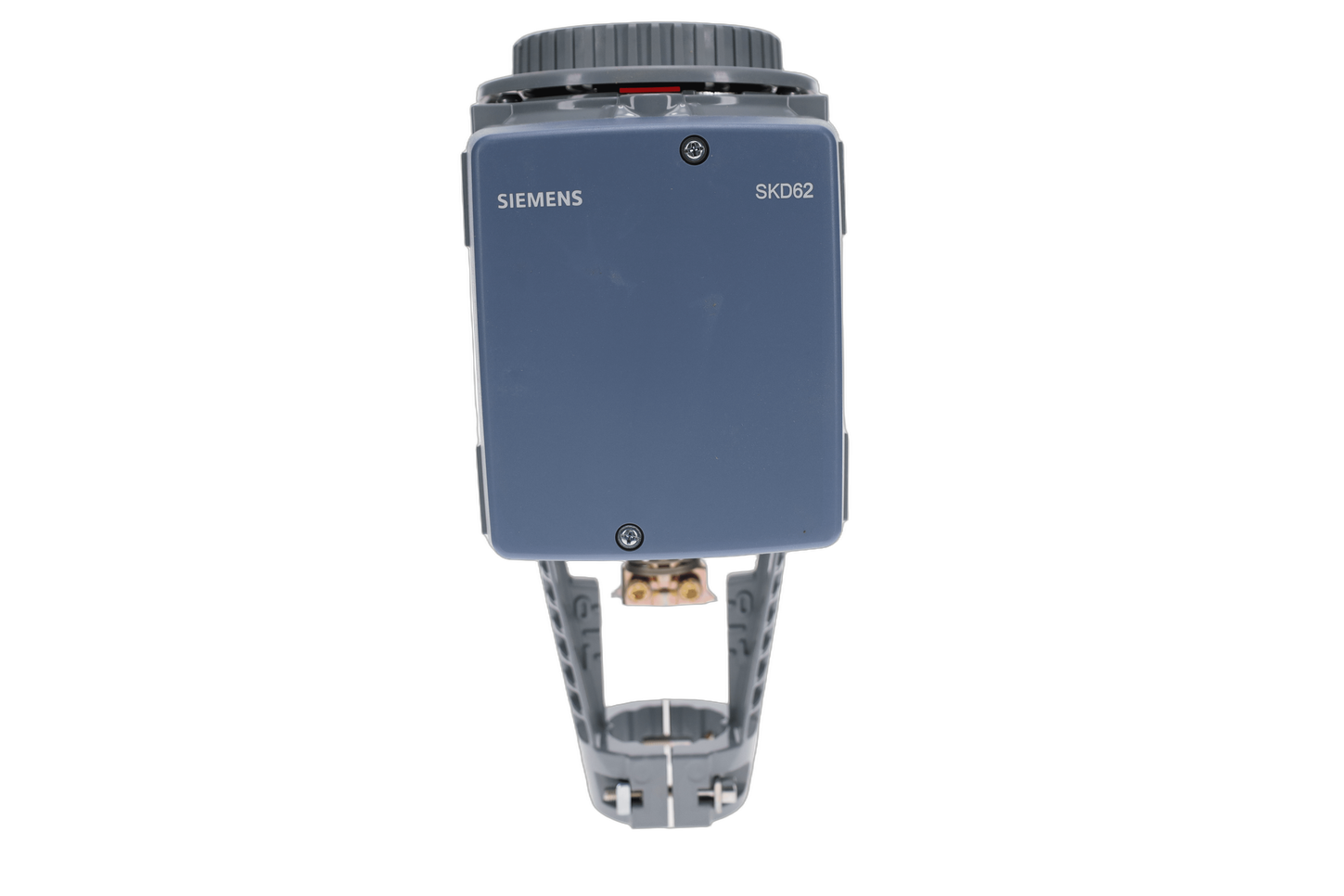

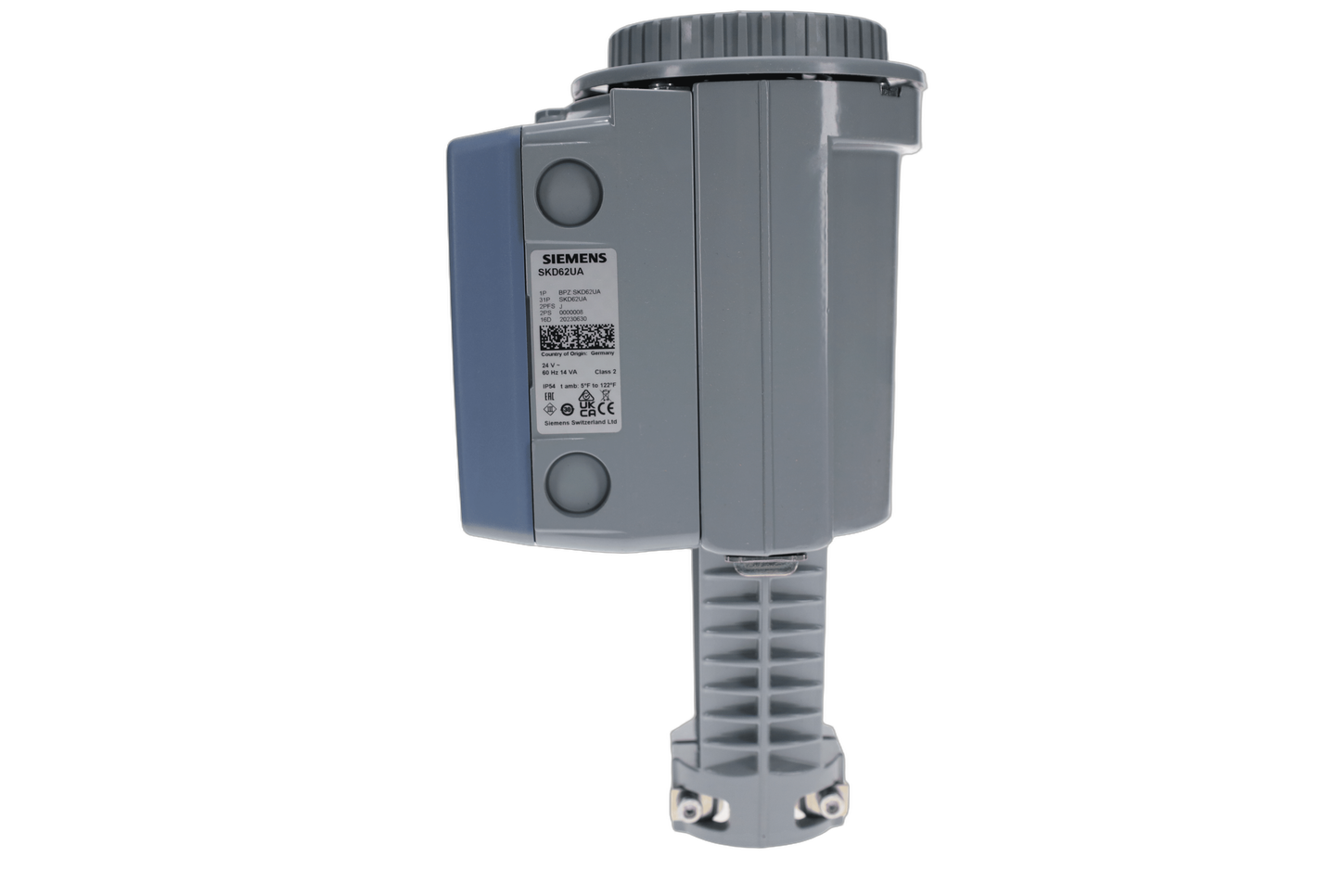

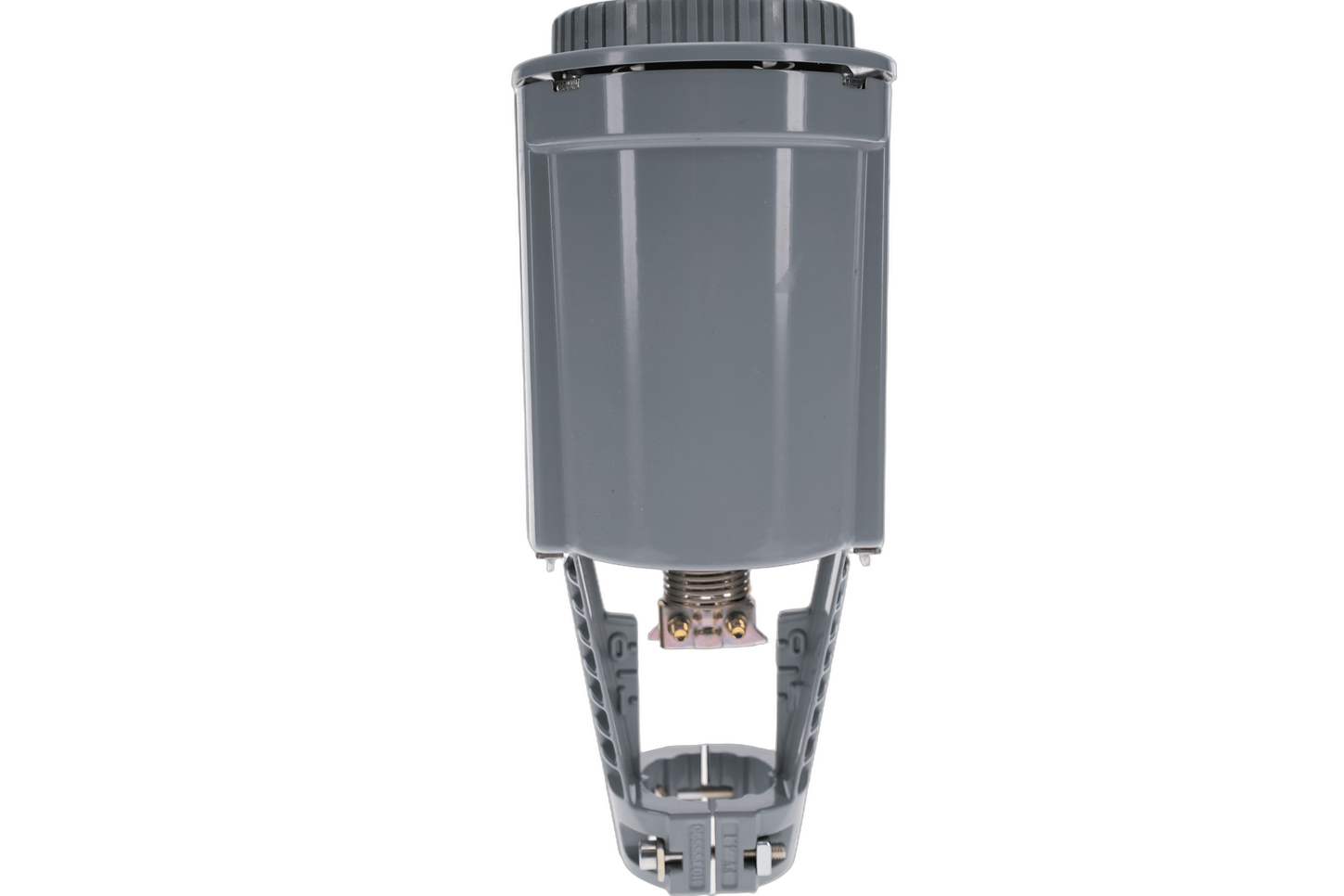

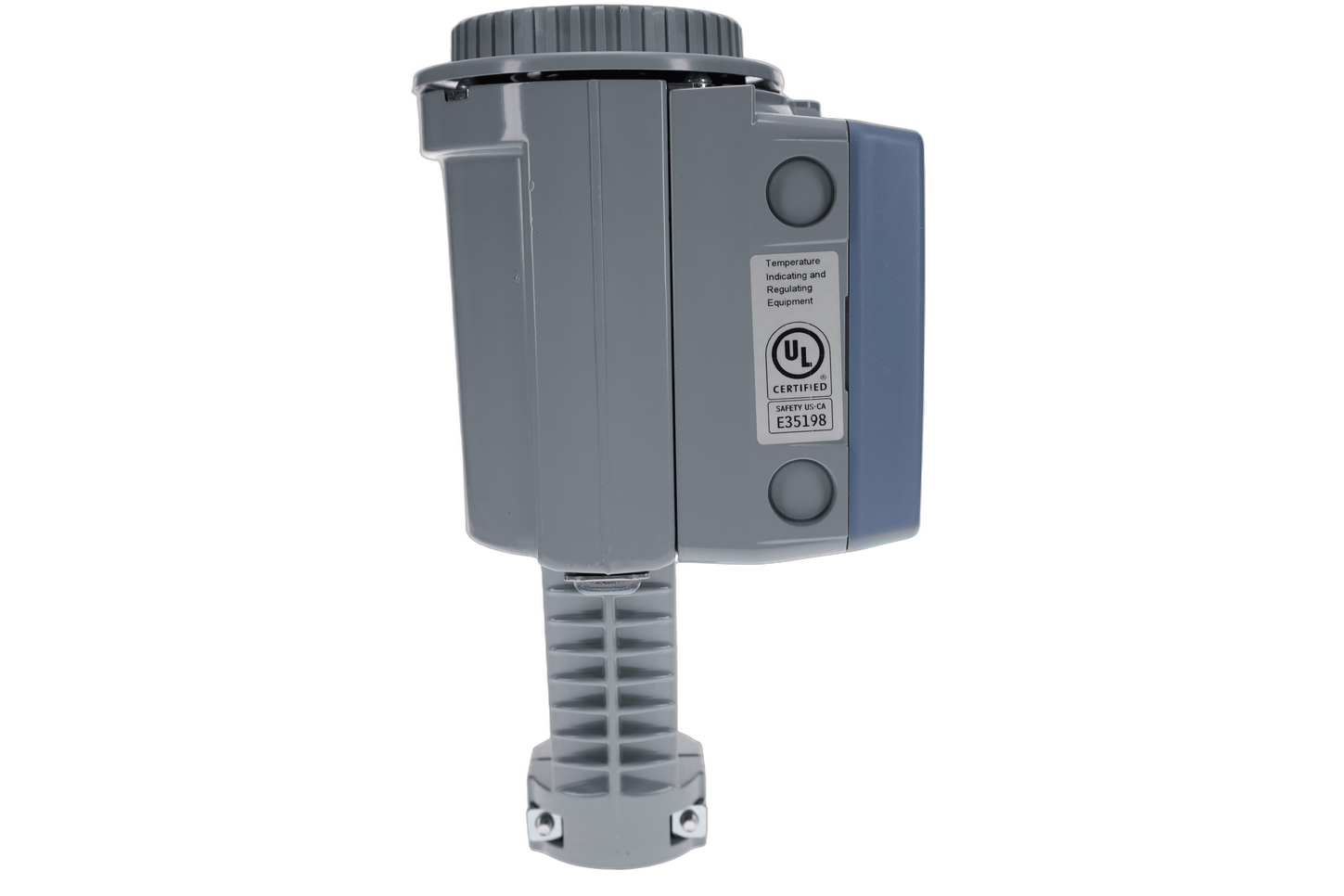

Siemens SKD62UA

Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, ¾” Stroke

The Flowrite SKD Advanced Feature Valve Actuator is used with Flowrite and other standard valves with a ¾-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve. Normally closed and 3-way upper port nominal force is 225 lb-in (1000N); normally open and 3-way bypass port is 258 lb-in (1150N). Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, and spring return functionality. Advanced features include selectable operating direction (direct or reverse acting), adjustable start and span, stroke limit control, choice of linear or equal-percentage flow characteristics.
