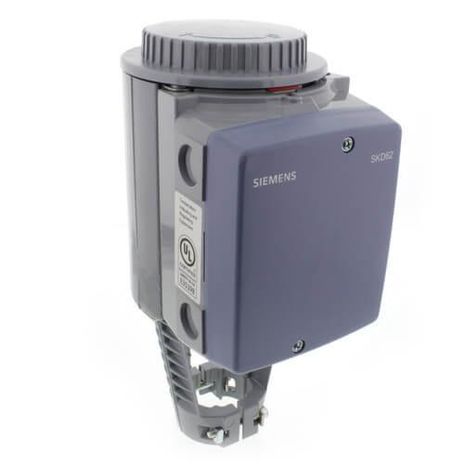

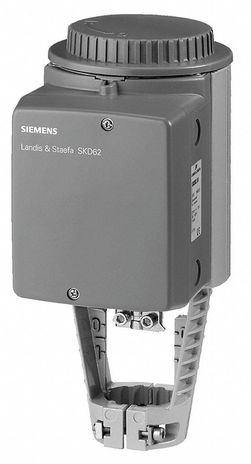

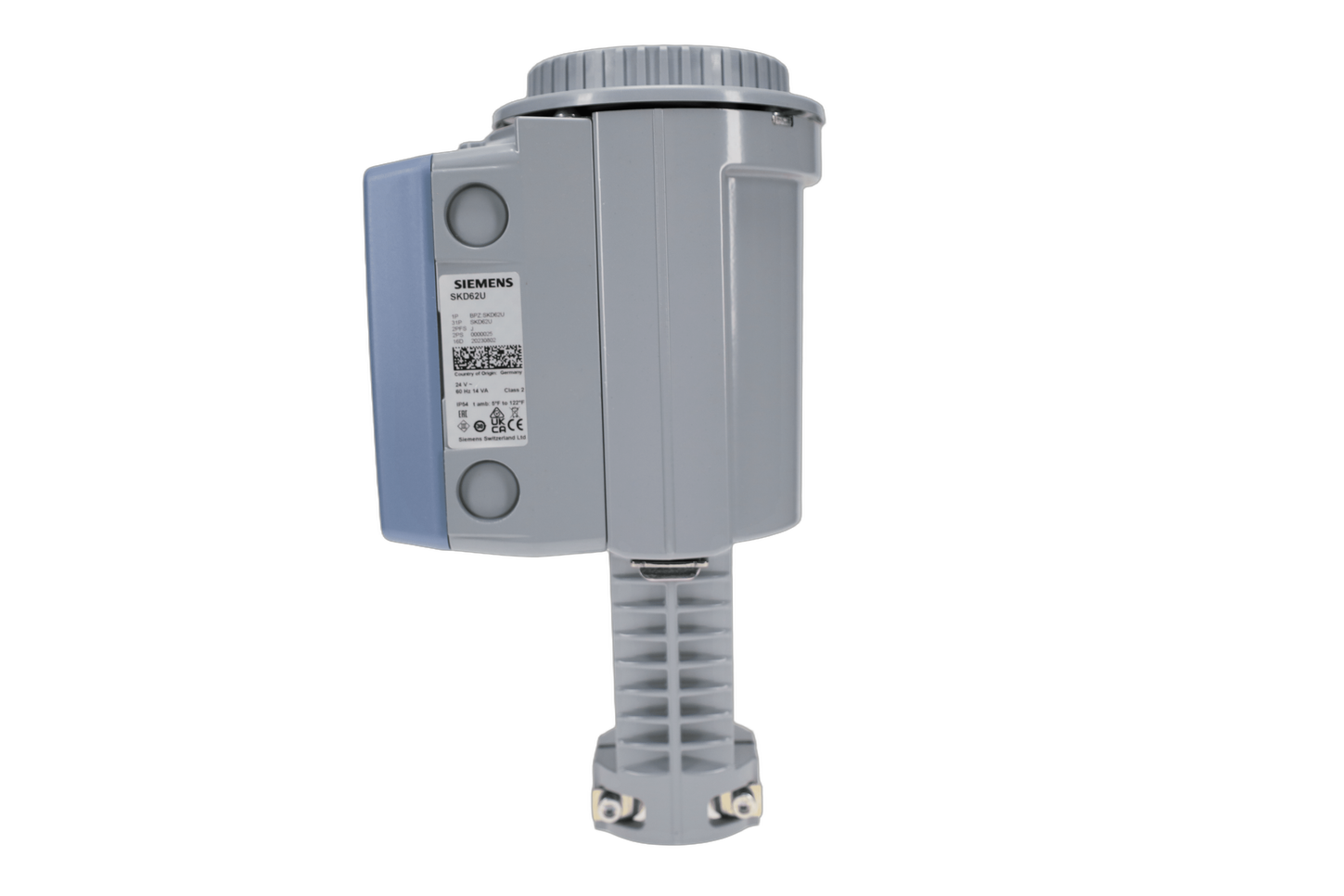

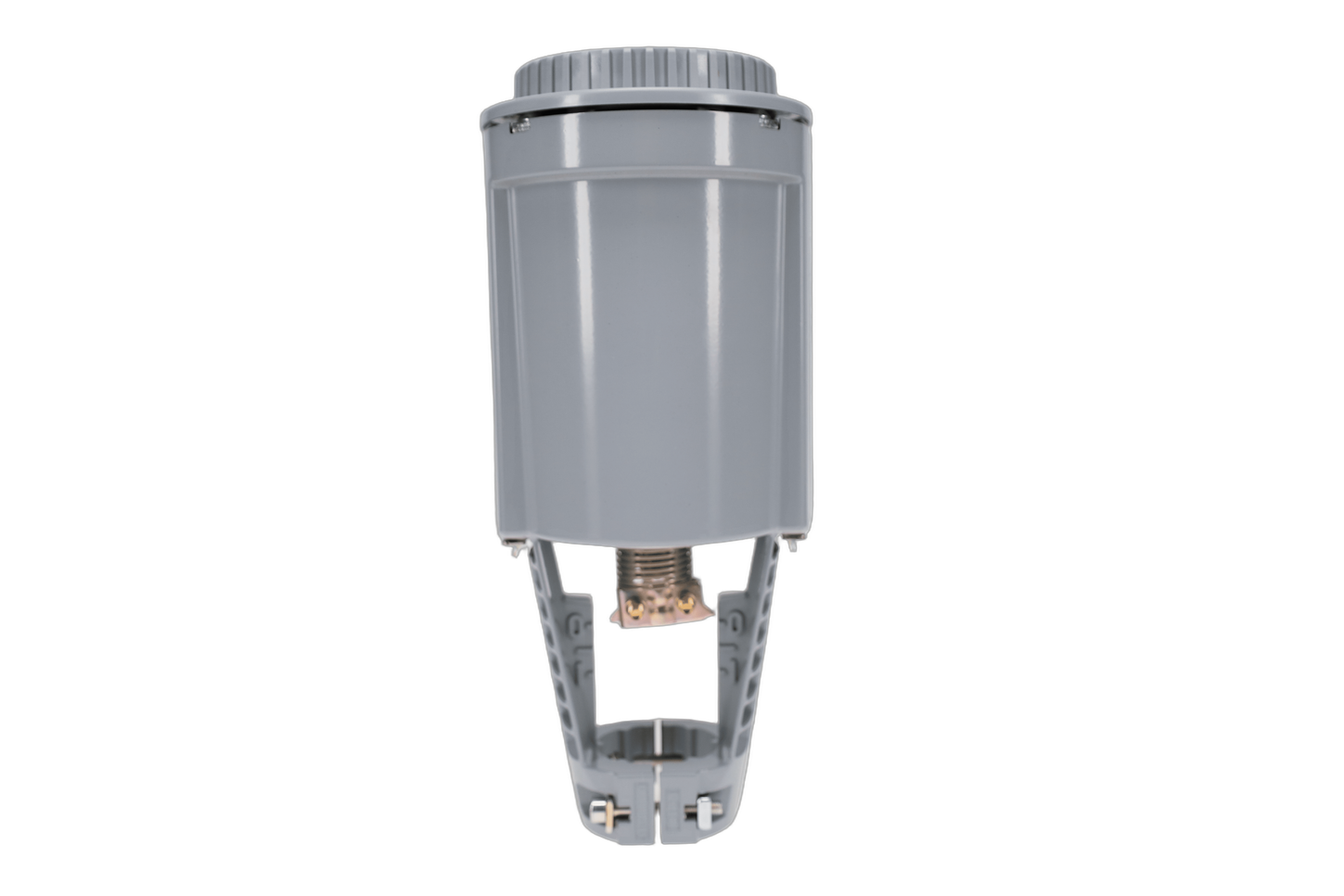

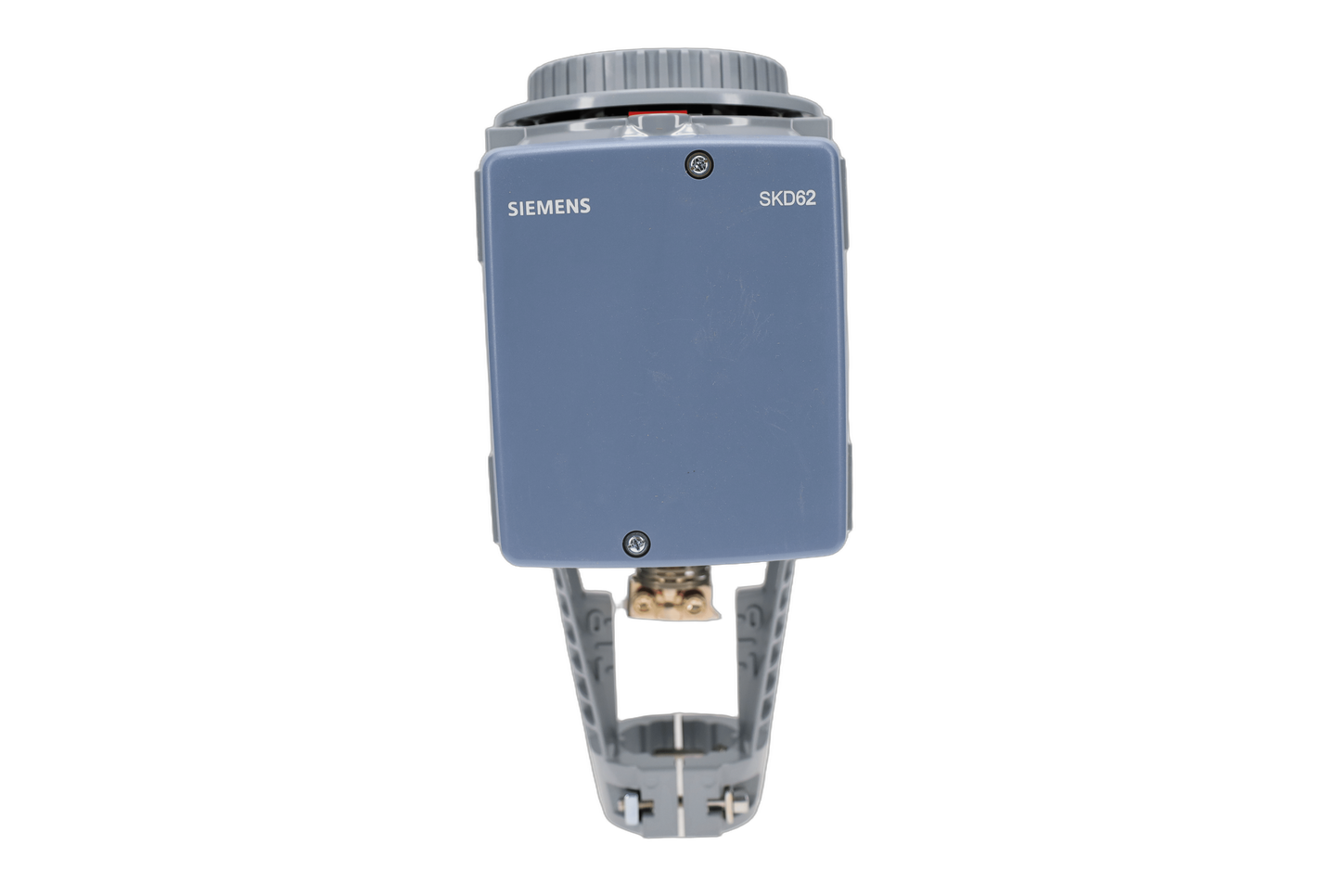

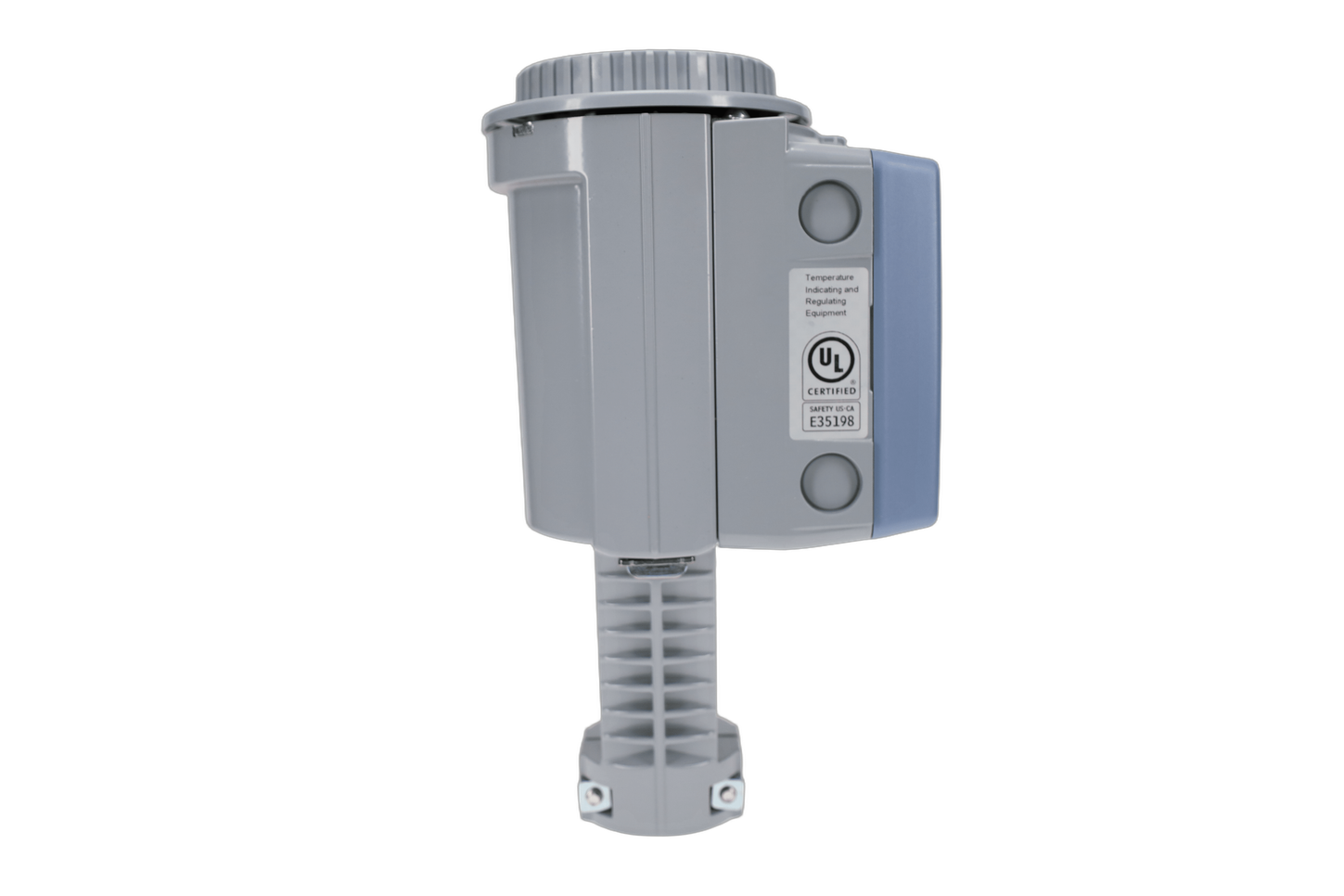

Siemens SKD62U
SKU: CS2401870MPN: SKD62UUPC/EAN: 4034106331566
Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, ¾” Stroke
$846.69
Unit46 in stock
Product Details
The Flowrite SKD Valve Actuator is used with Flowrite and other standard valves with a ¾-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve. Normally closed and 3-way upper port nominal force is 225 lb-in (1000N); normally open and 3-way bypass port is 258 lb-in (1150N). Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, and spring return functionality.
Attributes
| Ambient Temperature Operation | -15…50 °C |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Medium Temperature | -25…150 °C; 5…130 ºF |
| Medium Temperature F Max | 130 ºF |
| Medium Temperature F Min | 5 ºF |
| Operating Range | DC 0…10 V;4…20 mA |
| Operating Voltage | 19.2…31.2 V24 V#AC |
| Position Feedback | DC 0…10 V;4…20 mA |
| Positioning Time | Open:30 s;Close:15 s |
| Power Consumption | 14 VA |
| Spring Return Function | Spring return functionality |
| Stroke | 20 mm |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS2401870 |
|---|---|
| MPN | SKD62U |
| UPC/EAN | 4034106331566 |
