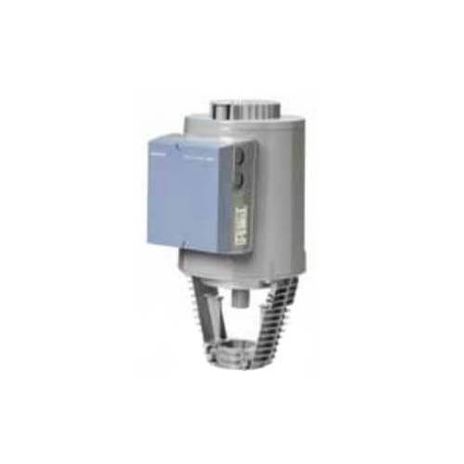

Siemens SKC82.60U
SKU: CS677375MPN: SKC82.60UUPC/EAN: 4034106331559
Flowrite Electro-Hydraulic Actuator, Float Control, NSR, ¾” Stroke
$1,426.54
UnitAvailable on backorder
Product Details
The Flowrite SKC Valve Actuator is used with Flowrite and other standard valves with a 1-½-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide floating control of the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and non-spring return functionality.
Attributes
| Ambient Humidity Operation | 5…95 % r.h. |
| Ambient Temperature Operation | -15…55 °C |
| Auxiliary Switch | Optional |
| Digital Outputs | Non floating |
| Fail Safe | No |
| Frequency | 50/60 |
| Medium Temperature | -25…220 °C; 5…130 ºF |
| Medium Temperature F Max | 130 ºF |
| Medium Temperature F Min | 5 ºF |
| Operating Voltage | 19.2…28.2 V24 V#AC |
| Positioning Time | 120 s |
| Power Consumption | 15 VA |
| Spring Return Function | Non-spring return functionality |
| Stroke | 40 mm |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS677375 |
|---|---|
| MPN | SKC82.60U |
| UPC/EAN | 4034106331559 |
