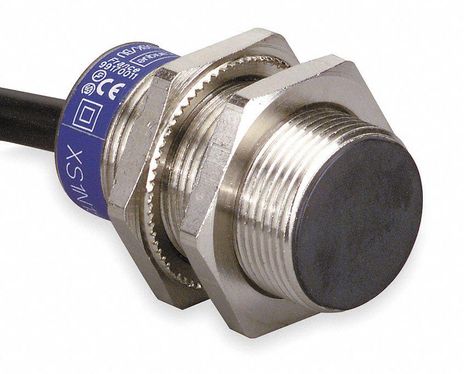

Square D XS1N18PA349

Name: Square D XS1N18PA349
Brand: Square D
SKU: CS4814101
Availability: OutOfStock

SKU: CS4814101MPN: XS1N18PA349

Inductive proximity sensors XS, inductive sensor XS1 M18, L39mm, brass, Sn10mm, 12...24 VDC, cable 2 m

Product Details

Inductive proximity sensors technology for non contact sensing of metal objects up to 60mm

Ambient Air Temperature For Operation	-25-50 °C
Ambient Air Temperature For Operation 1	-25-50 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	3 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	-
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Discrete Output Type	PNP
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	5 ms
Maximum Delay Recovery	0.7 ms
Maximum Delay Response	0.3 ms
Operating Zone	0-8 mm
Output Circuit Type	DC
Product Certifications	UL# #CSA
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Design	cylindrical M18
Sensor Name	XS1
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	39 mm
Thread Type	M18 x 1
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	3-wire
