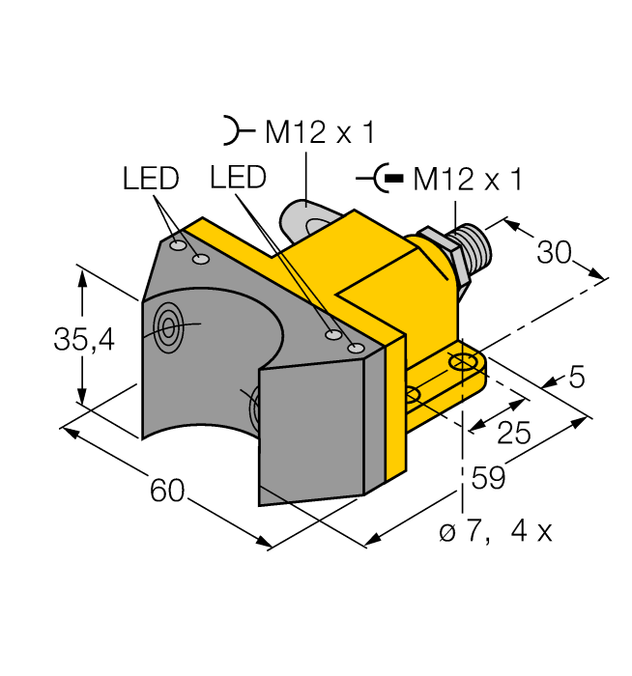

Turck NI4-DSU35-2ASIX4-H1140
SKU: CS804134MPN: NI4-DSU35-2ASIX4-H1140Alternate Part #: 1902000UPC/EAN: 4047101087772
1902000 - FERRITE, DUAL, FIELDBUS, CON.
$372.40
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- Mounting on all standard actuators
- Valves can be connected
- AS‐Interface, 18…33 VDC
- M12 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Communication Protocol | AS-Interface |

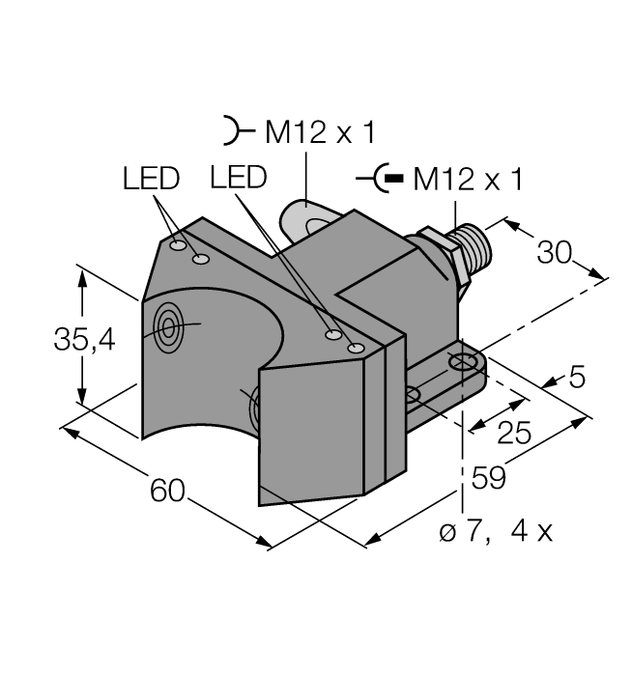

| Construction Size | 59 x 60 x 35.4 mm, DSU35 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PP-GF30, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 18…33 VDC |
| Output Function | 2 x NO contact |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.030 kHz |
Specifications
| SKU | CS804134 |
|---|---|
| MPN | NI4-DSU35-2ASIX4-H1140 |
| Alternate Part # | 1902000 |
| UPC/EAN | 4047101087772 |
You may also like
Turck NI4-DSU35-2ASIX4-H1140/S930
$372.40Unit
Turck NI4-DSU35-2ASI2X4-H1140
$343.71Unit

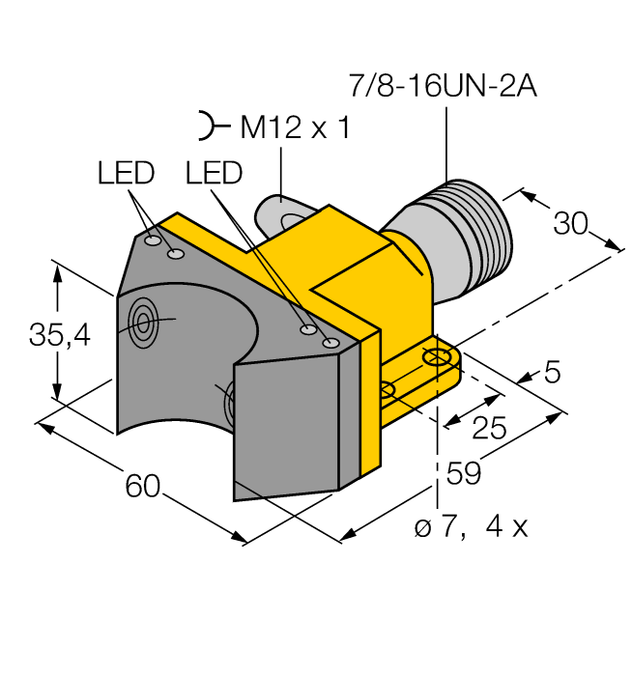

Turck NI4-DSU35-2ASIX4-B1140-FKE4.3
$496.61Unit

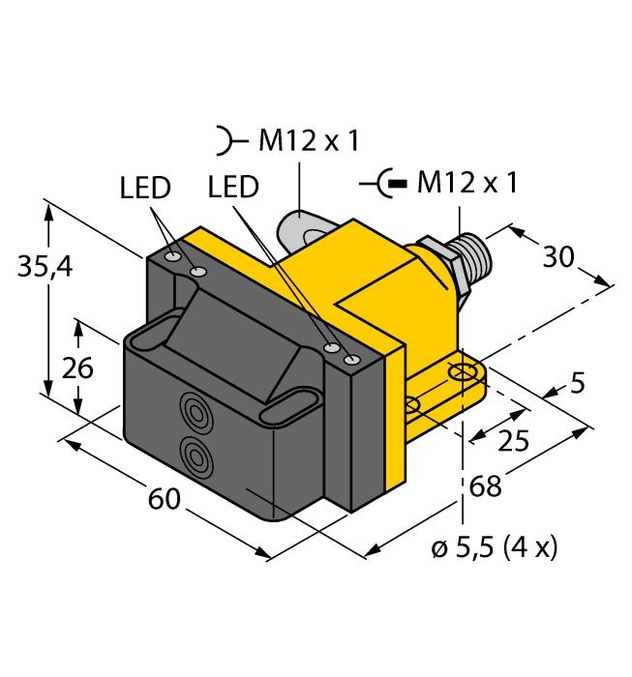

Turck NI4-DSU26-2ASIX4-H1140-FKE4.3
$360.44Unit

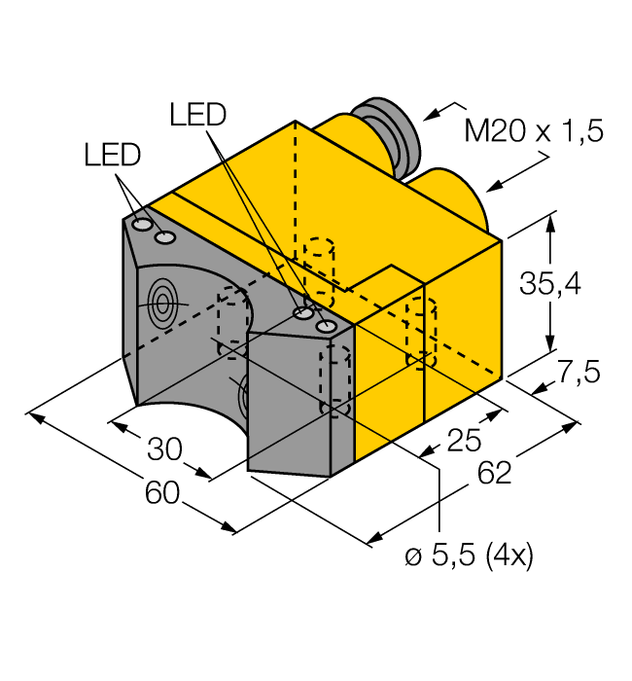

Turck NI4-DSU35TC-2ASIX4
$363.18Unit

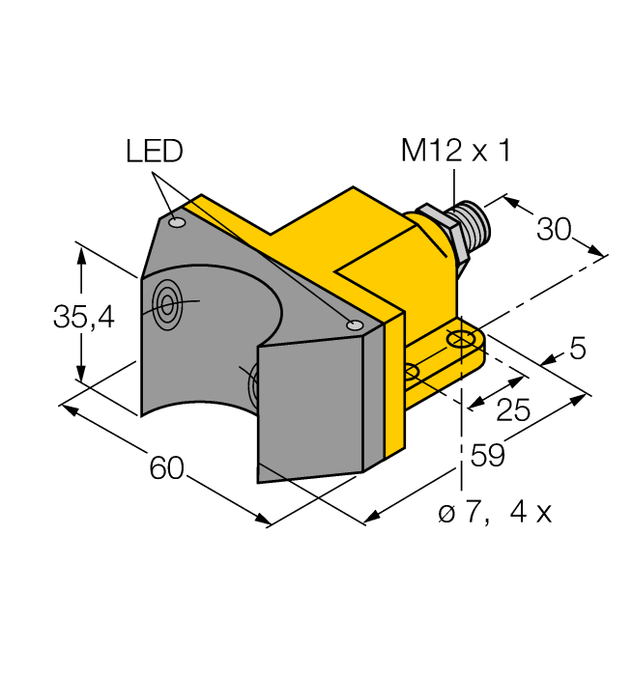

Turck NI4-DSU35-2Y1X2-H1140
$216.38Unit

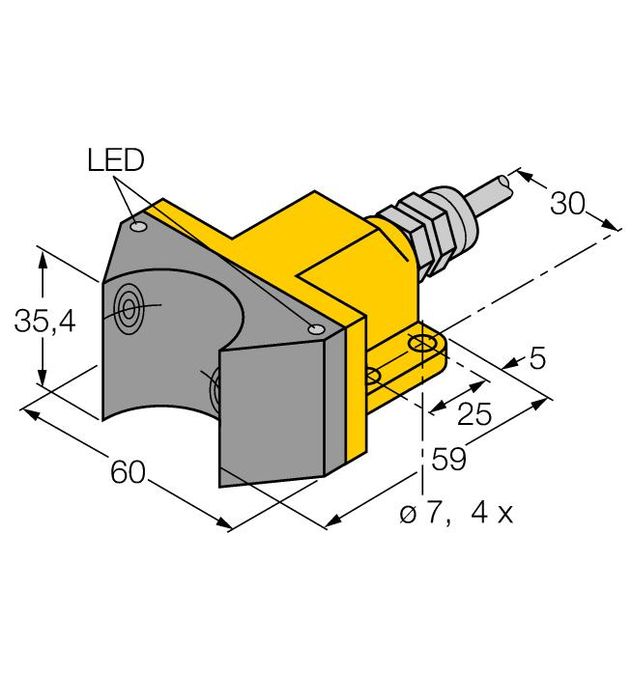

Turck NI4-DSU35-2AN4X2
$253.58Unit

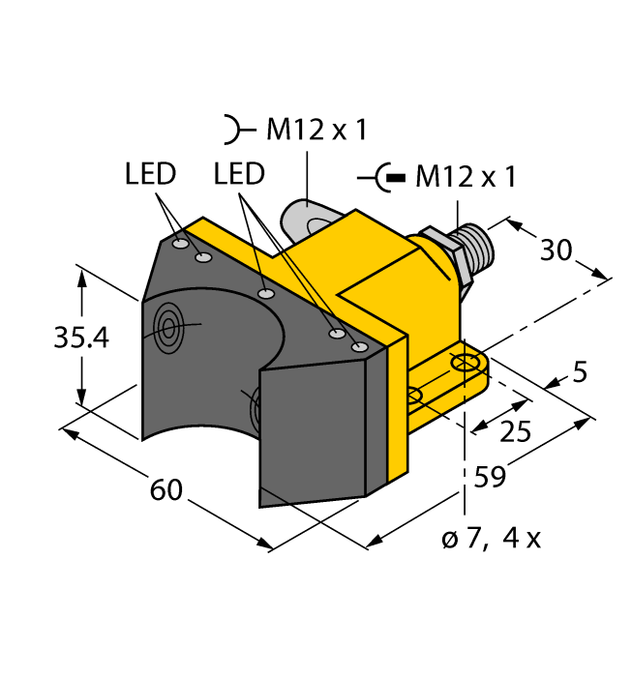

Turck NI4-DSU35-2DNETX5-H1150
$392.89UnitTurck NI4-DSU35-2AP6X2-H1141
$278.11UnitTurck NI4-DSU35-2AP4X2-H1141
$278.11Unit

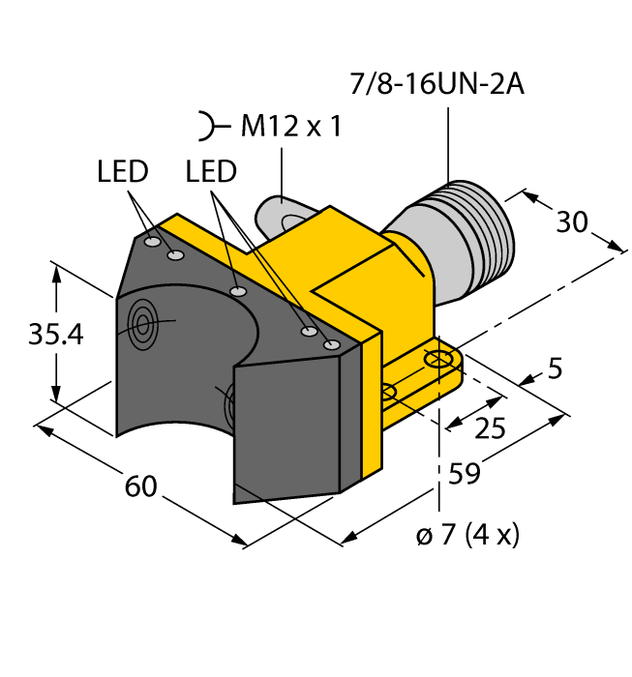

Turck NI4-DSU35-2DNETX5-B1150-FKE4.3
