Turck NI4-DSU35-2ASIX4-H1140/S930
SKU: CS3814301MPN: NI4-DSU35-2ASIX4-H1140/S930Alternate Part #: 1902002UPC/EAN: 4047101252149
1902002 - FERRITE, DUAL, FIELDBUS, CON.
$372.40
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- Mounting on all standard actuators
- Valves can be connected
- AS‐Interface, 18…33 VDC
- M12 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Communication Protocol | AS-Interface |

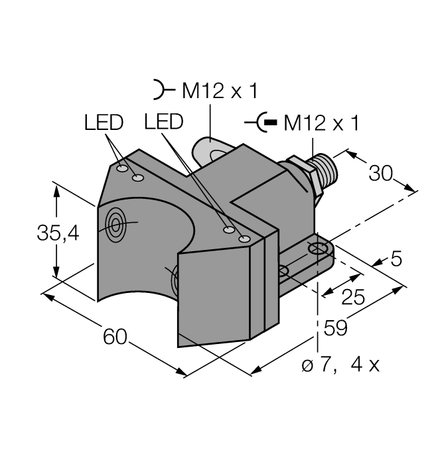

| Construction Size | 59 x 60 x 35.4 mm, DSU35 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PP-GF30, Black |
| Mounting | Non-flush |
| Operating Voltage | 18…33 VDC |
| Output Function | NO contact |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.030 kHz |
Specifications
| SKU | CS3814301 |
|---|---|
| MPN | NI4-DSU35-2ASIX4-H1140/S930 |
| Alternate Part # | 1902002 |
| UPC/EAN | 4047101252149 |
You may also like
Turck NI4-DSU35-2ASIX4-H1140
$372.40UnitTurck NI4-DSU35-2ASI2X4-H1140
$343.71Unit
Turck NI4-DSU35-2ASIX4-B1140-FKE4.3
$496.61Unit
Turck NI4-DSU26-2ASIX4-H1140-FKE4.3
$360.44Unit
Turck NI4-DSU35TC-2ASIX4
$363.18Unit
Turck NI4-DSU35-2Y1X2-H1140
$216.38Unit

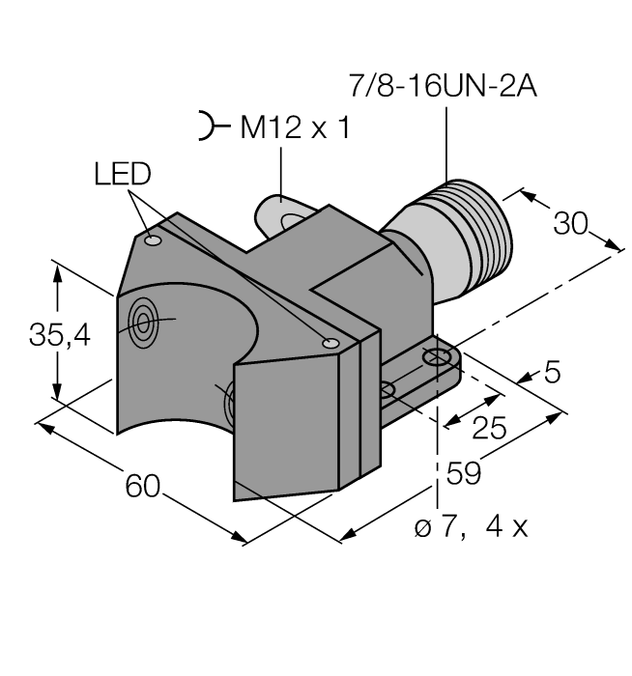

Turck NI4-DSU35-2AP4X2-B1160-FKE4.5/S930
