Turck NI4-DSU35-2AP4X2
SKU: CS3814295MPN: NI4-DSU35-2AP4X2Alternate Part #: 1569900UPC/EAN: 4047101075939
1569900 - FERRITE, DUAL, DC, CABLE
$278.11
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- Mounting on all standard actuators
- 2 x NO contact, PNP output
- DC 4-wire, 10…65 VDC
- Cable connection
Attributes
| Ambient Temperature | -25…+70 °C |

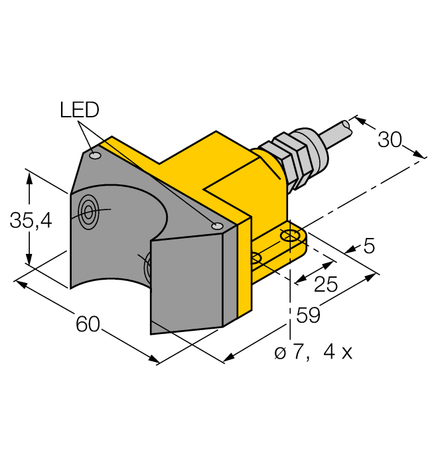

| Construction Size | 59 x 60 x 35.4 mm, DSU35 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Plastic, PP-GF30, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 10…65 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.050 kHz |
Specifications
| SKU | CS3814295 |
|---|---|
| MPN | NI4-DSU35-2AP4X2 |
| Alternate Part # | 1569900 |
| UPC/EAN | 4047101075939 |
