Turck NI4-DSU35-2ADZ30X2-B1160-FKE4.5
SKU: CS3814291MPN: NI4-DSU35-2ADZ30X2-B1160-FKE4.5Alternate Part #: 4290011UPC/EAN: 4047101094572
4290011 - FERRITE, DUAL, AC, CON. ⅞IN.
$414.79
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- All metal housing parts are made of stainless steel
- Mounting on all standard actuators
- Valves can be connected
- 2 x NO contact
- AC 3-wire, 20…250 VDC
- DC 3-wire, 10…300 VDC
- ⅞” male connector
Attributes
| Ambient Temperature | -25…+70 °C |

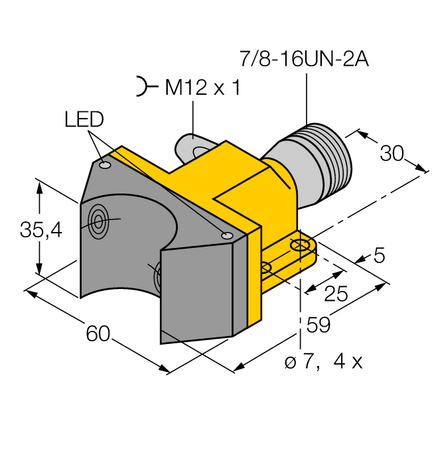

| Construction Size | 59 x 60 x 35.4 mm, DSU35 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, ⅞″ |
| Housing Material | Plastic, PP-GF30, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | 2 x NO contact, 2-wire |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.020 kHz |
Specifications
| SKU | CS3814291 |
|---|---|
| MPN | NI4-DSU35-2ADZ30X2-B1160-FKE4.5 |
| Alternate Part # | 4290011 |
| UPC/EAN | 4047101094572 |
