Turck NI4-DSU35-2ASI2X4-H1140
SKU: CS3814299MPN: NI4-DSU35-2ASI2X4-H1140Alternate Part #: 1902013UPC/EAN: 4047101301601
1902013 - FERRITE, DUAL, FIELDBUS, CON.
$343.71
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- Mounting on all standard actuators
- AS‐Interface V3.0 certified
- Valves can be connected
- 2 x M12 connector
- 18…33 VDC
Attributes
| Ambient Temperature | -25…+70 °C |
| Communication Protocol | AS-Interface |

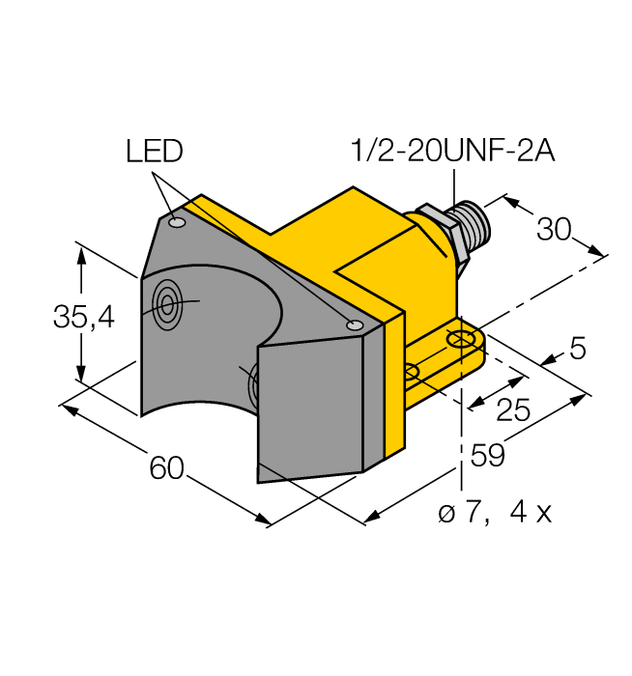

| Construction Size | 59 x 60 x 35.4 mm, DSU35 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PP-GF30, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 18…33 VDC |
| Output Function | 2 x NO contact |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.030 kHz |
Specifications
| SKU | CS3814299 |
|---|---|
| MPN | NI4-DSU35-2ASI2X4-H1140 |
| Alternate Part # | 1902013 |
| UPC/EAN | 4047101301601 |
