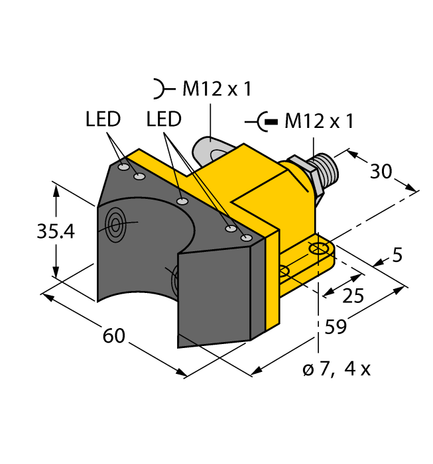

Turck NI4-DSU35-2DNETX5-H1150
SKU: CS3814303MPN: NI4-DSU35-2DNETX5-H1150Alternate Part #: 1569908UPC/EAN: 4047101076011
1569908 - FERRITE, DUAL, FIELDBUS, CON.
$392.89
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- Direct connection to DeviceNet™ networks
- Valves can be connected
- DC 5-wire, 11…25 VDC
- M12 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Communication Protocol | DeviceNet |
| Construction Size | 59 x 60 x 35.4 mm, DSU35 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PP-GF30, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 11…25 VDC |
| Output Function | 2 x NO contact |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.050 kHz |
Specifications
| SKU | CS3814303 |
|---|---|
| MPN | NI4-DSU35-2DNETX5-H1150 |
| Alternate Part # | 1569908 |
| UPC/EAN | 4047101076011 |
