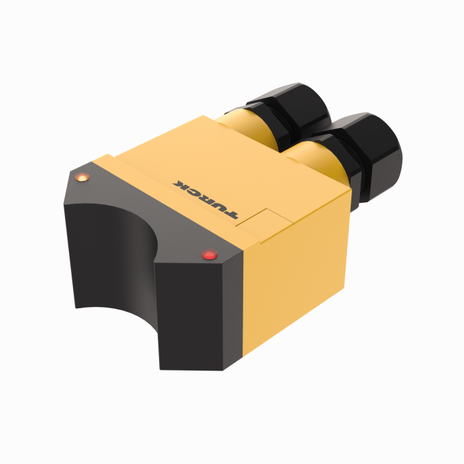

Turck NI4-DSU35TC-2ASIX4
SKU: CS3814308MPN: NI4-DSU35TC-2ASIX4Alternate Part #: 1902005UPC/EAN: 4047101087819
1902005 - FERRITE, DUAL, FIELDBUS, TERMI
$363.18
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- Mounting on all standard actuators
- Valves can be connected
- AS‐Interface, 18…33 VDC
- Terminal chamber
Attributes
| Ambient Temperature | -25…+70 °C |
| Communication Protocol | AS-Interface |

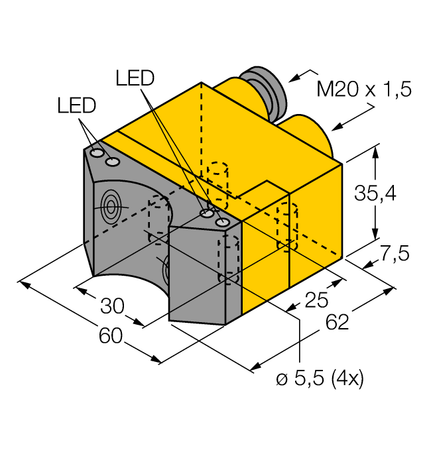

| Construction Size | 62 x 60 x 35.4 mm, DSU35 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Terminal chamber |
| Housing Material | Plastic, PP-GF30, Yellow |
| Mounting | Non-flush |
| Operating Voltage | 18…33 VDC |
| Output Function | 2 x NO contact |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.030 kHz |
Specifications
| SKU | CS3814308 |
|---|---|
| MPN | NI4-DSU35TC-2ASIX4 |
| Alternate Part # | 1902005 |
| UPC/EAN | 4047101087819 |
