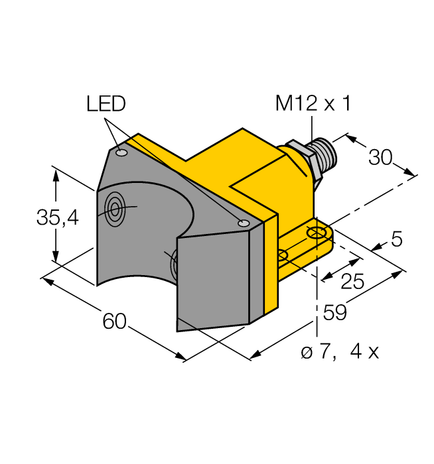

Turck NI4-DSU35-2Y1X2-H1140
SKU: CS3814305MPN: NI4-DSU35-2Y1X2-H1140Alternate Part #: 1051003UPC/EAN: 4047101063905
1051003 - FERRITE, DUAL, NAMUR, CON. M12
$216.38
UnitAvailable on backorder
Product Details
Inductive Sensor
For Rotary Actuators
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- Mounting on all standard actuators
- DC 2-wire, nom. 8.2 VDC
- 2 outputs acc. to DIN EN 60947-5-6 (NAMUR)
- M12 x 1 male connector
- ATEX category II 2 G, Ex Zone 1
- ATEX category II 1 D, Ex Zone 20
- SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
- SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
| Construction Size | 59 x 60 x 35.4 mm, DSU35 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Dual sensor for valve monitoring |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PP-GF30, Yellow |
| Mounting | Non-flush |
| Output Function | NAMUR |
| Protection Class | IP67 |
| Rated Switching Distance | 4 mm |
| Switching Frequency | 0.050 kHz |
Specifications
| SKU | CS3814305 |
|---|---|
| MPN | NI4-DSU35-2Y1X2-H1140 |
| Alternate Part # | 1051003 |
| UPC/EAN | 4047101063905 |
You may also like

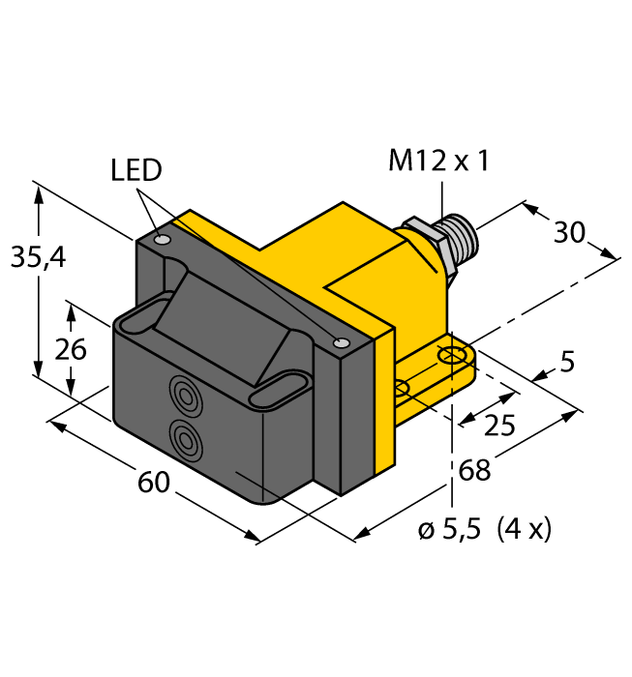

Turck NI4-DSU26-2Y1X2-H1140
$209.07Unit

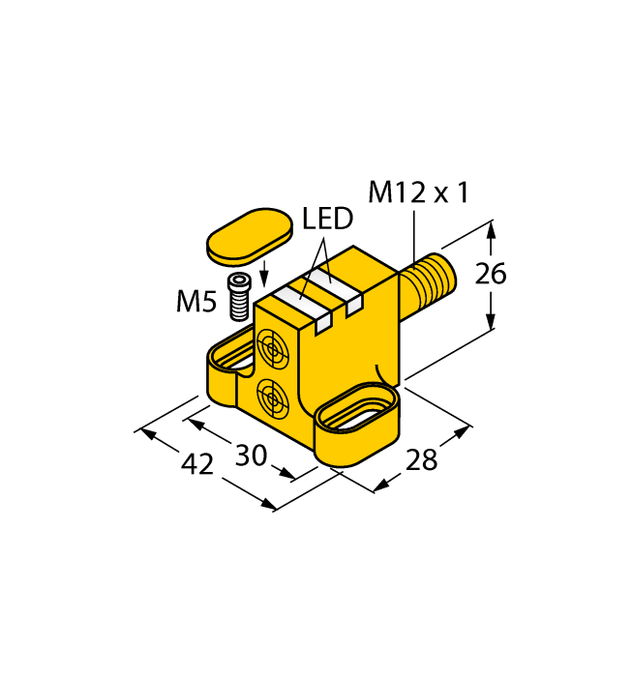

Turck NI4-DSC26-2Y1X2-H1140
$351.72Unit

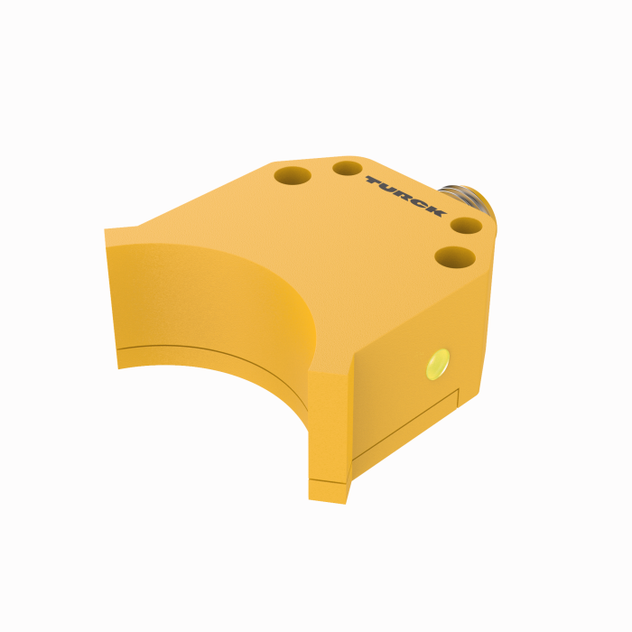

Turck NI4-DS20-2Y1X2-H1140
$197.92Unit

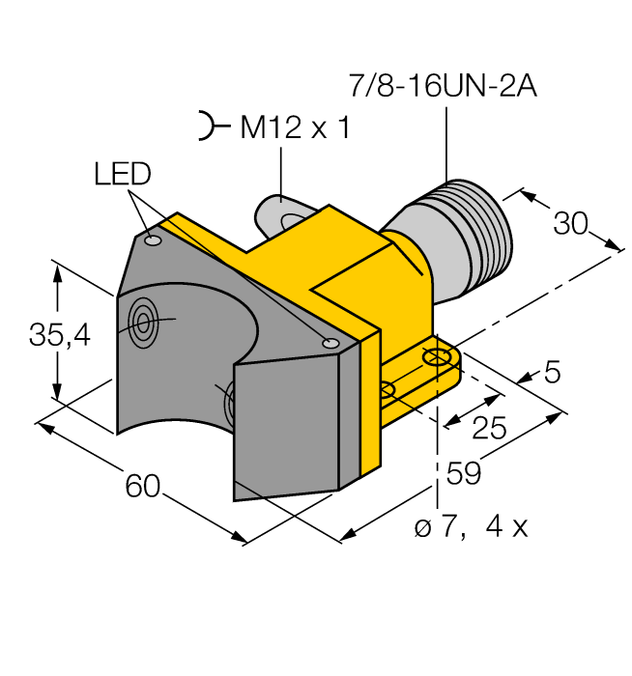

Turck NI4-DSU35-2Y1X2-B1160-FKE4.3
$317.06Unit

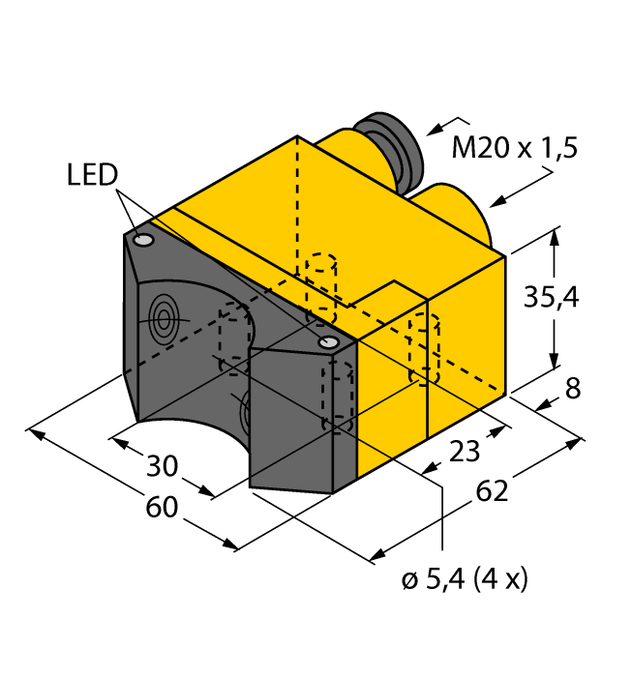

Turck NI4-DSU35TC-2Y1X2
$216.38UnitTurck NI4-DS20-2Y1X2-H1146
$197.92Unit

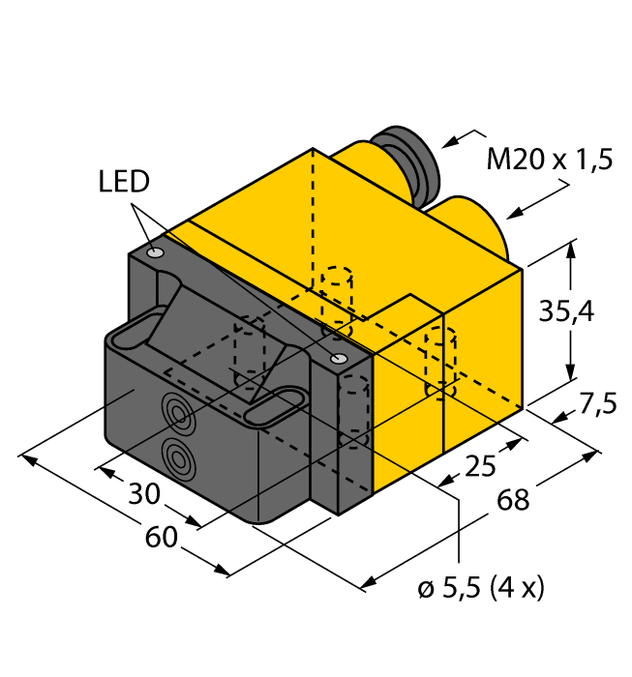

Turck NI4-DSU26TC-2Y1X2
$209.47Unit

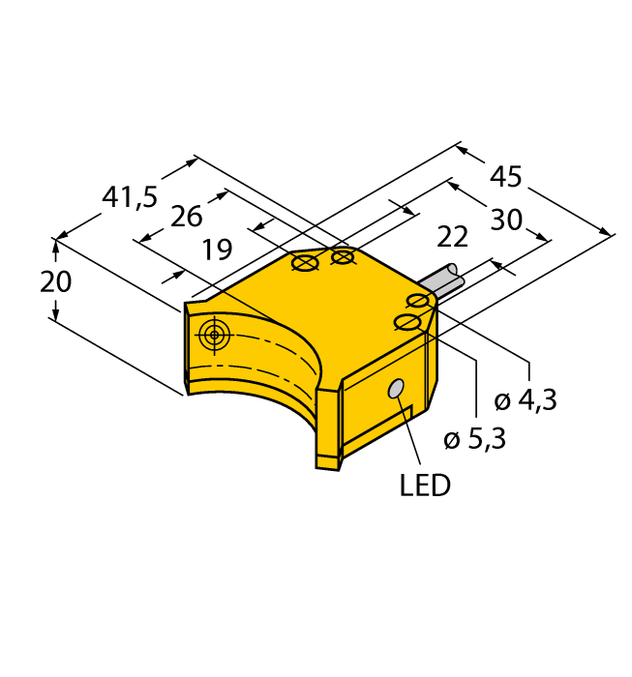

Turck NI4-DS20-2Y1X2
