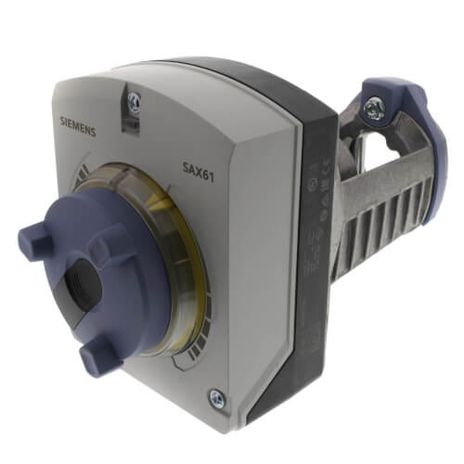

Siemens SAX61.03U
SKU: CS638235MPN: SAX61.03UUPC/EAN: 4034106331474
Flowrite Actuator, 24Vac, 0-10Vdc / 4-20 mA Proportional NSR
$363.47
Unit4 in stock
Product Details

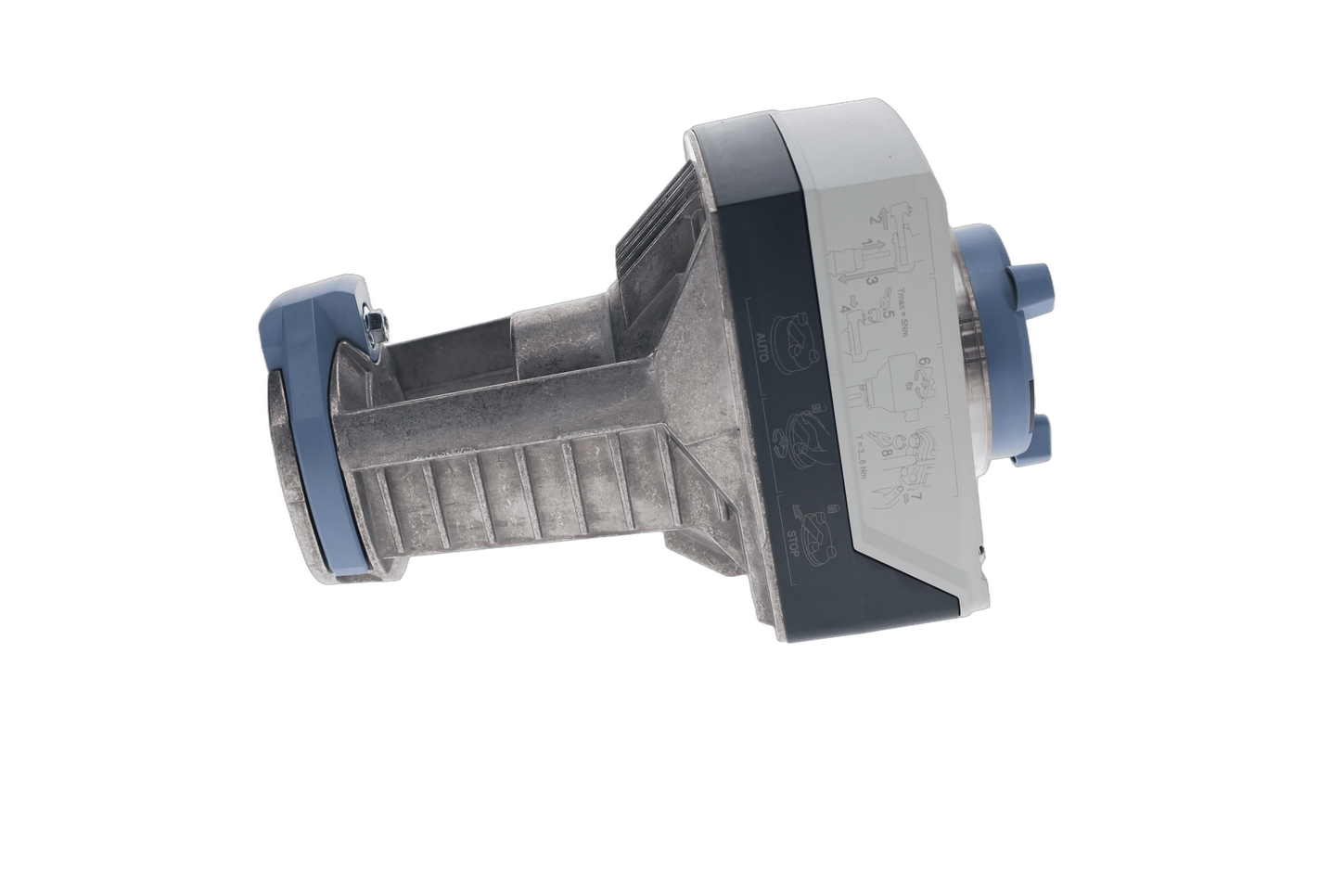

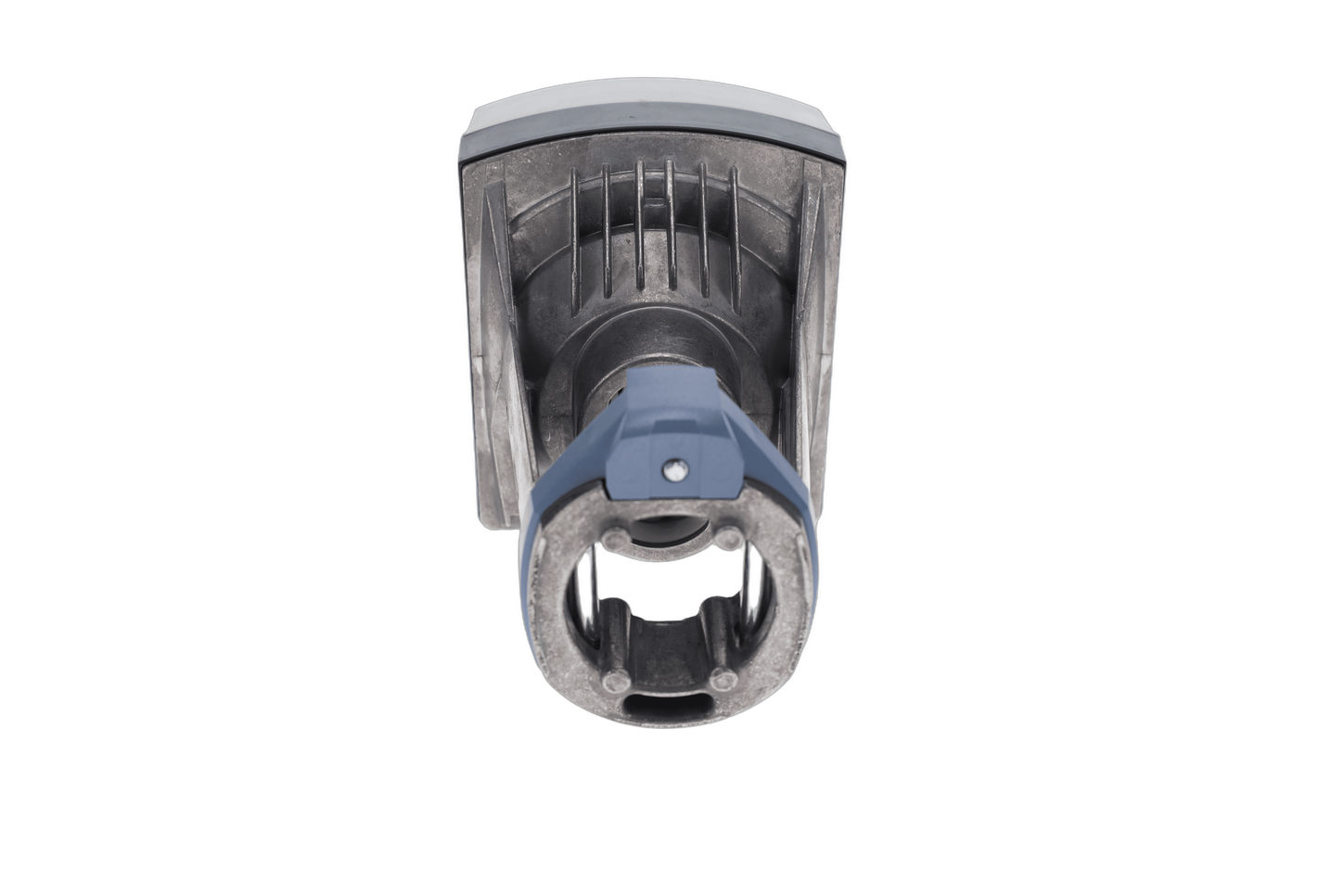

The Flowrite SAX Valve Actuator is used with Flowrite Valves with ¾-inch stroke. This electronic valve actuator requires 24 Vac supply to provide 0 to 10 Vdc or 4-20 mA proportional control of the valve. Other features of this valve actuator include UL listed for plenum installations, direct-coupled installation requires no special tools or adjustments, manual override with visual postion indication, non-spring return, and 180 lb (800N) nominal force with 30 sec run time.
Attributes
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -5…55 °C |
| Fail Safe | No |
| Frequency | 50/60 |
| Medium Temperature | -25…130 °C; -13…266 ºF |
| Medium Temperature F Max | 266 ºF |
| Medium Temperature F Min | -13 ºF |
| Operating Range | DC 0…10 V |
| Operating Voltage | 24 VAC/DC |
| Position Feedback | DC 0…10 V |
| Positioning Time | 30 s |
| Power Consumption | 8 VA |
| Spring Return Function | Non-spring return functionality |
| Stroke | 20 mm |
| Supply Voltage | 24 VAC |
Specifications
| SKU | CS638235 |
|---|---|
| MPN | SAX61.03U |
| UPC/EAN | 4034106331474 |
