ACI C/ARM

Name: ACI C/ARM
Brand: ACI
SKU: CS6287783
Availability: OutOfStock

SKU: CS6287783MPN: C/ARMAlternate Part #: 137061

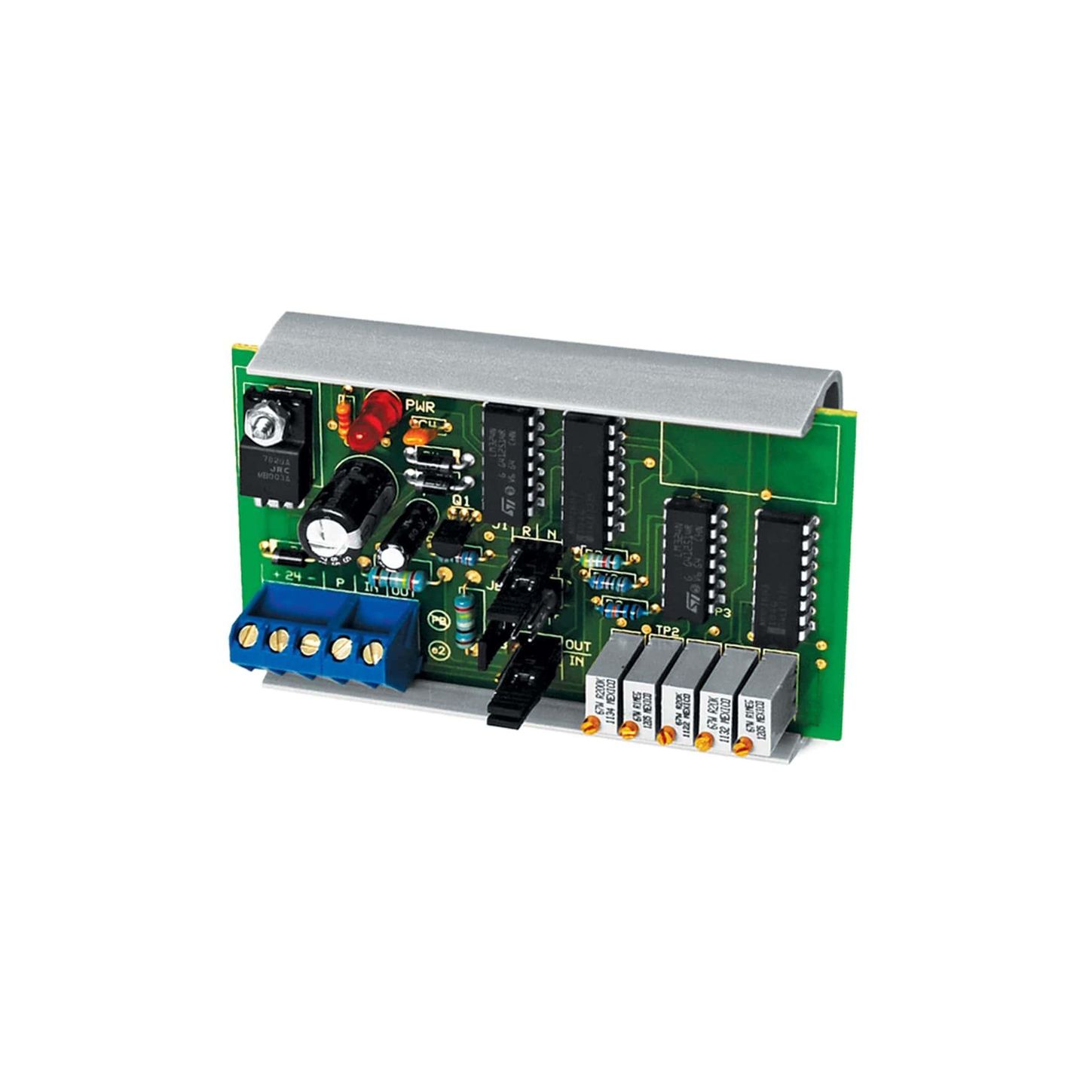

Analog Input, Analog Output, Factory Set Rescaling Module

Product Details

Analog Input, Analog Output, Factory Set Rescaling Module

Configuration Modification	Factory Calibrated For Customer Specific Input/Output

Accuracy	+/- 1%
Wire Size	12 (3.31 mm2) to 22 AWG (0.33 mm2)
Connections	45° Captive screw Terminal Blocks
Product Weight	0.200 lbs. (0.0907 Kg)
Supply Current	200 mA maximum
Supply Voltage	24 VAC or 24 VDC, (+/- 10%), 50/60 Hz
Agency Approvals	RoHS2, WEEE
Product Dimensions	(L) 3.69” (W) 2.17” (H) 1.00” (93.73 x 55.12 x 25.54 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Output Signal Offset	0.25 to 20 VDC
Operating Humidity Range	10 to 95% non-condensing
Output Signal Attenuation	0 to 100%
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Output Current Signal Load	750Ω @ 20 mA
Output Voltage Signal Load	3300Ω @ 20 VDC +/- 10% / 400Ω @ 10 VDC +/- 10%
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Output Signal Inversion (RA)	20 to 0.25 VDC (nominal)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Input Resistance Signal Range	0 to 500,000Ω
Regulated Power Output (User)	20 VDC +/- 10%, 30 mA maximum
Snaptrack Flammability Rating	UL94 V-0
Field Adjustable “Operate” Range	Multi-turn potentiometers
Output Current Adjustable Signal Ranges	44 mA maximum, Signal Gain 1 to 25 times (nominal) depending on input value
Input Current Signal Range (@ Impedance)	0 to 44 mA @ 250Ω
Input Voltage Signal Range (@ Impedance)	0-35 VDC @ 1,000,000Ω
Output Voltage Signal Range (@ Impedance)	0.25 VDC minimum to 20 VDC maximum
