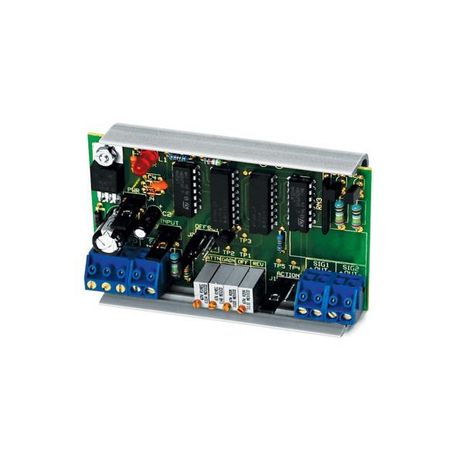

ACI ARM2
SKU: CS5806456MPN: ARM2Alternate Part #: 102029
Analog Input(VDC or mA), Dual Analog Output (mA), Analog Rescaling Module (Signal Splitter)
$142.86
UnitAvailable on backorder
Product Details
Analog Input(VDC or mA), Dual Analog Output (mA), Analog Rescaling Module (Signal Splitter)
Product Family Specifications
| Accuracy | Less than or equal to 1% of output span over full temperature range when using 1:1 input to output | Accuracy is calibration dependent over full temperature range |
|---|---|
| Wire Size | 12 (3.31 mm2) to 22 AWG (0.33 mm2) |
| Connections | 45° Captive screw Terminal Blocks |
| Product Weight | 0.231 lbs. (0.104 Kg) |
| Supply Current | 100 mA maximum |
| Supply Voltage | 22.8 to 30 VDC, 21.6 to 26.4 VAC |
| Agency Approvals | RoHS2, WEEE |
| Operating RH Range | 10 to 95% non-condensing |

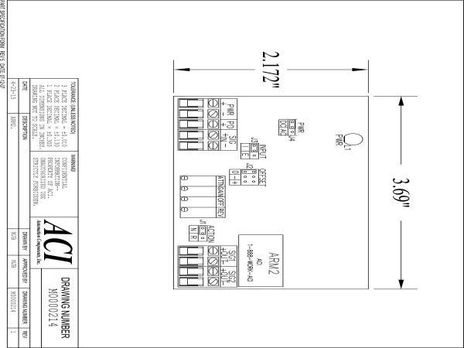

| Product Dimensions | (L) 3.69” (W) 2.17” (H) 1.00” (93.73 x 55.12 x 25.54 mm) |
| Snaptrack Material | Polyvinyl Chloride (PVC) |
| Output Signal Offset | 0.25 to 20 VDC |
| Field Selectable Ranges | Multi-turn potentiometers |
| Output Signal Attenuation | 0 to 100% |
| Storage Temperature Range | -20 to 150°F (-28.9 to 65.5°C) |
| Output Current Signal Load | 750Ω @ 20 mA |
| Operating Temperature Range | 35 to 120°F (1.7 to 48.9°C) |
| Output Signal Inversion (RA) | 20 to 0 mA (nominal) |
| Terminal Block Torque Rating | 0.5 Nm (Minimum); 0.6 Nm (Maximum) |
| Input Resistance Signal Range | 0 to 500,000Ω |
| Regulated Power Output (User) | 23 VDC nominal @ 24 VAC Power Supply, 30 mA maximum |
| Snaptrack Flammability Rating | UL94 V-0 |
| Output Current Adjustable Signal Ranges | Signal Gain 1 to 20 times (nominal) depending on input value |
| Input Current Signal Range (@ Impedance) | 0 to 44 mA @ 250Ω |
| Input Voltage Signal Range (@ Impedance) | 0-35 VDC @ 1,000,000Ω |
Specifications
| SKU | CS5806456 |
|---|---|
| MPN | ARM2 |
| Alternate Part # | 102029 |
