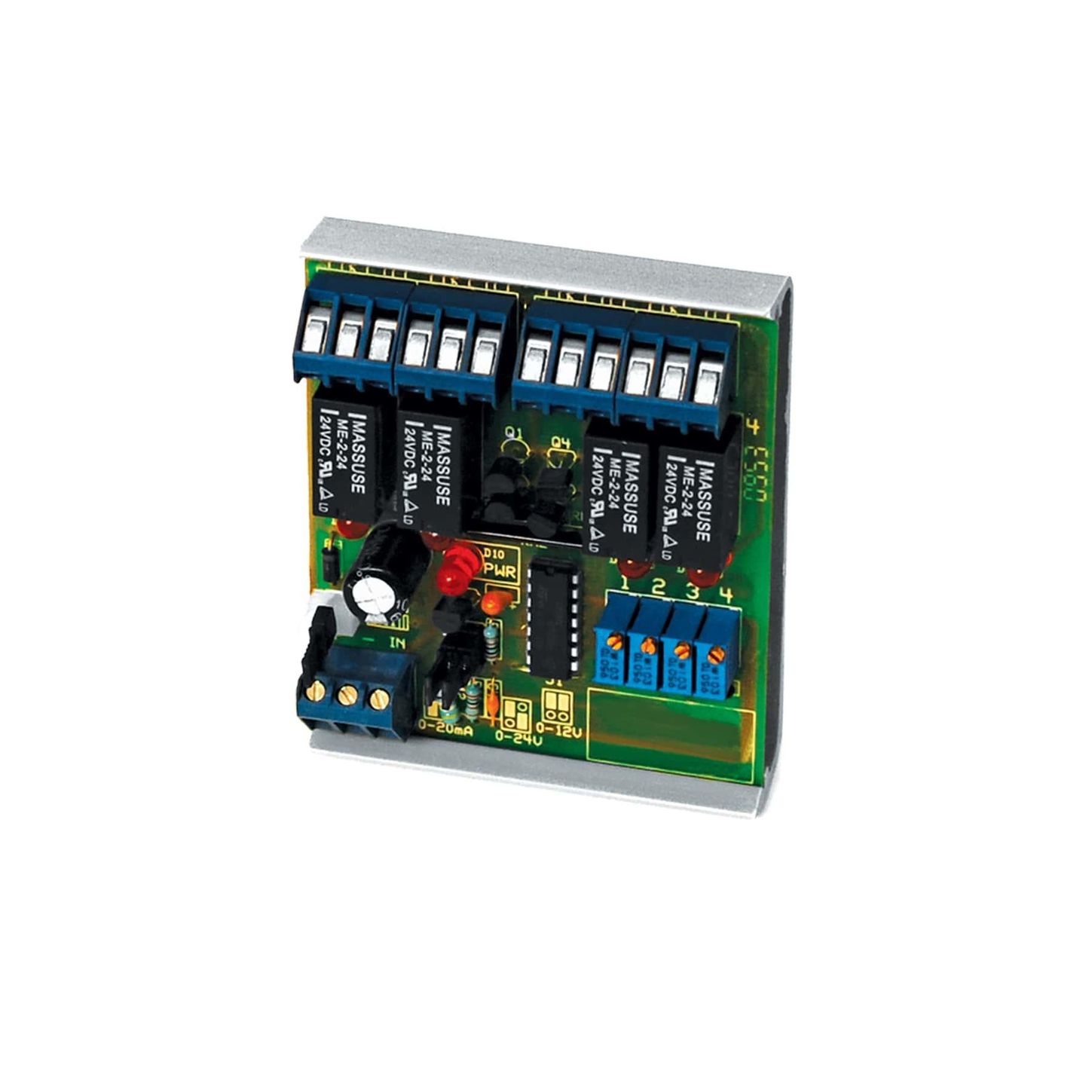

ACI ATL-DB-10%

Name: ACI ATL-DB-10%
Brand: ACI
SKU: CS6286908
Availability: OutOfStock

SKU: CS6286908MPN: ATL-DB-10%Alternate Part #: 129663

Analog Input, Relay Output, 4 (SPDT) Relays, 10% Deadband

Product Details

Analog Input, Relay Output, 4 (SPDT) Relays, 10% Deadband

Number Of Relays	4 Relays (10% Deadband)

Wire Size	12 (3.31 mm2) to 22 AWG (0.33 mm2
Connections	45° Captive screw Terminal Blocks
Product Weight	0.25 lbs. (0.113 kg)
Supply Current	180 mA maximum
Supply Voltage	24 VAC (+/- 10%), 50/60 Hz or 22-28 VDC
Agency Approvals	RoHS2, WEEE
Operating RH Range	10 to 95% non-condensing
Product Dimensions	(L) 2.75” (69.85 mm) x (W) 3.25” (82.55 mm) x (H) 1.00” (25.4 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Digital Output Type	Four SPDT Form “C” Relays
Relay Contact Rating	2A @ 24 VDC, 0.5A @ 240 VAC
Relay Electrical Life	100,000 operations @ 1A
Relay Mechanical Life	10,000,000 operations
Deadband (0-20 mA Signal)	3% Version (Standard): 0.66 mA \| 10% Version: 2.0 mA
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Deadband (0-12 VDC Signal)	3% Version (Standard): 0.33 VDC \| 10% Version: 1.0 VDC
Deadband (0-24 VDC Signal)	3% Version (Standard): 0.66 VDC \| 10% Version: 2.0 VDC
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Snaptrack Flammability Rating	UL94 V-0
Input Current Signal Range (@ Impedance)	0-20 mA @ 500Ω
Input Voltage Signal Range (@ Impedance)	0 to 12 VDC @ 10MΩ, 0 to 24 VDC @ 20,000Ω
