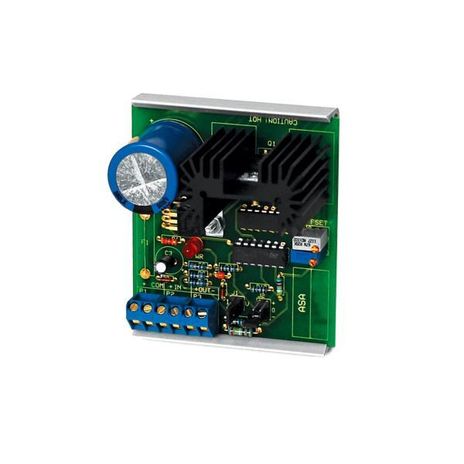

ACI ASA

SKU: CS6285282MPN: ASAAlternate Part #: 102030

Analog Input, Analog Output, Analog Signal Amplifier

Product Details

Analog Input, Analog Output, Analog Signal Amplifier

Power	2A or 30 Watts maximum
Accuracy	+/- 2% Full Scale Output
Wire Size	12 (3.31 mm2) to 22 AWG (0.33 mm2)
Connections	45° Captive screw Terminal Blocks
Product Weight	0.34 lbs. (0.156 Kg)
Supply Current	50A nominal with no load, 2.05A maximum (Dependent on Load Impedance)
Supply Voltage	24 VAC +10%/-5% (0-20 VDC out), 24 VDC +/- 10% (0-18 VDC out) 25-30 VDC (0-20 VDC out)
Agency Approvals	RoHS2, WEEE

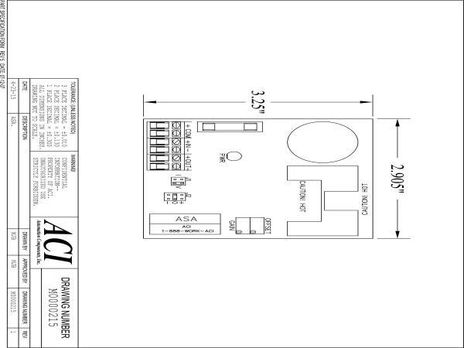

Product Dimensions	(L) 3.25” (W) 2.90” (H) 1.57” (82.55 x 73.66 x 39.88 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Output Signal Offset	Zero Offset, Positive Offset, Negative Offset
Output Load Resistance	10Ω minimum
Operating Humidity Range	5 to 95% non-condensing
Storage Temperature Range	-40 to 150°F (-28.9 to 65.5°C)
Output Voltage Signal Gain	1-20 times (output can’t exceed 20 VDC)
Operating Temperature Range	-40 to 150°F (-40 to 65°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Input Resistance Signal Range	0 to 500,000Ω
Snaptrack Flammability Rating	UL94 V-0
Input Current Signal Range (@ Impedance)	0 to 44 mA @ 250Ω
Input Voltage Signal Range (@ Impedance)	0 to 20 VDC @ 200,000Ω
Output Voltage Signal Range (@ Impedance)	0 to 20 VDC
