Name: ACI AIM2
Brand: ACI
SKU: CS2234296
Availability: OutOfStock

SKU: CS2234296MPN: AIM2Alternate Part #: 101794

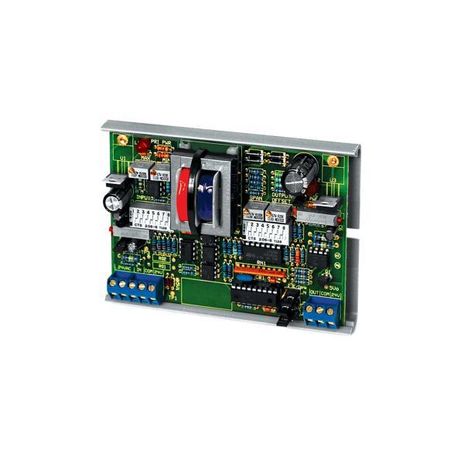

Analog Input, Analog Output, Analog Isolation Module w/ Rescaling

Product Details

Analog Input, Analog Output, Analog Isolation Module w/ Rescaling

Product Family Specifications

Accuracy	+/- 3%
Linearity	+/- 1%
Wire Size	12 (3.31 mm2) to 22 AWG (0.33 mm2)
Connections	45° Captive screw Terminal Blocks
Current Offset	From 0 to 20 mA
Product Weight	0.525 lbs. (0.238 Kg)
Supply Current	200 mA maximum
Supply Voltage	24 VAC (+/- 10%), 50/60 Hz
Agency Approvals	RoHS2, WEEE
Operating RH Range	10 to 95% non-condensing

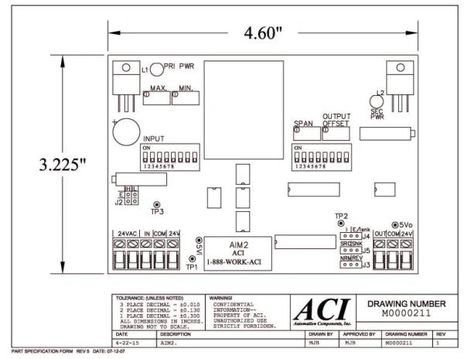

Product Dimensions	(L) 4.60” (W) 3.23” (H) 1.20” (116.84 x 81.90 x 30.48 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Input Current Impedance	250Ω +/-1%
Input Voltage Impedance	9,500Ω
Analog Optical Isolation	600VAC / 1500 VDC Maximum
Output Current Impedance	500Ω
Output Voltage Impedance	5,000Ω
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Snaptrack Flammability Rating	UL94 V-0
Input Current Signal Preset Ranges	0-20 mA, 4-20 mA, 0-1 mA
Input Voltage Signal Preset Ranges	0-5V, 0-10V, 0-15V, 0-20V, 1-5V, 2-10V, 3-15V, 4-20V, 0-1V
Output Current Signal Preset Ranges	0-20 mA, 4-20 mA
Output Voltage Signal Preset Ranges	0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC
Input Signal Adjustable Current Span	4 mA (Minimum) to 20 mA (Maximum)
Input Signal Adjustable Voltage Span	1 VDC (Minimum) to 20 VDC (Maximum)
Output Signal Adjustable Current Span	0 mA (Minimum) to 20 mA (Maximum)
Output Signal Adjustable Voltage Span	1 VDC (Minimum) to 20 VDC +/- 1 VDC (Maximum)
Input Signal Adjustable Voltage Offset	From 0 to 20 VDC
Output Signal Adjustable Current Offset	From 0 to 20 mA
Output Signal Adjustable Voltage Offset	From 0 to 10 VDC
