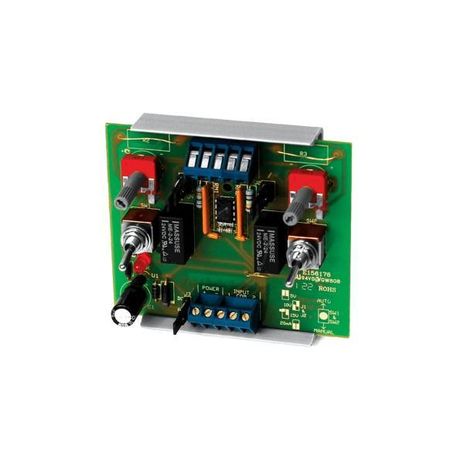

ACI MAO

SKU: CS6285305MPN: MAOAlternate Part #: 102588

Analog Input, Analog Output, Manual Analog Override Switch w/ Alarm

Product Details

Analog Input, Analog Output, Manual Analog Override Switch w/ Alarm

Accuracy	+/- 4% of maximum output
Wire Size	16 (1.31 mm2) to 26 AWG (0.129 mm2)
Connections	45° Captive Screw Terminal Blocks
Product Weight	(L) 3.75” (W) 3.25” (H) 1.25” (95.25 x 82.55 x 31.75 mm)
Supply Current	100 mA maximum
Supply Voltage	24 VAC or 24 VDC, +/- 10%
Agency Approvals	RoHS2, WEEE
Operating RH Range	10 to 95% non condensing
Product Dimensions	(L) 3.75” (W) 3.25” (H) 1.25” (95.25 x 82.55 x 31.75 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Alarm Output (Feedback)	N.O. in auto, N.C. in manual (optional: N.C. in auto, N.O. in manual)
Storage Temperature Range	0 to 150°F (-17.8 to 65.5°C)
Alarm Output Current Rating	2A maximum
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Override Analog Input Current	2A maximum (Manual Mode)
Snaptrack Flammability Rating	UL94 V-0
Override Analog Output Current	2A maximum or same as override input (Auto Mode)
Optional Resistive Alarm Output	3 Watts or 2A maximum (state resistance value when ordering)
Override Analog Input Voltage Range	0-24 VDC
Override Analog Input (Selectable) Range (@ Impedance)	0-5 VDC @ 250Ω minimum 0-10 VDC @ 500Ω minimum 0-15 VDC @ 750Ω minimum 0-20 mA @ 750Ω maximum
