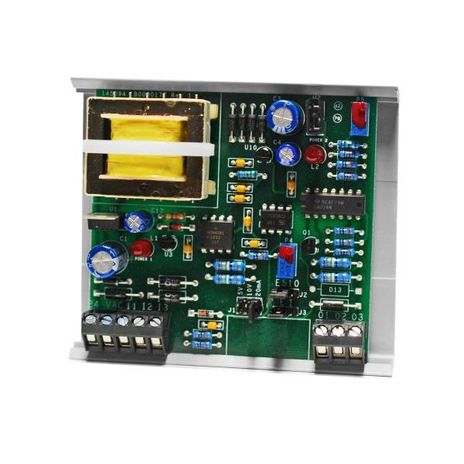

ACI AIM1.1

Name: ACI AIM1.1
Brand: ACI
SKU: CS5807355
Availability: OutOfStock

SKU: CS5807355MPN: AIM1.1Alternate Part #: 145185

Analog Input, Analog Output, Analog Isolation Module, 1:1

Product Details

Analog Input, Analog Output, Analog Isolation Module, 1:1

Linearity	+/- 1%
Wire Size	12 (3.31 mm2) to 22 AWG (0.33 mm2)
Connections	45° Captive screw Terminal Blocks
Product Weight	0.425 lbs (0.193 kg)
Supply Current	250 mA Maximum
Supply Voltage	24 VAC (+/- 10%), 50/60 Hz
Agency Approvals	RoHS 3 Directive 2015/863/EU, WEEE
Operating RH Range	15 to 90% non-condensing
Product Dimensions	(L) 3.25” (W) 3.42” (H) 1.50” (82.55 x 86.87 x 38.1 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Voltage Mode Accuracy	+/- 1%
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Current Sink Mode Accuracy	+/- 2%
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Current Source Mode Accuracy	+/- 1%
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Snaptrack Flammability Rating	UL94 V-0
Input Current Signal Range (@ Impedance)	0-20 mA @ 249Ω
Input Voltage Signal Range (@ Impedance)	0 to 5 VDC @ 20,000Ω, 0 to 10 VDC @ 20,000Ω
Output Current Signal Range (@ Impedance)	0-20 mA (Source or Sink) @ 500Ω (Maximum Load Resistance)
Output Voltage Signal Range (@ Impedance)	0 to 5 VDC @ 5,000, 0 to 10 VDC @ 5,000
