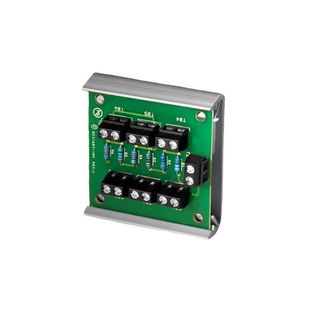

ACI 6N1-ISO-STG

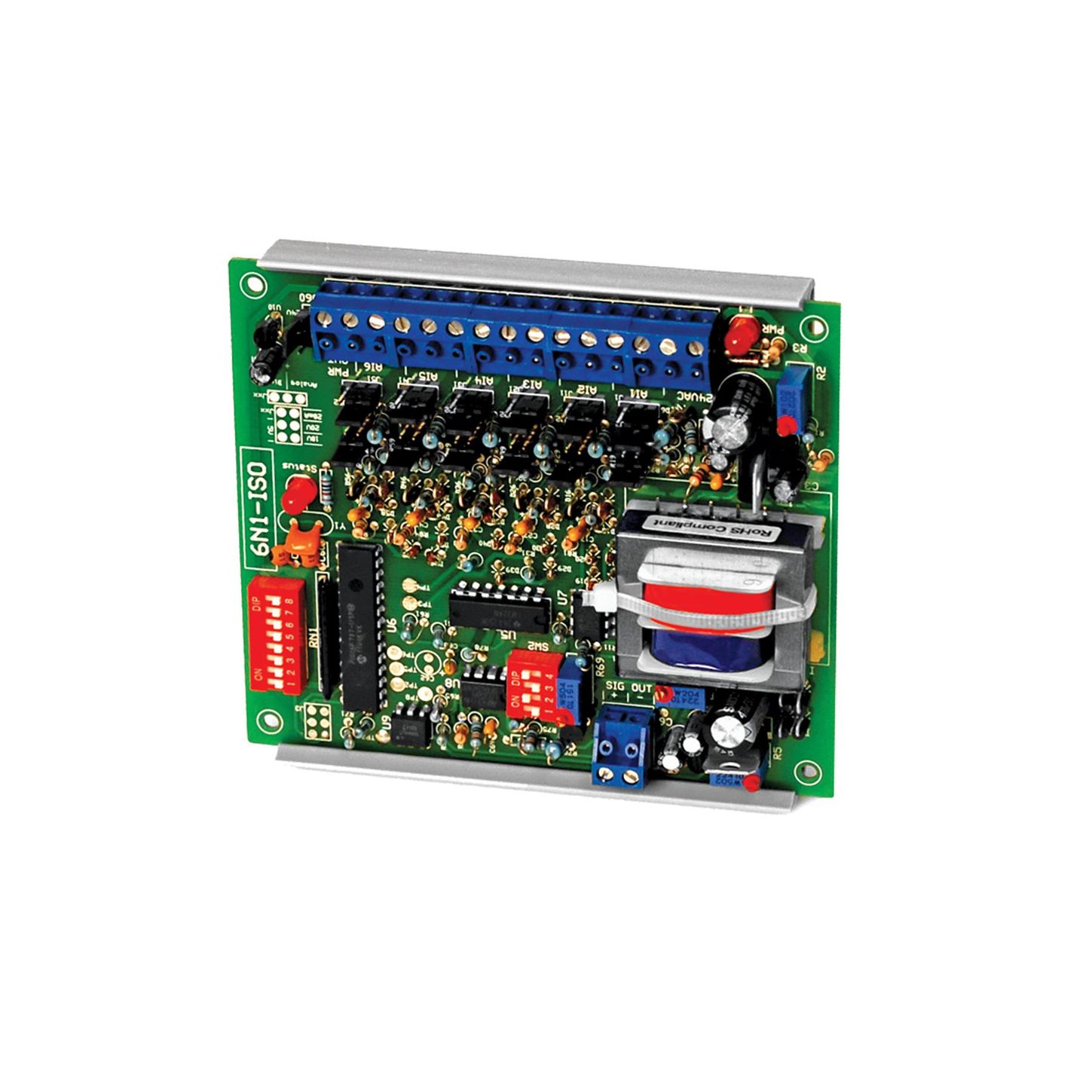

Name: ACI 6N1-ISO-STG
Brand: ACI
SKU: CS6290495
Availability: OutOfStock

SKU: CS6290495MPN: 6N1-ISO-STGAlternate Part #: 148420

6 Digital Inputs to 1 Analog Output, Stage Control (Stage Control)

Product Details

6 Digital Inputs to 1 Analog Output, Stage Control (Stage Control)

Input	Digital Input

Wire Size	16 (1.31 mm2) to 26 AWG (0.129 mm2)
Resolution	64 steps of resolution
Connections	90° Pluggable Screw Terminal Blocks
Power Output	24 VDC or 15 VDC (Jumper Selectable)
Supply Current	255 mA maximum (6.12VA with a 24 volt power supply)
Supply Voltage	24 VAC (+/- 10%), 50/60 Hz
Operating RH Range	10 to 90% non-condensing
Product Dimensions	(L) 4.00” (W) 4.60” (H) 1.00” (101.6 x 116.84 x 25.4 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Product Functions(6N1-ISO)	Average, Highest, Lowest, Sum, Difference
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Power Output (Supply Current)	100 mA maximum
Snaptrack Flammability Rating	UL94 V-0
Product Functions (6N1-ISO-STG)	Stage Control
One Analog Signal Output (@ Impedance)	0-5 VDC @ 1000Ω \| 0-10 VDC @ 1000Ω \| 0-20 VDC @ 1000Ω \| 0-20 mA @ 500Ω maximum
Output Signal Accuracy (24 VAC, 50 Hz)	+/- 2% of full scale
Input Mode (Digital/Binary) (6N1-ISO \& 6N1-ISO-STG)	15 VDC, 24 VDC or 24 VAC +/-10% @ 100,000Ω
Input Current Signal Range/Input Impedance (6N1-ISO)	0-20 mA @ 249Ω
Input Voltage Signal Range/Input Impedance (6N1-ISO)	0 to 5 VDC @ 1MΩ, 0 to 10 VDC @ 20,000Ω, 0 to 20 VDC @ 10,000Ω
