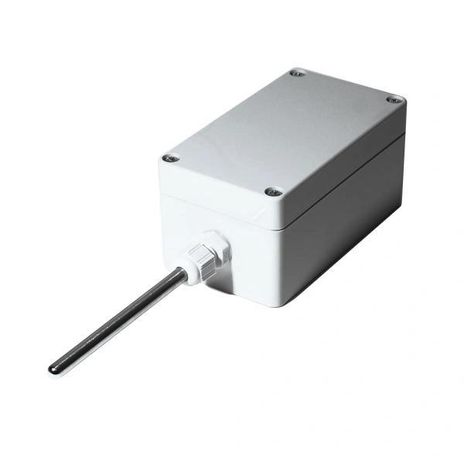

ACI OST2630A

Name: ACI OST2630A
Brand: ACI
SKU: CS6287045
Availability: OutOfStock

SKU: CS6287045MPN: OST2630AAlternate Part #: 130815

Wireless, Wireless Temp, Outdoor, NEMA 4X Enclosure

Product Details

Wireless, Wireless Temp, Outdoor, NEMA 4X Enclosure

Accuracy	+/- 1ºF (+/- 0.555ºC) 12 bit resolution
Probe Length	3.25” (82.55 mm)
Data Protocol	IEEE 802.15.4-2003/2006
Input Voltage	Battery; 1 (Duracell DL123A), Lithium 3V 1400 mAh 45 mA maximum
Probe Diameter	0.250” (6.35 mm)
Probe Material	304 Stainless Steel
Product Weight	0.80 lbs (0.36 kg)
Fitting Material	Polyamide 6 plastic; flammability rating UL94 V-2
Data Transmission	75 seconds (default) \| 300 seconds (optional)

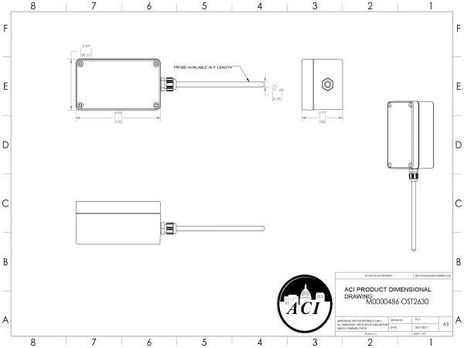

Product Dimensions	(L) 4.52” (114.81 mm) x (W) 2.55” (64.77 mm) x (H) 2.16” (54.86 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11 dBm
Transmission Distance	200 – 300 ft horizontally depending on building type and construction, and typically one floor above and below the transceiver vertically
Operating Humidity Range	5 to 65%, Non-condensing
Storage Temperature Range	Temperature: 0 to 176ºF (-17 to 80ºC) \| Humidity: 5 to 65%, Non-condensing
Operating Temperature Range	14 to 140ºF (-10 to 60ºC)
Sensor Operating Temperature Range	40 to 200ºF (-40 to 93ºC)
Enclosure Material \| Flammability Rating	Polycarbonate Plastic \| UL94-HB
