ACI DT2650A

Name: ACI DT2650A
Brand: ACI
SKU: CS6287075
Availability: OutOfStock

SKU: CS6287075MPN: DT2650AAlternate Part #: 131032

Wireless, Wireless Temp, Averaging, 24’

Product Details

Wireless, Wireless Temp, Averaging, 24’

Accuracy	+/- 1ºF (+/- 0.555ºC) 12 bit resolution
Cable Size	24’ (7.32M) CL3P; 18 AWG, 4 conductor
Battery Life	2-3 years typical
Data Protocol	IEEE 802.15.4-2003/2006
Input Voltage	Battery; 1 (Duracell DL123A), Lithium 3V 1400 mAh 45 mA maximum
Product Weight	0.35 lbs (0.16 kg)
Data Transmission	75 seconds (default) \| 300 seconds (optional)

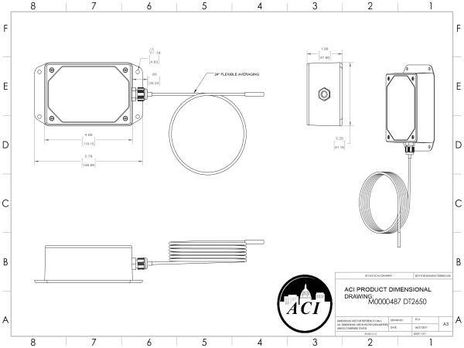

Product Dimensions	(L) 5.77” (146.56 mm) x (W) 3.19” (81.03 mm) x (H) 1.88” (47.75 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11 dBm
Number Sensing Points	9 sensing points
Transmission Distance	200 – 300 ft horizontally depending on building type and construction, and typically one floor above and below the transceiver vertically
Operating Humidity Range	5 to 65%, Non-condensing
Storage Temperature Range	0 to 176ºF (-17 to 8ºC), 5 to 65% RH, Non-condensing
Operating Temperature Range	14 to 140ºF, (0 to 60ºC)
Sensor Operating Temperature Range	-40 to 200ºF (-40 to 93ºC)
Enclosure Material \| Flammability Rating	ABS Plastic \| UL94-5VA
