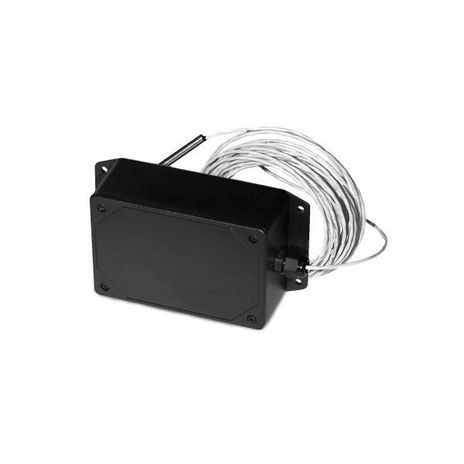

ACI SST2630A

Name: ACI SST2630A
Brand: ACI
SKU: CS6287417
Availability: OutOfStock

SKU: CS6287417MPN: SST2630AAlternate Part #: 133986

Wireless, Temp, Strap on/Remote

Product Details

Wireless, Temp, Strap on/Remote

Enclosure	Standard

Accuracy	+/- 1ºF (+/- 0.555ºC) 12 bit resolution
Cable Size	20’ (6.09m) \| CL2P plenum rated
Battery Life	2-3 years typical
Probe Length	Length: 2” (50.8 mm) \| Diameter: 0.25”(6.35mm) \| Material: 304 stainless steel
Data Protocol	IEEE 802.15.4-2003/2006
Input Voltage	Battery; 1 (Duracell DL123A), Lithium 3V 1400 mAh 45 mA maximum
Sensing Range	-40 to 200ºF (-40 to 93ºC)
Product Weight	Standard: 0.95 lbs (0.43 kg) \| NEMA 4X: 0.95 lbs (0.43 kg)
Fitting Material	Nylon 6/6, Flammability rating UL94V-2
Data Transmission	75 seconds (default) \| 300 seconds (optional)
Product Dimensions	Standard: (L) 5.77” (146.56 mm) x (W) 3.19” (81.03 mm) x (H) 1.88” (47.75 mm) NEMA 4X: (L) 4.52” (114.81 mm) x (W) 2.55“ (64.77 mm) x (H) 2.16” (54.86 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11 dBm
Transmission Distance	200 – 300 ft horizontally depending on building type and construction and typically one floor above and below the transceiver vertically
Operating Humidity Range	5 to 65%, Non-condensing
Storage Temperature Range	0 to 176ºF (-17 to 80ºC), 5 to 65% RH, Non-condensing
Operating Temperature Range	14 to 140ºF (-10 to 60ºC)
Enclosure Material \| Flammability Rating	Standard: ABS Plastic \| UL 94 \| NEMA 4X: Polycarbonate Plastic \| UL94-HB
