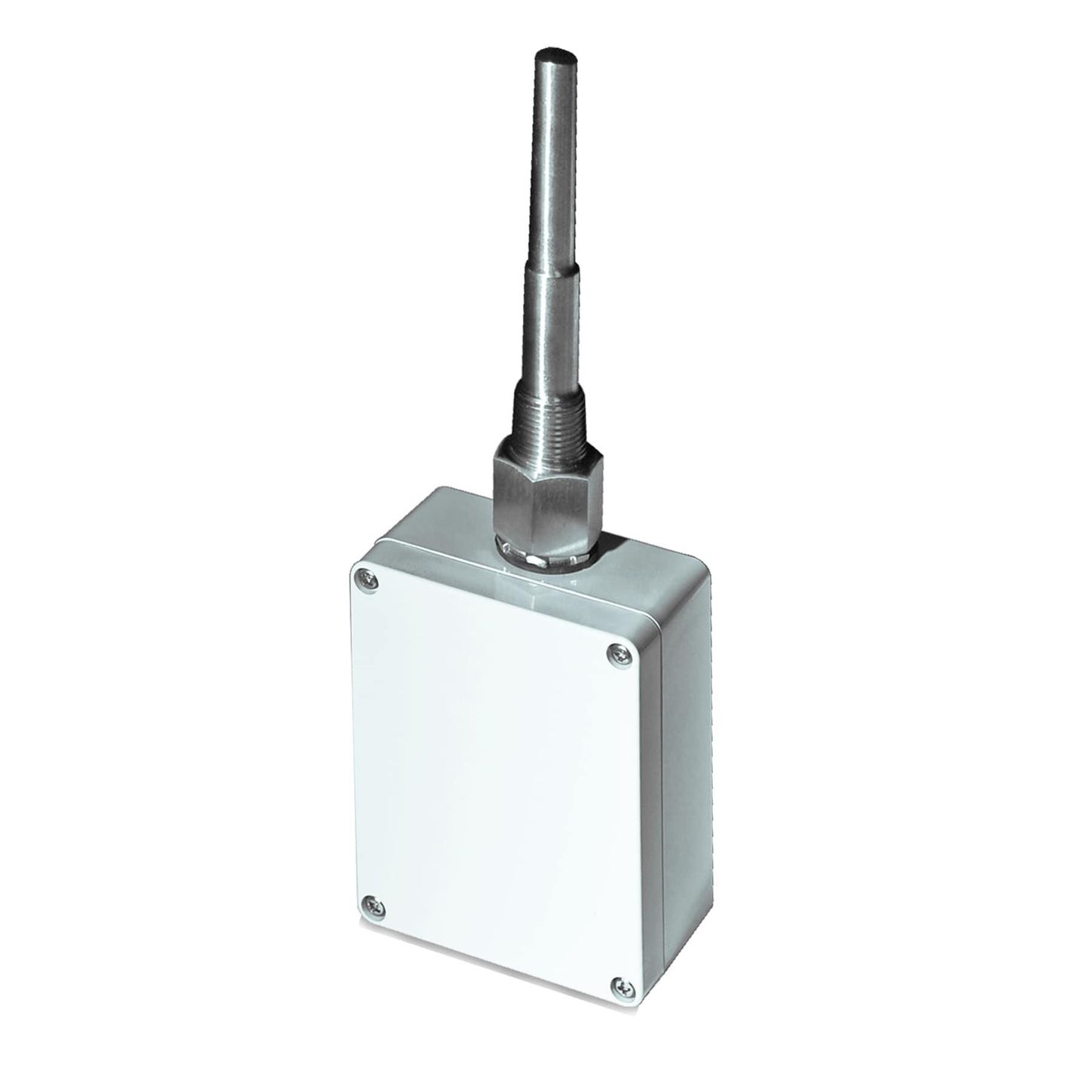

ACI FT2630AE-02-SS

Name: ACI FT2630AE-02-SS
Brand: ACI
SKU: CS6288642
Availability: OutOfStock

SKU: CS6288642MPN: FT2630AE-02-SSAlternate Part #: 142363

Wireless, Temp, Immersion, 2.5”, With Thermowell, NEMA 4X Enclosure

Product Details

Wireless, Temp, Immersion, 2.5”, With Thermowell, NEMA 4X Enclosure

Product Configuration

Enclosure	NEMA 4X
Insertion Length	2.5”

Product Family Specifications

Accuracy	+/- 1ºF (+/- 0.555ºC) 12 bit resolution
Battery Life	2-3 years typical
Probe Length	2.5”, 4”, \& 6“
Data Protocol	IEEE 802.15.4-2003/2006
Input Voltage	Battery; 1 (Duracell DL123A), Lithium 3V 1400 mAh 45 mA maximum
Sensing Range	-40 to 200ºF (-40 to 93ºC)
Probe Diameter	0.250” (6.35mm)
Probe Material	304 Stainless Steel
Product Weight	FT2630A-02: 0.98 lbs (0.45 kg) FT2630A-04-SS: 1.29 lbs (0.59 kg) FT2630AE-06: 2.83 lbs (1.28 kg) FT2630A-04: 0.99 lbs (0.45 kg) FT2630A-06-SS: 1.30 lbs (0.59 kg) FT2630AE-02-SS: 3.11 lbs (1.41 kg) FT2630A-06: 1.00 lbs (0.45 kg) FT2630AE-02: 2.81 lbs (1.27 kg) FT2630AE-04-SS: 3.17 lbs (1.44 kg) FT2630A-02-SS: 1.28 lbs (0.58 kg) FT2630AE-04: 2.82 lbs (1.28 kg) FT2630AE-06-SS: 3.23 lbs (1.47 kg)
Data Transmission	75 seconds (default) \| 300 seconds (optional)
Enclosure Material	Standard: UL94 NEMA 4X: UL94-HB
Product Dimensions	Standard: (L) 5.77” (146.56 mm) x (W) 3.19” (81.03 mm) x (H) 1.88” (47.75 mm) NEMA 4X: (L) 4.52” (114.81 mm) x (W) 3.54” (89.92 mm) x (H) 2.16” (54.86 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11dBm
Transmission Distance	200 – 300 ft horizontally depending on building type and construction, and typically one floor above and below the transceiver vertically
Operating Humidity Range	5 to 65%, Non-condensing
Operating Temperature Range	14 to 140ºF (-10 to 60ºC)
Storage Temperature \| RH Range	Temperature: 0 to 176ºF (-17 to 80ºC) \| Humidity: 5 to 65%, Non-condensing
Fitting Material \| Flammability Rating	ST801A Polyamide 66 Plastic (PA66) toughened “Zytel”, UL94-HB
Thermowell Instrument Thread \| Process Thread	304 Stainless Steel, ½” NPT Process Threads, ½” NPS Instrument Threads
