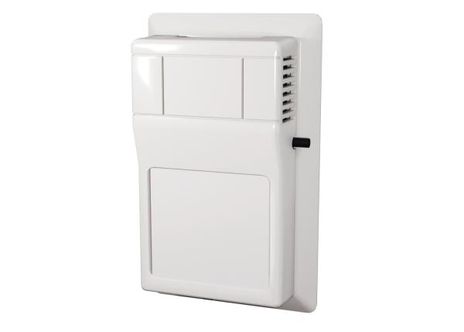

ACI WT2630C

Name: ACI WT2630C
Brand: ACI
SKU: CS6287029
Availability: OutOfStock

SKU: CS6287029MPN: WT2630CAlternate Part #: 130661

Wireless, Room, Temp \& Override

Product Details

Wireless, Room, Temp \& Override

Sensor Options	Temperature and Override
Transmission Interval	75 seconds

Accuracy	+/- 1ºF (+/- 0.555ºC) 12 bit resolution
Battery Life	2-3 years typical
Data Protocol	IEEE 802.15.4-2003/2006
Input Voltage	Battery; 1 (Duracell DL123A), Lithium 3V 1400 mAh 45 mA maximum
Product Weight	Room: 0.30 lbs (0.14 kg) \| Ruggedized Enclosure: 0.35 lbs (0.16 kg)
Data Transmission	75 seconds (default) \| 300 seconds (optional)
Product Dimensions	Room: (L) 4.50” (114.30 mm) x (W) 2.75” (69.85 mm) x (H) 1.12” (28.45 mm) Ruggedized Enclosure: (L) 4.25” (107.95 mm) x (W) 2.63” (66.80 mm) x (H) 1.24” (31.50 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11 dBm
Transmission Distance	200 – 300 ft horizontally depending on building type and construction, and typically one floor above and below the transceiver vertically
Operating Humidity Range	5 to 65%, Non-condensing
Operating Temperature Range	32 to 104º F (0 to 40ºC)
Storage Temperature \| RH Range	40 to 122ºF (4 to 50ºC) \| 5 to 65% RH, Non-condensing
Enclosure Material \| Flammability Rating	Room: ABS Plastic \| UL 94 HB \| Ruggedized Enclosure: ABS Plastic \| UL94-5VA
