ACI DT2630AE-04

Name: ACI DT2630AE-04
Brand: ACI
SKU: CS6287073
Availability: OutOfStock

SKU: CS6287073MPN: DT2630AE-04Alternate Part #: 131027

Wireless, Temp, Duct, 4”, NEMA 4X Enclosure

Product Details

Wireless, Temp, Duct, 4”, NEMA 4X Enclosure

Product Configuration

Enclosure	NEMA 4X
Insertion Length	4”

Product Family Specifications

Accuracy	+/- 1ºF (+/- 0.555ºC) 12 bit resolution
Battery Life	2-3 years typical
Probe Length	4”, 6”, 8”, 12” \& 18”
Data Protocol	IEEE 802.15.4-2003/2006
Input Voltage	Battery; 1 (Duracell DL123A), Lithium 3V 1400mAh 45 mA maximum
Probe Diameter	0.25” (6.35 mm)
Probe Material	304 Stainless Steel
Product Weight	DT2630A-04: 0.99 lbs (0.45 kg) DT2630AE-04: 2.82 lbs (1.28 kg) DT2630A-06: 1.00 lbs (0.45 kg) DT2630AE-06: 2.83 lbs (1.28 kg) DT2630A-08: 1.01 lbs (0.46 kg) DT2630AE-08: 2.84 lbs (1.29 kg) DT2630A-12: 1.03 lbs (0.47 kg) DT2630AE-12: 2.86 lbs (1.30 kg) DT2630A-18: 1.05 lbs (0.48 kg) DT2630AE-18: 2.88 lbs (1.31 kg)
Data Transmission	75 seconds (default) \| 300 seconds (optional)
Operating RH Range	5 to 65%, Non-condensing

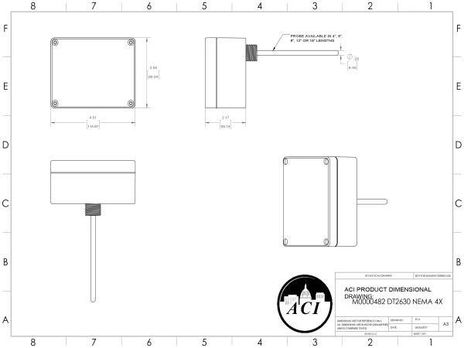

Product Dimensions	Standard: (L) 5.77” (146.56 mm) x (W) 3.19” (81.03 mm) x (H) 1.88” (47.75 mm) NEMA 4X: (L) 4.52” (114.81 mm) x (W) 3.54” (89.92 mm) x (H) 2.16” (54.86 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11 dBm
Transmission Distance	200 – 300 ft horizontally depending on building type and construction, and typically one floor above and below the transceiver vertically
Storage Temperature Range	Temperature: 0 to 176ºF (-17 to 80ºC) \| Humidity: 5 to 65%, Non-condensing
Operating Temperature Range	14 to 140ºF (-10 to 60ºC)
Sensor Operating Temperature Range	-40 to 200ºF (-40 to 93ºC)
Fitting Material \| Flammability Rating	ST801A Polyamide 66 Plastic (PA66) toughened “Zytel”, UL94-HB
Enclosure Material \| Flammability Rating	Standard: ABS Plastic \| UL94 NEMA 4X: Polycarbonate Plastic \| UL94-HB
