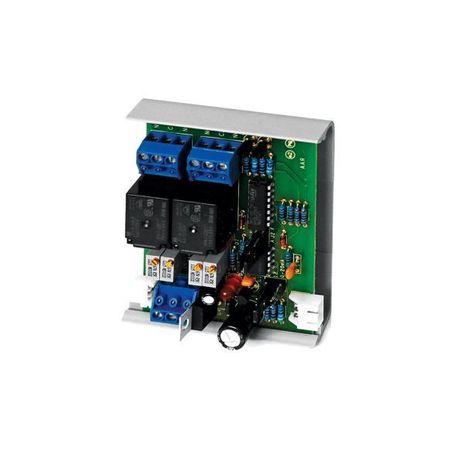

ACI AAR

SKU: CS2231875MPN: AARAlternate Part #: 101785

Analog Input, Relay Output, 2 (SPDT) Relays, Adjustable

Product Details

Analog Input, Relay Output, 2 (SPDT) Relays, Adjustable

Deadband	Fixed or Adjustable – Jumper Selectable
Wire Size	16 (1.31 mm2) to 26 AWG (0.129 mm2)
Connections	90° Pluggable Screw Terminal Blocks
Edge Connector	Connect six AARs together using one connection, more if power is jumpered to every sixth AAR
Product Weight	0.25 lbs. (0.113 Kg)
Supply Current	45 mA maximum
Supply Voltage	24 VAC or 24VDC, (+/- 10%), 50/60 Hz
Agency Approvals	RoHS2, WEEE

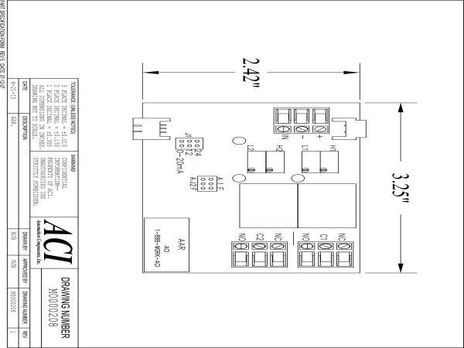

Product Dimensions	(L) 3.25” (W) 2.42” (H) 1.00” (82.55 x 61.47 x 25.4 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Digital Output Type	Two SPDT Form “C” Relays
Relay Contact Rating	10A @ 120 VAC / 24VAC, 5A @ 240VAC
Relay Electrical Life	100,000 operations minimum
Relay Mechanical Life	10,000,000 operations
Operating Humidity Range	10 to 95% non-condensing
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Snaptrack Flammability Rating	UL94 V-0
Input Current Signal Range (@ Impedance)	0-20 mA @ 499Ω
Input Voltage Signal Range (@ Impedance)	0 to 12 VDC @ 1MΩ, 0 to 24 VDC @ 20,000Ω
