PWM/Analog/Floating Point Input to Resistance Output, Selectable Resistance Network

Product Details

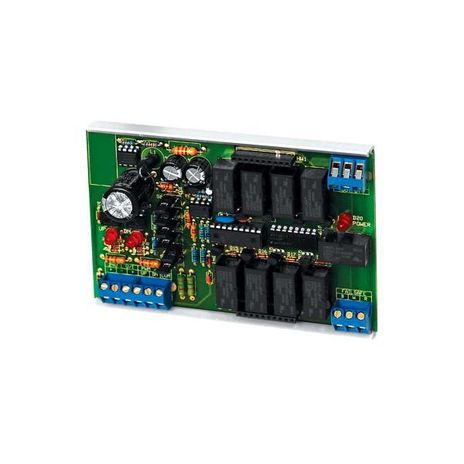

PWM/Analog/Floating Point Input to Resistance Output, Selectable Resistance Network

Input	Analog Input
Input Pulse Range (Seconds)	Selectable timing up to 25 sec

Wire Size	12 (3.31 mm2) to 22 AWG (0.33 mm2)
Resolution	256 Steps (No wrap around)
Connections	45° Captive screw Terminal Blocks
Product Weight	0.45 lbs. (0.2041 Kg)
Supply Current	250 mA maximum
Supply Voltage	24 VAC +/- 10%, 24 VDC +25% / -8%
Agency Approvals	RoHS2, WEEE
Input Pulse Source	Relay Contact Closure, Transistor, Triac
Operating RH Range	10 to 95% non-condensing

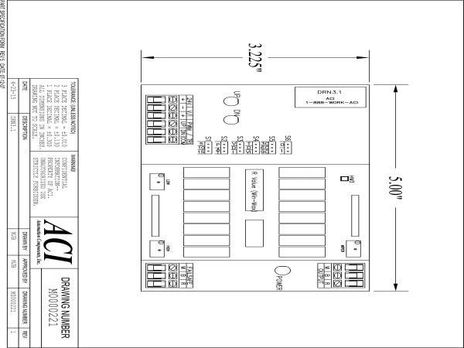

Product Dimensions	(L) 5.00” (W) 3.23” (H) 1.00” (127.00 x 81.99 x 25.40 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Digital Output Type	Form “C” Relays
Relay Contact Rating	2A @ 24 VDC, 0.5A @ 240 VAC
Relay Electrical Life	100,000 operation @ 1A
Relay Mechanical Life	10,000,000 operations
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Snaptrack Flammability Rating	UL94 V-0
Input Pulse Trigger Level (@ Impedance)	7-30 VDC, 10-26.4 VAC @ 750Ω
Input Current Signal Range (@ Impedance)	0-20 mA, 4 to 20 mA @ 250Ω
Input Voltage Signal Range (@ Impedance)	0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC, 2 to 10 VDC, 0 to 15 VDC, 3 to 15 VDC @ 10,000Ω
Floating Point / Tri-State Rates of Change	See Ordering Grid
Floating Point / Tri-State Input Signal Trigger Level	5-24 VDC/VAC
