Eaton E50AL1

Name: Eaton E50AL1
Brand: Eaton
SKU: CS581667
Availability: OutOfStock

SKU: CS581667MPN: E50AL1UPC/EAN: 782113307411

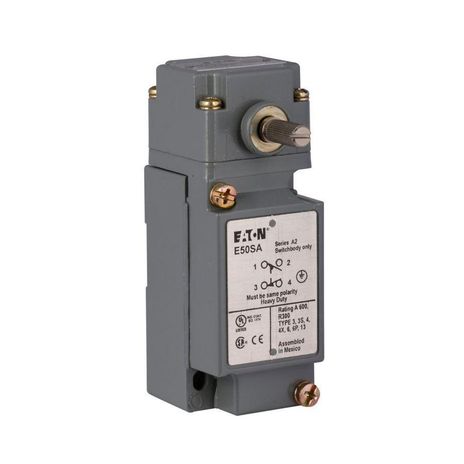

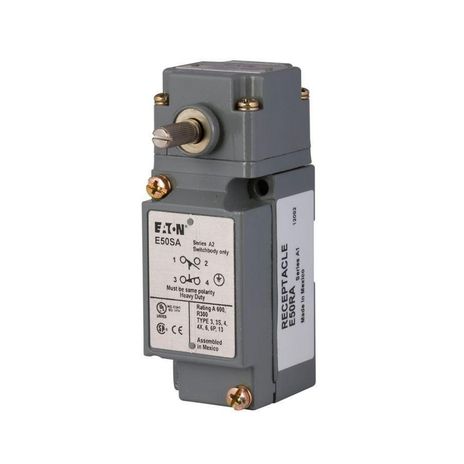

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AL1, E50AR1, E50BM1, E50BR1, E50NN1, E50NN1SPL, E50NN2

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 240 Vac,1A at 250 Vdc,E50DL1,E50DL1,Side rotary,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A continuous,1A,10° to 200°F,E50 Heavy Duty Plug In

Attributes

Accessories	E50DL1
Actuator	Side rotary
Connection	Screw terminal
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 240 Vac, 1A at 250 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current	10 A continuous
Maximum Dc Current	1 A
Operating Temperature Max	200 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	10 FAH
Operating Temperature Min Uom	FAH
Series	E50 heavy duty plug in
Type	Assembly
