Eaton E50SA

Name: Eaton E50SA
Brand: Eaton
SKU: CS77371
Price: 119.04 USD
Availability: InStock

SKU: CS77371MPN: E50SAAlternate Part #s: E50SAEAT-E50SAUPC/EAN: 782113290676

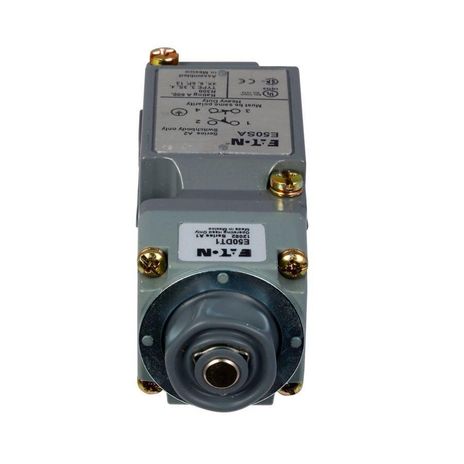

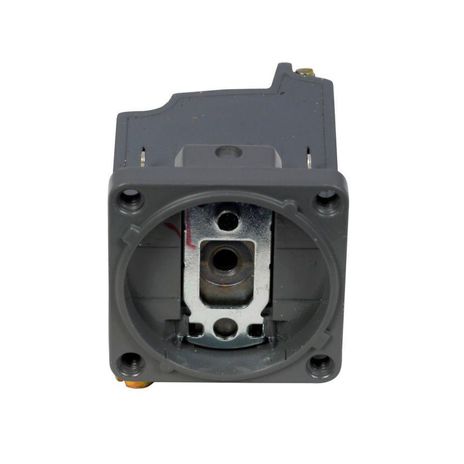

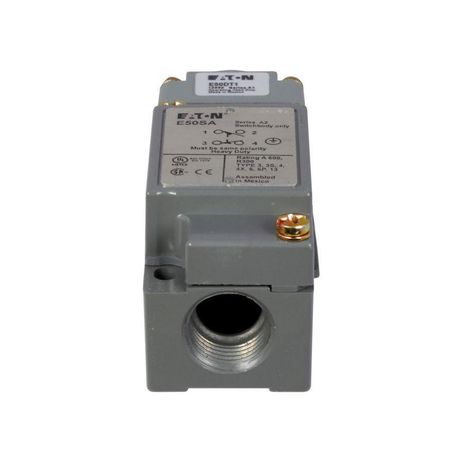

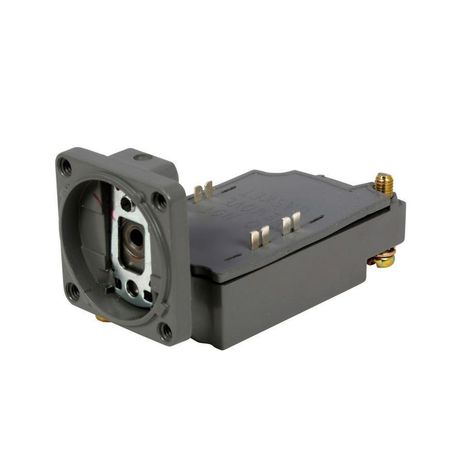

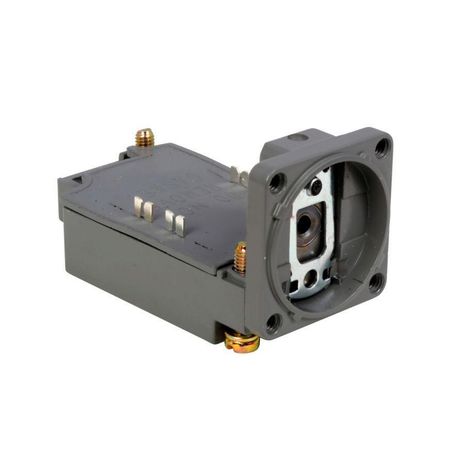

Eaton E50 NEMA heavy duty plug-in limit switch

$119.04

Unit

9 in stock

Quantity

remove

add

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch, 10A at 12 Vac, 1A at 125 Vdc, 1NO-1NC, Die cast zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, 10A, 1A, Single-pole, -40° to 250°F (-40° to 121°C), E50 Heavy Duty Plug In

Attributes

Contact Configuration	1 NO-1 NC
Contact Rating	10A at 12 Vac, 1A at 125 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Number Of Poles	Single-pole
Operating Temperature Max	250 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Series	E50 heavy duty plug in
