Eaton E50AM1

Name: Eaton E50AM1
Brand: Eaton
SKU: CS287523
Availability: OutOfStock

SKU: CS287523MPN: E50AM1UPC/EAN: 782113343921

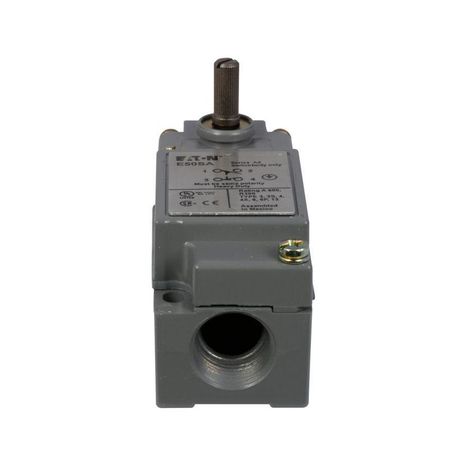

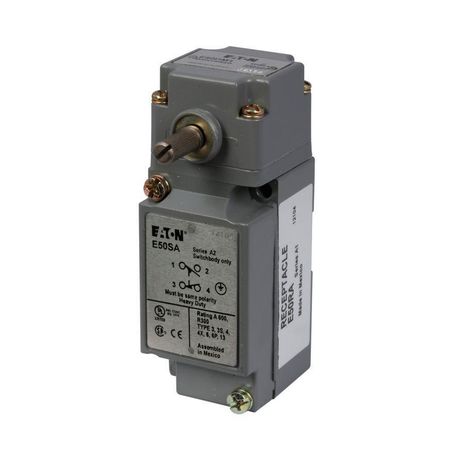

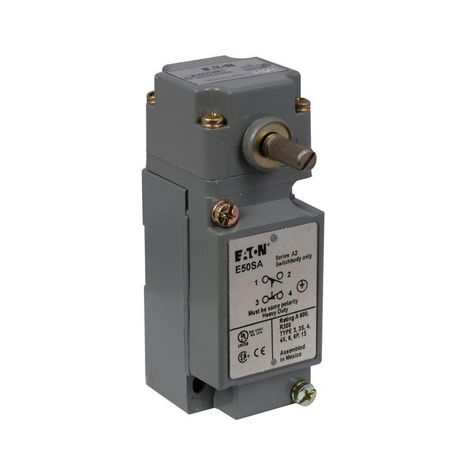

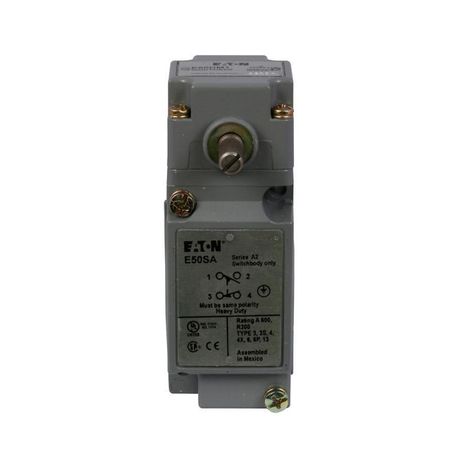

Eaton E50 NEMA heavy duty plug-in limit switch

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10Aat240 Vac,1Aat250 Vdc,Side rotary,Maintnd two-position,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A contin,1A,14°to201°F(-10°to94°C)

Attributes

Actuator	Side rotary, maintained two-position
Connection	Screw terminal
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 240 Vac, 1A at 250 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current	10 A continuous
Maximum Dc Current	1 A
Operating Temperature Max	201 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	14 FAH
Operating Temperature Min Uom	FAH
Series	E50 heavy duty plug in
Type	Assembly
