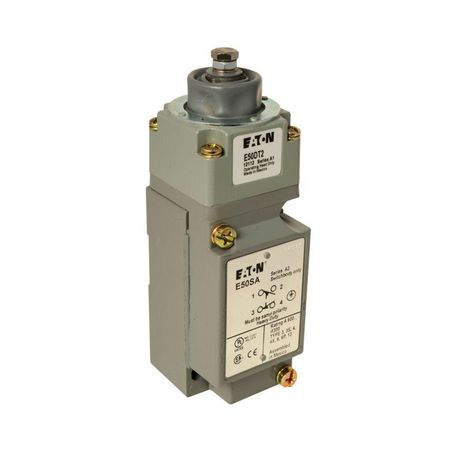

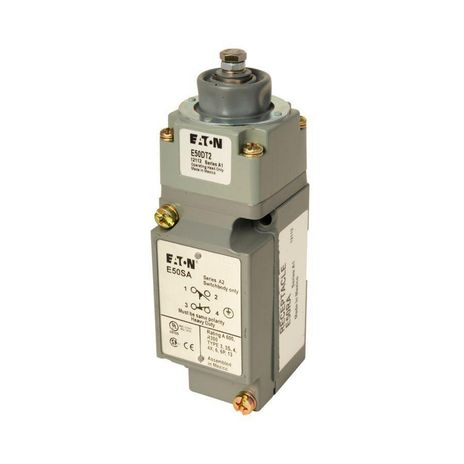

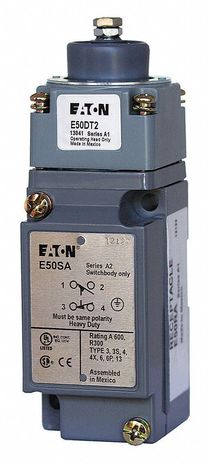

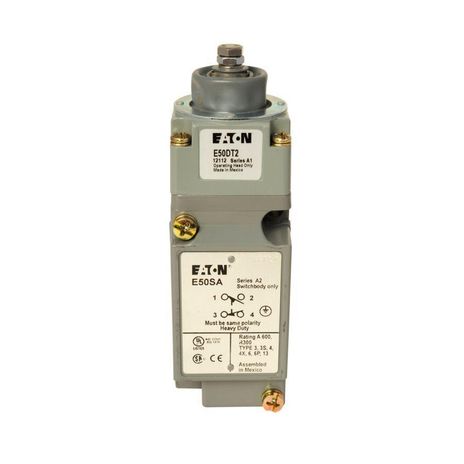

Eaton E50AT2
SKU: CS153218MPN: E50AT2UPC/EAN: 782113307428
Eaton E50 NEMA heavy duty plug-in limit switch
Contact us for pricing and availability
Product Details
Eaton E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 240Vac,1A at 250Vdc,E50DT2,E50DT2,Top Pushbuttn,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A contin,1A,14°to201°F,E50 Heavy Duty Plug In
Attributes
| Accessories | E50DT2 |
| Actuator | Top pushbutton |
| Connection | Screw terminal |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 10A at 240 Vac, 1A at 250 Vdc |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Maximum Ac Current | 10 A continuous |
| Maximum Dc Current | 1 A |
| Operating Temperature Max | 201 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 14 FAH |
| Operating Temperature Min Uom | FAH |
| Series | E50 heavy duty plug in |
| Type | Assembly |
Specifications
| SKU | CS153218 |
|---|---|
| MPN | E50AT2 |
| UPC/EAN | 782113307428 |
You may also like
Eaton E50AT1
Contact us for pricing and availability
Eaton E50AW2
Contact us for pricing and availability
Eaton E50SA
$119.04Unit
Eaton E50ALS3
Contact us for pricing and availability
Eaton E50SBN
$319.19Unit

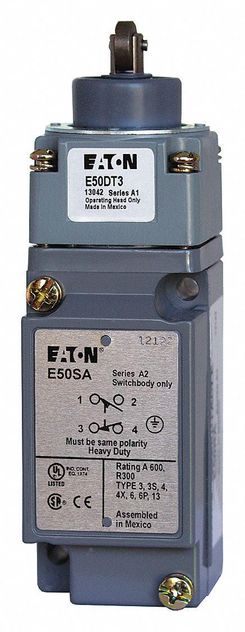

Eaton E50AT3
Contact us for pricing and availability
Eaton E50SB
$237.40Unit

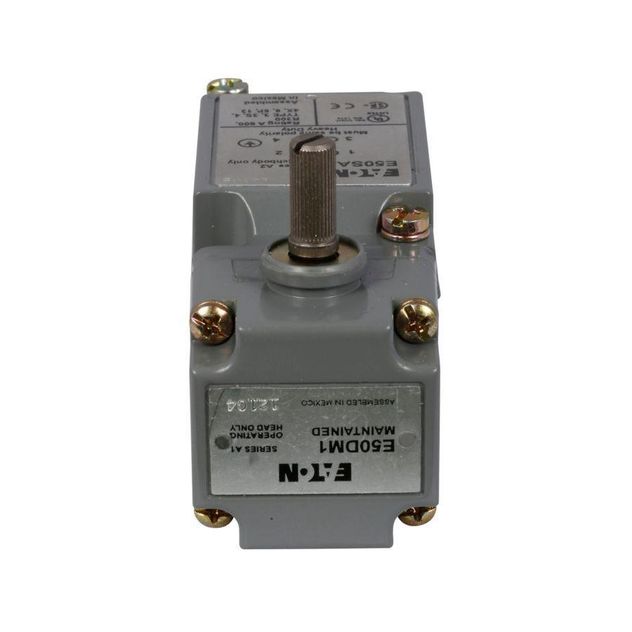

Eaton E50AM1
Contact us for pricing and availability

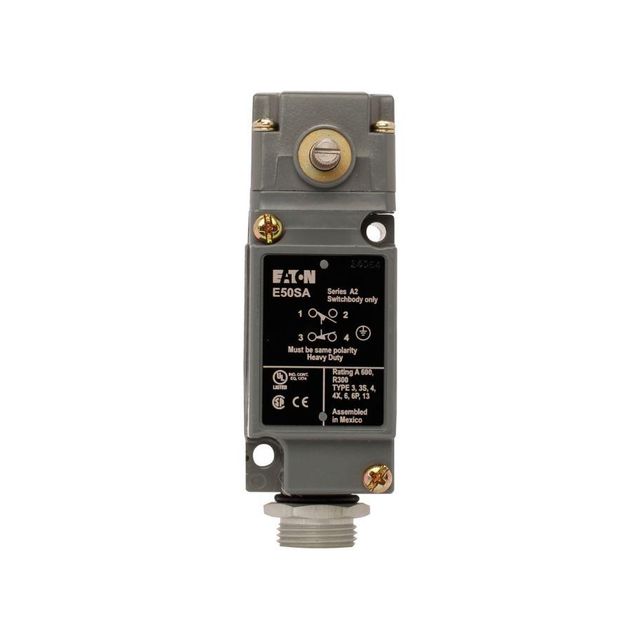

Eaton E50AR1P5
