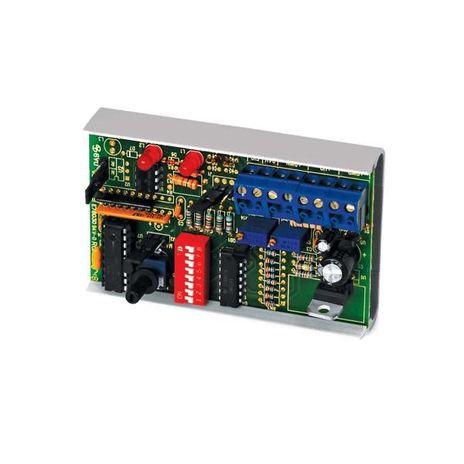

Pulse Width Modulation Input (0.1 to 10 sec), Analog Output, (0.02 to 5, 0.59 to 2.93, 0.1 to 25.5s Selectable)

Product Details

Pulse Width Modulation Input (0.1 to 10 sec), Analog Output, (0.02 to 5, 0.59 to 2.93, 0.1 to 25.5s Selectable)

Product Configuration

Analog Output	Field Selectable Analog Output
Input Rate Of Change	Selectable timing up to 25 sec

Product Family Specifications

Accuracy	PTA:+/- 2% of span for adjustable ranges, 5% for preset (60 Hz) PTA:+/- 3% of span for adjustable ranges, 5% for preset (50 Hz) PTA2: +/- 5%
Wire Size	16 (1.31 mm2) to 26 AWG (0.129 mm2)
Resolution	256 steps of resolution
Connections	90° Pluggable Screw Terminal Blocks
Product Weight	PTA: 0.24 lbs. (0.1077 Kg) PTA2: 0.18 lbs. (0.082 Kg)
Supply Current	240 mA maximum using Voltage Output Terminal 125 mA maximum if not using Voltage Output Terminal
Supply Voltage	24 VDC (24-35 VDC) or 24 VAC (21.6-26.4 VAC), 50/60 Hz
Agency Approvals	RoHS2, WEEE
Input Pulse Source	Relay Contact Closure, Transistor or Triac
Operating RH Range	10 to 95% non-condensing
Product Dimensions	PTA: (L) 3.75” (W) 2.20” (H) 1.15” (95.25 x 55.88 x 29.21 mm) PTA2: (L) 2.20” (W) 2.35” (H) 1.00” (55.88 x 59.69 x 25.4 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Output Current Impedance	PTA Only: 0 to 750Ω maximum
Output Voltage Impedance	PTA Only: 3300Ω minimum at 20 VDC +/- 10% \| 400Ω minimum at 10 VDC +/- 10%
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Regulated Power Output (User)	24 VDC, 48 mA maximum
Snaptrack Flammability Rating	UL94 V-0
Output Current Fixed Signal Ranges	PTA Only: 0-16 mA, 4-20 mA
Input Pulse Trigger Level (@ Impedance)	Normal Mode \= 5 to 26.4 VAC/DC \| Triac Mode \= 9 to 26.4VAC
Output Current Adjustable Signal Ranges	PTA Only: 0-20 mA (with adjustable offset)
Output Voltage Adjustable Signal Ranges	PTA Only: 0-20 VDC (with adjustable offset)
Output Voltage Signal Range (@ Impedance)	PTA: 0-1 VDC \| 0-4 VDC \| 0-10 VDC \| 0-13 VDC \| 1-2 VDC \| 1-5 VDC \| 1-11 VDC \| 1-14 VDC PTA2: 0-10 VDC @ 400 ohms minimum
